Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 Chevrolet TrailBlazer, and 2004 Buick Rainier. However, it is still accessible from the selected car via links, so may be relevant.

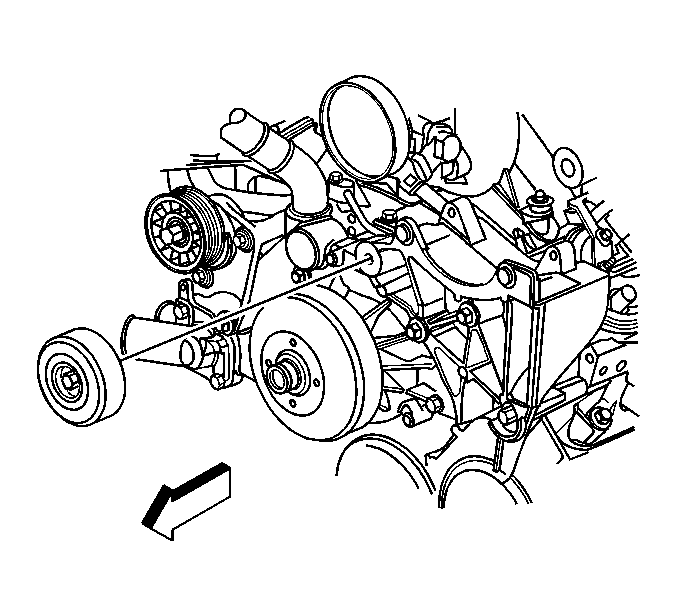

    Fig 1: View Of Accessory Drive Belt Idler Pulley
    GM898137Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the drive belt idler pulley and bolt to the generator bracket.

    Tighten:  Tighten the bolt to 50 N.m (37 lb ft).

  2. Install the drive belt. Refer to Drive Belt Replacement - Accessory  .
