Valve Lifter Installation

WARNING: This page is about a different car, the 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 Chevrolet TrailBlazer, and 2004 Buick Rainier. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Valve Lifters & Lifter Guides
    GM63233Courtesy of GENERAL MOTORS CORP.
    IMPORTANT:
    • When using the valve lifters again, install the lifters to their original locations.
    • If camshaft replacement is required, the valve lifters must also be replaced.
  1. Lubricate the valve lifters and engine block valve lifter bores with clean engine oil.
  2. Insert the valve lifters into the lifter guides.

    Align the flat area on the top of the lifter with the flat area in the lifter guide bore. Push the lifter completely into the guide bore.

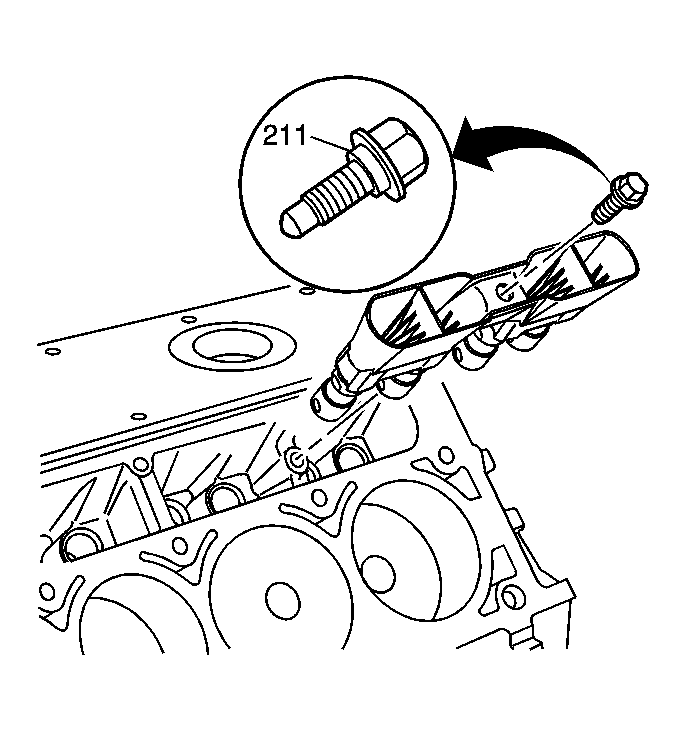

    3. Fig 2: View Of Valve Lifters, Guide & Guide Bolts
    GM1272826Courtesy of GENERAL MOTORS CORP.
  3. Install the valve lifters and guide assembly to the engine block.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the valve lifter guide bolt (211).

    Tighten:  Tighten the valve lifter guide bolt to 12 N.m (106 lb in).
