Oil Level Indicator and Tube Installation

WARNING: This page is about a different car, the 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 Chevrolet TrailBlazer, and 2004 Buick Rainier. However, it is still accessible from the selected car via links, so may be relevant.

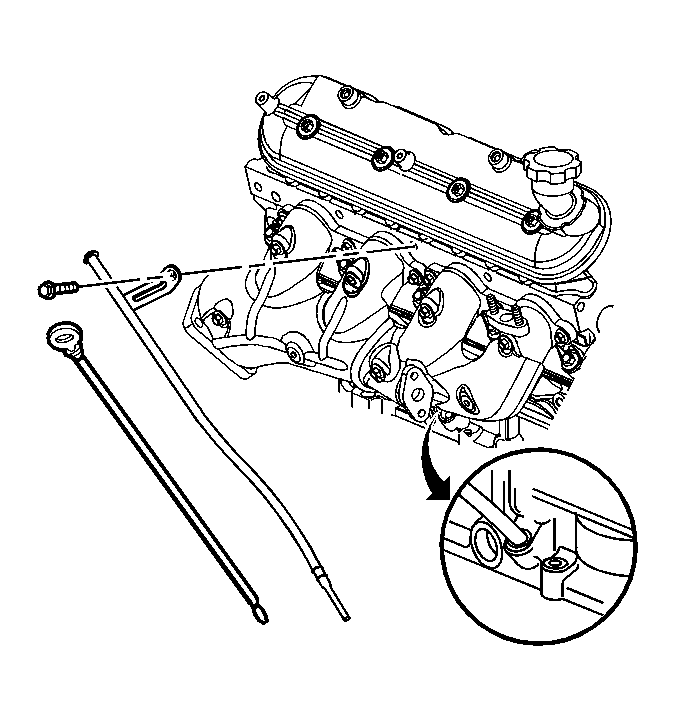

    Fig 1: View Of Oil Level Indicator, Tube & Bolt
    GM825867Courtesy of GENERAL MOTORS CORP.
  1. Inspect the O-ring seal for cuts or damage. If the oil level indicator tube O-ring seal is not cut or damaged, it may be used again.
  2. Lubricate the O-ring seal with clean engine oil.
  3. Install the O-ring seal onto the oil level indicator tube.
  4. Install the oil level indicator tube into the engine block and rotate into proper position.
    5. NOTE: Refer to Fastener Notice in Cautions and Notices.
  5. Install the tube bolt.

    Tighten:  Tighten the oil level indicator tube bolt to 25 N.m (18 lb ft).

  6. Install the oil level indicator into the tube.
