Engine Rear Cover Removal

WARNING: This page is about a different car, the 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 Chevrolet TrailBlazer, and 2004 Buick Rainier. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Rear Cover, Bolts & Gasket
    GM64282Courtesy of GENERAL MOTORS CORP.
  1. Remove the rear cover bolts.
  2. Remove the rear cover and gasket.
  3. Discard the rear cover gasket.

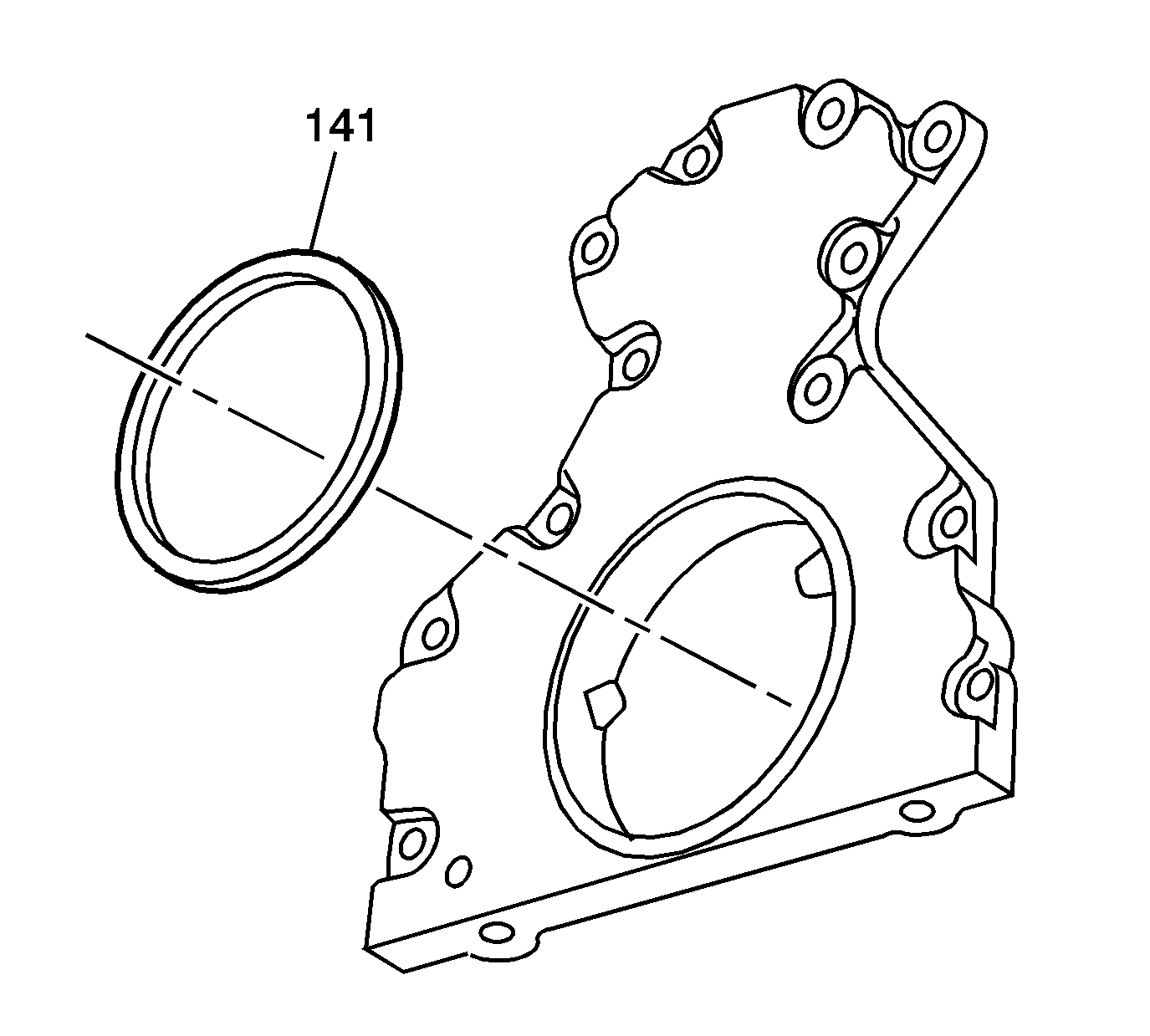

    4. Fig 2: View Of Crankshaft Rear Oil Seal
    GM1272844Courtesy of GENERAL MOTORS CORP.
  4. Remove the crankshaft rear oil seal (141) from the cover.
