Engine Flywheel Removal

WARNING: This page is about a different car, the 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 Chevrolet TrailBlazer, and 2004 Buick Rainier. However, it is still accessible from the selected car via links, so may be relevant.

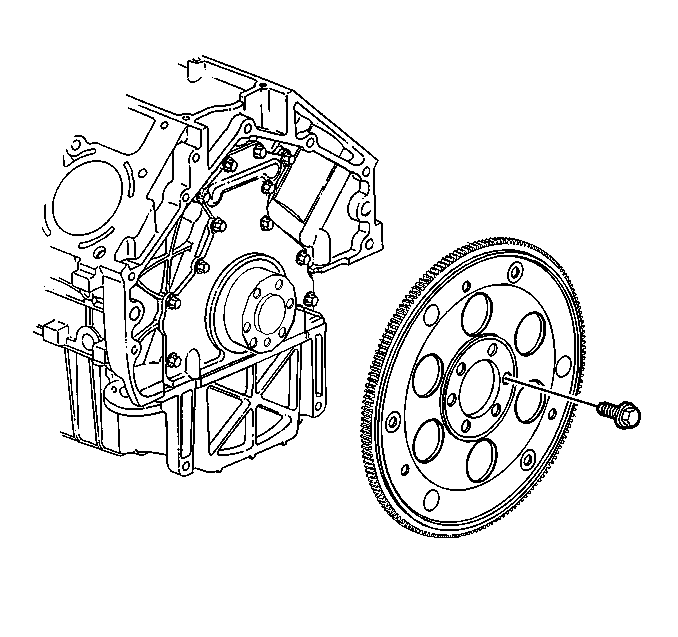

    Fig 1: View Of Engine Flywheel & Bolt
    GM178458Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The flywheel does not use a locating pin for alignment and will not initially seat against the crankshaft flange or spacer, if applicable, but will be pulled onto the crankshaft by the engine flywheel bolts. This procedure requires a three stage tightening process.
  1. Remove the engine flywheel bolts.
  2. Remove the automatic transmission engine flywheel.
