Cylinder Head - Top View

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

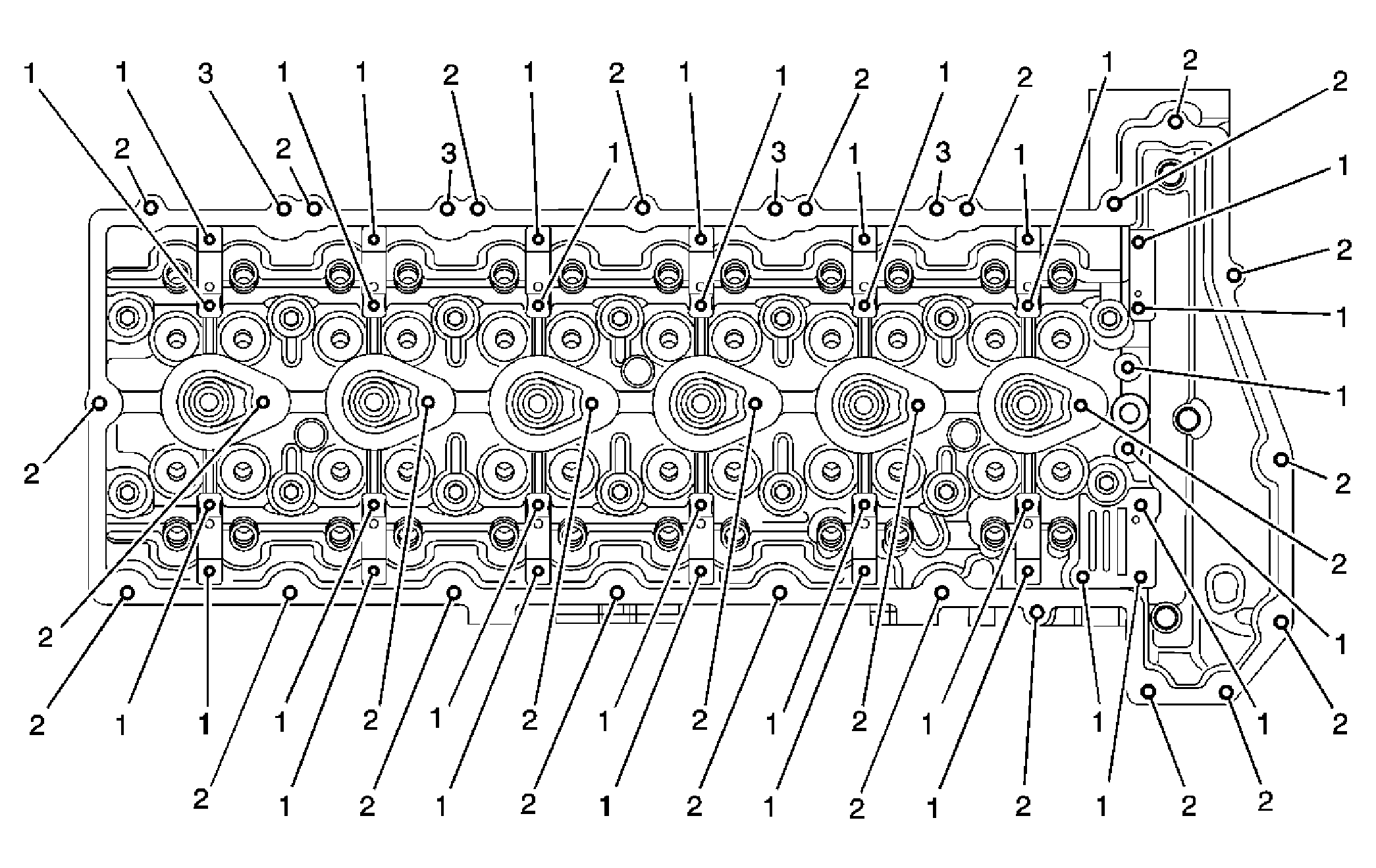

Fig 1: Cylinder Head - Top View

Courtesy of GENERAL MOTORS CORP.

Service Hole Location	Thread Size	Drill	Counterbore Tool	Stop Collar	Tap	Driver	Insert	Drill Depth (Max)		Tap Depth (Min)
-								mm	(in)	mm	(in)
1	M 6 x 1	405	n/a	406	203	204	205	28	1.103	24	0.945
2	M 6 x 1	201	202	n/a	203	204	205	22	0.866	18	0.709
3	M 6 x 1	405	n/a	406	203	204	205	28	1.103	24	0.945
4	M 6 x 1	405	n/a	407	203	204	205	THRU		THRU
5	M 6 x 1	201	202	n/a	203	204	205	22	0.866	18	0.709
6	M 6 x 1	405	n/a	406	203	204	205	28	1.103	24	0.945
7	M 6 x 1	405	n/a	406	203	204	205	28	1.103	24	0.945
8	M 6 x 1	405	n/a	407	203	204	205	THRU		THRU
9	M 6 x 1	201	202	n/a	203	204	205	22	0.866	18	0.709
10	M 6 x 1	405	n/a	406	203	204	205	28	1.103	24	0.945
11	M 6 x 1	405	n/a	406	203	204	205	28	1.103	24	0.945
12	M 6 x 1	201	202	n/a	203	204	205	22	0.866	18	0.709
13	M 6 x 1	405	n/a	406	203	204	205	28	1.103	24	0.945
14	M 6 x 1	405	n/a	406	203	204	205	28	1.103	24	0.945
15	M 6 x 1	405	n/a	407	203	204	205	THRU		THRU
16	M 6 x 1	201	202	n/a	203	204	205	22	0.866	18	0.709
17	M 6 x 1	405	n/a	406	203	204	205	28	1.103	24	0.945
18	M 6 x 1	405	n/a	406	203	204	205	28	1.103	24	0.945
19	M 6 x 1	405	n/a	407	203	204	205	THRU		THRU
20	M 6 x 1	201	202	n/a	203	204	205	22	0.866	18	0.709
21	M 6 x 1	405	n/a	406	203	204	205	28	1.103	24	0.945
22	M 6 x 1	405	n/a	406	203	204	205	28	1.103	24	0.945
23	M 6 x 1	201	202	n/a	203	204	205	22	0.866	18	0.709
24	M 6 x 1	201	202	n/a	203	204	205	22	0.866	18	0.709
25	M 6 x 1	405	n/a	406	203	204	205	28	1.103	24	0.945
26	M 6 x 1	201	202	n/a	203	204	205	22	0.866	18	0.709
27	M 6 x 1	405	n/a	406	203	204	205	28	1.103	24	0.945
28	M 6 x 1	405	n/a	406	203	204	205	28	1.103	23	0.906
29	M 6 x 1	201	202	n/a	203	204	205	22	0.866	18	0.709
30	M 6 x 1	201	202	n/a	203	204	205	23	0.906	19	0.748
31	M 6 x 1	405	n/a	406	203	204	205	28	1.103	23	0.906
32	M 6 x 1	201	202	n/a	203	204	205	22	0.866	18	0.709
33	M 6 x 1	405	n/a	406	203	204	205	28	1.103	24	0.945
34	M 6 x 1	201	202	n/a	203	204	205	22	0.866	18	0.709
35	M 6 x 1	201	202	n/a	203	204	205	22	0.866	18	0.709
36	M 6 x 1	405	n/a	406	203	204	205	28	1.103	24	0.945
37	M 6 x 1	405	n/a	406	203	204	205	28	1.103	24	0.945
38	M 6 x 1	201	202	n/a	203	204	205	22	0.866	18	0.709
39	M 6 x 1	405	n/a	406	203	204	205	28	1.103	24	0.945
40	M 6 x 1	405	n/a	406	203	204	205	28	1.103	24	0.945
41	M 6 x 1	201	202	n/a	203	204	205	22	0.866	18	0.709
42	M 6 x 1	201	202	n/a	203	204	205	23	0.906	19	0.748
43	M 6 x 1	405	n/a	406	203	204	205	28	1.103	24	0.945
44	M 6 x 1	405	n/a	406	203	204	205	28	1.103	24	0.945
45	M 6 x 1	201	202	n/a	203	204	205	22	0.866	18	0.709
46	M 6 x 1	201	202	n/a	203	204	205	23	0.906	19	0.748
47	M 6 x 1	405	n/a	406	203	204	205	28	1.103	24	0.945
48	M 6 x 1	405	n/a	406	203	204	205	28	1.103	24	0.945
49	M 6 x 1	201	202	n/a	203	204	205	22	0.866	18	0.709
50	M 6 x 1	201	202	n/a	203	204	205	23	0.906	19	0.748
51	M 6 x 1	405	n/a	406	203	204	205	28	1.103	24	0.945
52	M 6 x 1	405	n/a	406	203	204	205	28	1.103	24	0.945
53	M 6 x 1	201	202	n/a	203	204	205	22	0.866	18	0.709
54	M 6 x 1	201	202	n/a	203	204	205	23	0.906	19	0.748
55	M 6 x 1	405	n/a	406	203	204	205	28	1.103	24	0.945
56	M 6 x 1	405	n/a	406	203	204	205	28	1.103	24	0.945
57	M 6 x 1	201	202	n/a	203	204	205	22	0.866	18	0.709
58	M 6 x 1	405	n/a	406	203	204	205	28	1.103	24	0.945
59	M 6 x 1	405	n/a	406	203	204	205	28	1.103	24	0.945
60	M 6 x 1	201	202	n/a	203	204	205	22	0.866	18	0.709
61	M 6 x 1	201	202	n/a	203	204	205	23	0.906	19	0.748
62	M 6 x 1	201	202	n/a	203	204	205	22	0.866	18	0.709
