Crankshaft Rear Oil Seal Housing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

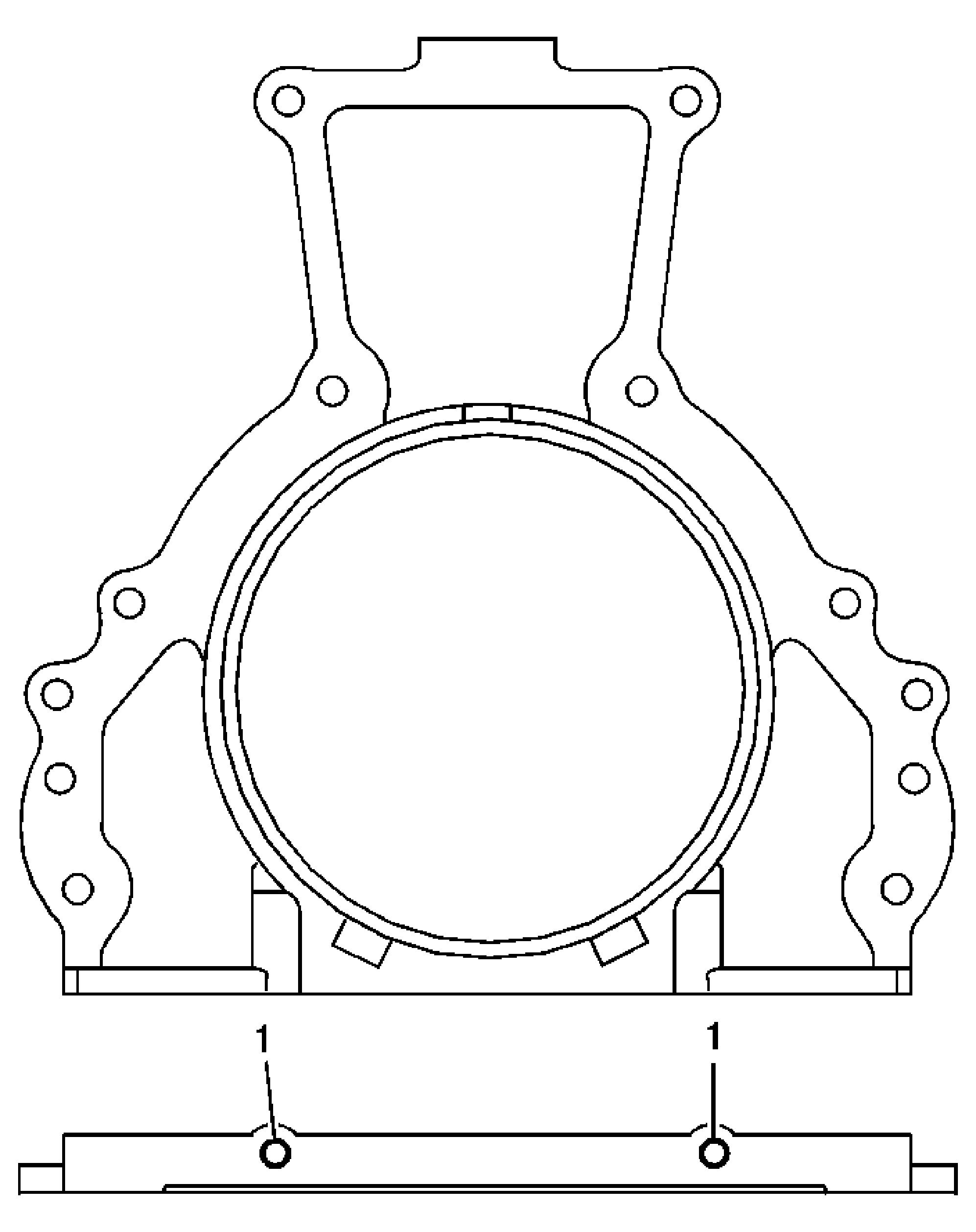

Fig 1: Crankshaft Rear Oil Seal Housing

Courtesy of GENERAL MOTORS CORP.

Service Hole Location	Thread Size	Drill	Counterbore Tool	Stop Collar	Tap	Driver	Insert	Drill Depth (Max)		Tap Depth (Min)
-								mm	(in)	mm	(in)
1	M 6 x 1	201	202	n/a	203	204	205	22	0.866	18	0.709
2	M 6 x 1	201	202	n/a	203	204	205	22	0.866	18	0.709
