Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

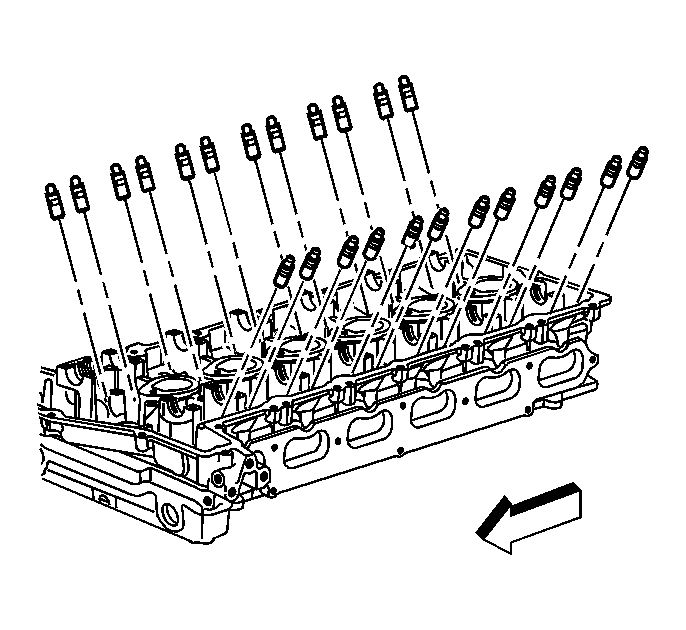

Fig 1: View Of Valve Lash Adjusters

Courtesy of GENERAL MOTORS CORP.

Lubricate and fill the valve lash adjusters with engine oil.
Install the valve lash adjusters in their original locations.

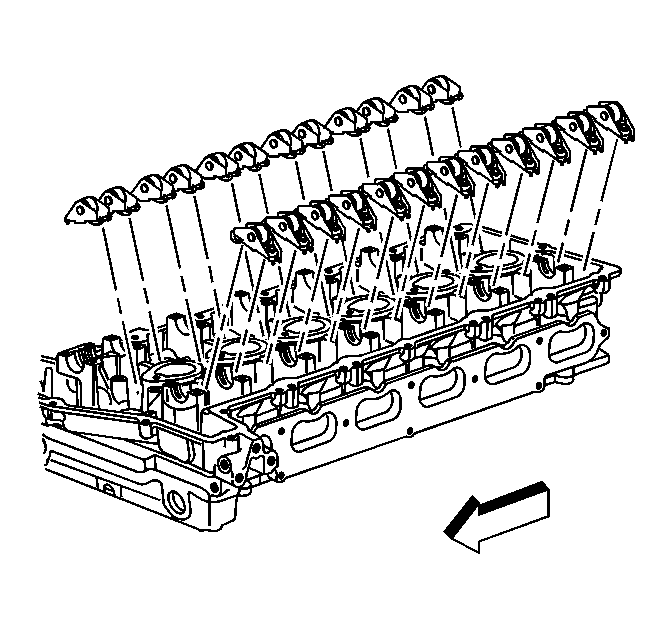

Fig 2: View Of Valve Rocker Arms

Courtesy of GENERAL MOTORS CORP.

Lubricate the valve rocker arm roller.
Install the valve rocker arms in their original locations.
Coat the camshaft journals with engine oil.

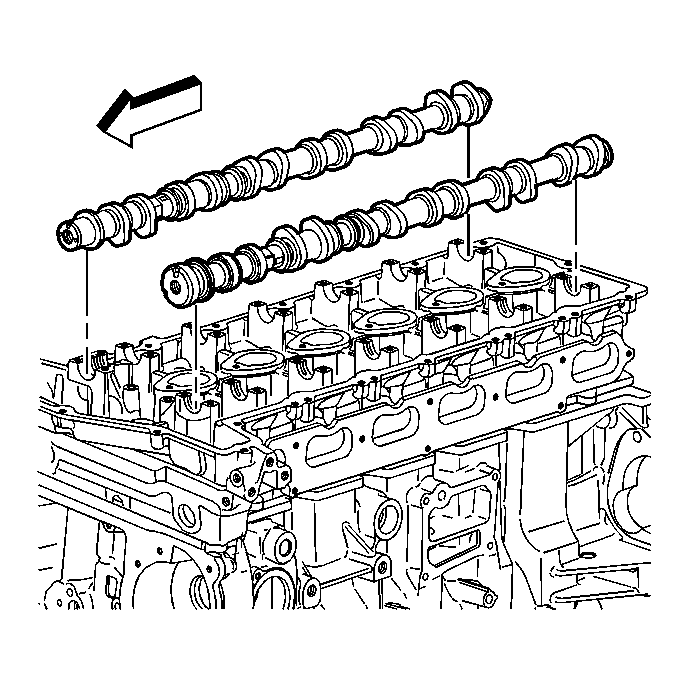

Fig 3: Identifying Camshafts

Courtesy of GENERAL MOTORS CORP.

Install the camshafts to their original position

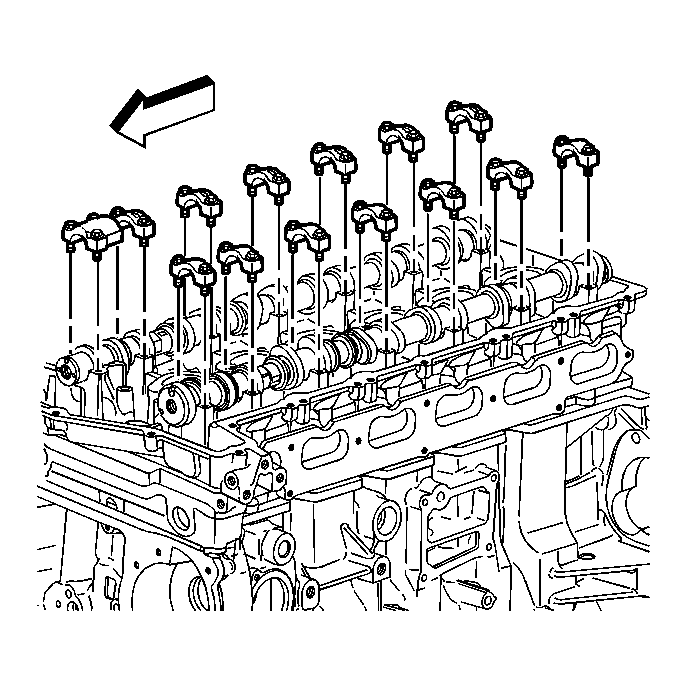

Fig 4: Installing Camshaft Retainer Caps

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the camshaft caps onto their original journal.
Tighten: Tighten the camshaft cap bolts to 12 N.m (106 lb in).

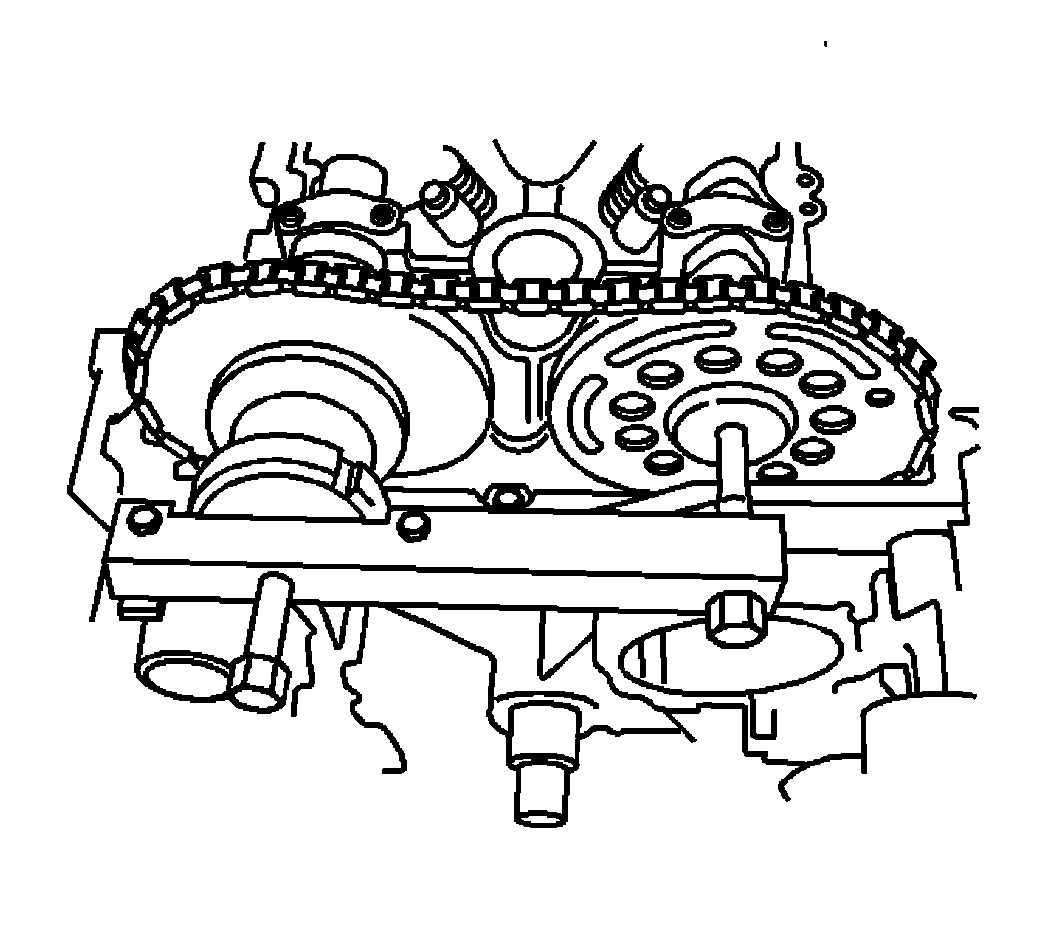

Fig 5: View Of J 44222 Installed Onto Cylinder Head

Courtesy of GENERAL MOTORS CORP.

Carefully move the camshaft sprockets back onto the camshafts and remove the J 44222 . See Special Tools and Equipment .
Install the intake camshaft sprocket washer, and the bolt, and the exhaust camshaft actuator bolt.
Tighten:
- Tighten the intake camshaft sprocket bolt the first pass 20 N.m (15 lb ft).
- Use the J 36660-A to tighten the intake camshaft sprocket bolt the final pass and additional 100 degrees.
- Tighten the exhaust camshaft actuator bolt the first pass to 25 N.m (18 lb ft).
- Use the J 36660-A to tighten the exhaust camshaft actuator bolt a final pass an additional 135 degrees.
Install the camshaft cover. Refer to Camshaft Cover Replacement .
