Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

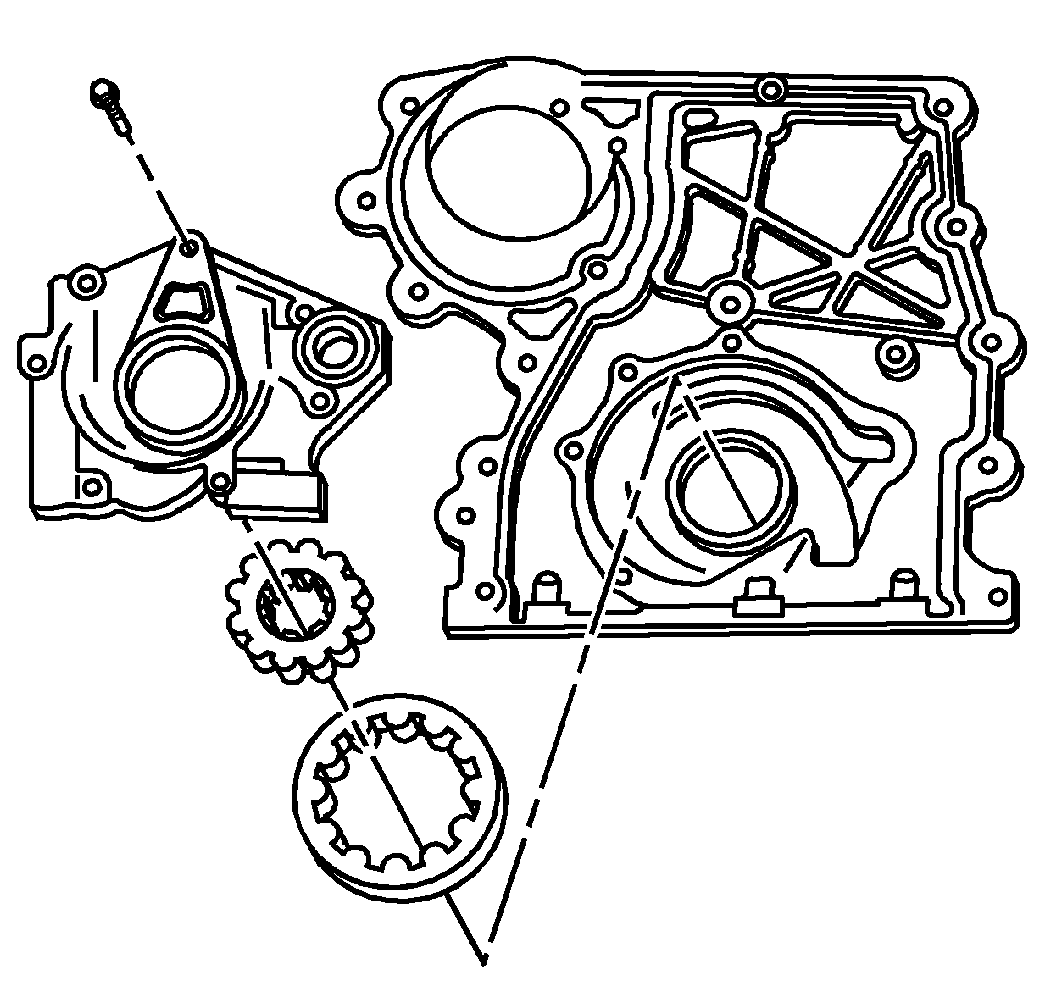

    Fig 1: Exploded View Of Oil Pump
    GM659575Courtesy of GENERAL MOTORS CORP.
  1. Install the oil pump pressure relief valve and the spring.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the oil pump pressure relief valve plug.

    Tighten:  Tighten the oil pump pressure relief valve to 14 N.m (124 lb in).

  3. Install the oil pump outer and inner gears as removed.
  4. Install the oil pump cover.
  5. Install the oil pump cover bolts.

    Tighten:  Tighten the oil pump cover bolts to 10 N.m (89 lb in).

  6. Install the front cover. Refer to Engine Front Cover Replacement  .
