Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the oil level indicator tube into the engine block.
  2. Add sealant GM P/N 12346004 (Canadian P/N 10953480) to the oil level indicator tube stud threads.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the oil level indicator tube stud.

    Tighten:  Tighten the oil level indicator tube stud to 10 N.m (89 lb in).

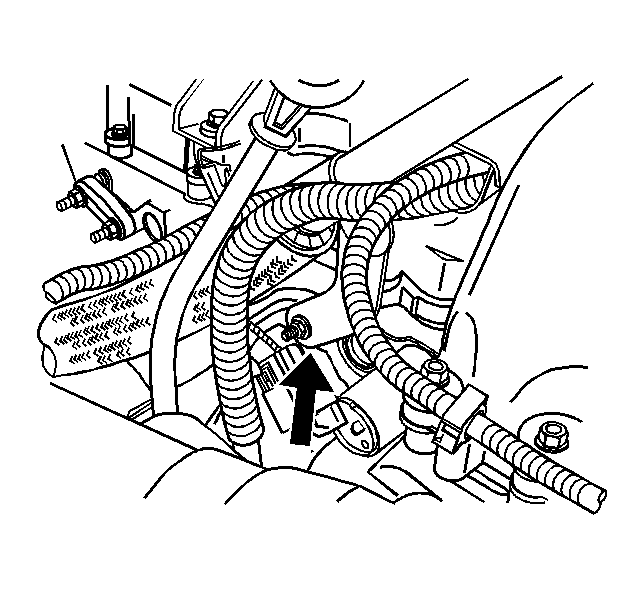

    4. Fig 1: View Of Oil Level Indicator Tube Bracket Nut
    GM754343Courtesy of GENERAL MOTORS CORP.
  4. Install the A/C line bracket to oil level indicator tube and secure with the nut.

    Tighten:  Tighten the A/C line bracket nut to 7 N.m (6 lb in).

  5. Connect the O2 sensor electrical connector.
  6. Install the oil level indicator into the tube.
