Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Add threadlock GM P/N 12345493 (Canadian P/N 10953488) to the new flywheel bolts.

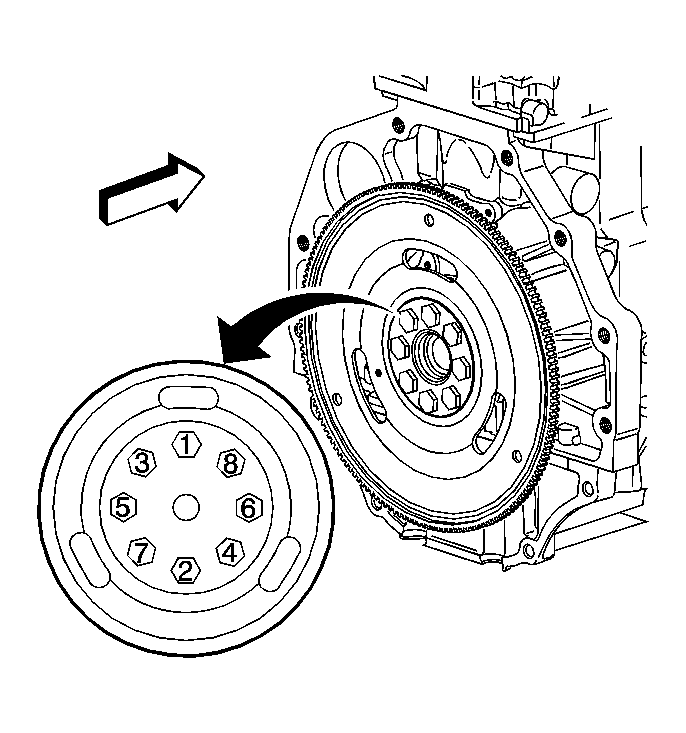

    2. Fig 1: Installing Flywheel
    GM637686Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the flywheel and secure the flywheel with the new bolts.

    Tighten:

    1. Tighten the bolts in sequence to 25 N.m (18 lb ft).
    2. Use the J 36660-A in order to tighten the bolts an additional 50 degrees.

  3. Install the transmission. Refer to Transmission Replacement (LL8) in Automatic Transmission - 4L60-E/4L65-E.
