Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

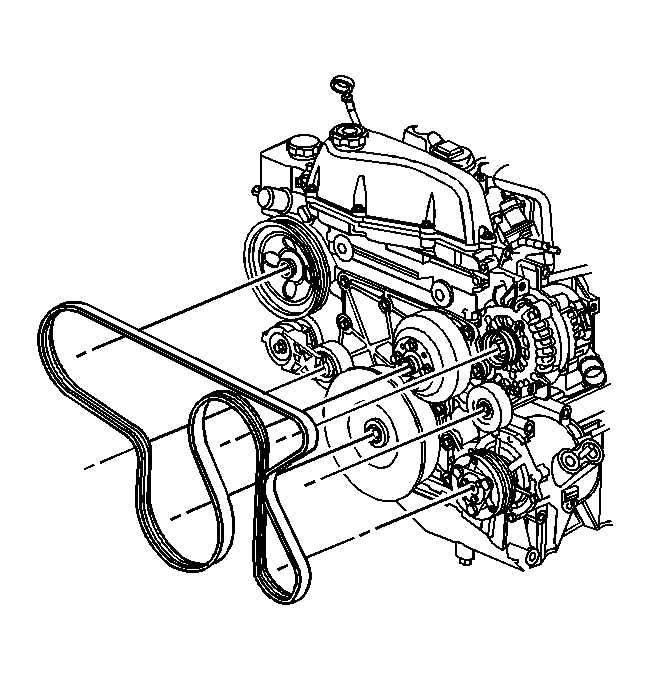

    Fig 1: View Of Drive Belt Routing
    GM753677Courtesy of GENERAL MOTORS CORP.
  1. Route the drivebelt over all the pulleys except the drivebelt tensioner pulley.
  2. Install the 3/8 inch breaker bar on the drivebelt tensioner arm and turn the breaker bar clockwise.
  3. Install the drivebelt over the drivebelt tensioner pulley.
  4. Slowly release the tension to the drivebelt tensioner arm.
  5. Inspect for proper installation of the drivebelt on the pulleys.
