Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Ensure number 1 piston is at top dead center. The crank pin will be at 12 o'clock when the number 1 piston is at top dead center.
  1. If installing new cylinder head, refer to Cylinder Head Assemble  .

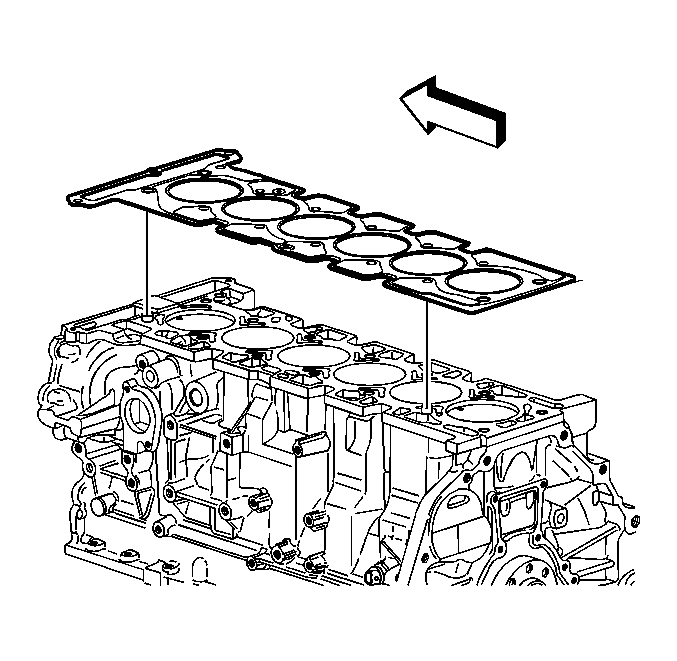

    2. Fig 1: View Of Cylinder Head Gasket
    GM637586Courtesy of GENERAL MOTORS CORP.
  2. Install the dowel pins, cylinder head locator, if necessary.
  3. Install a new cylinder head gasket.

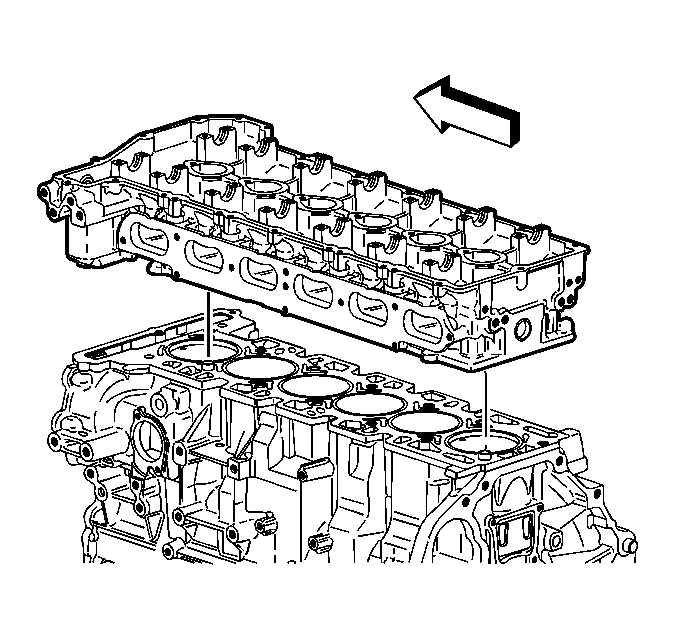

    4. Fig 2: View Of Cylinder Head
    GM637588Courtesy of GENERAL MOTORS CORP.
  4. Install the cylinder head.

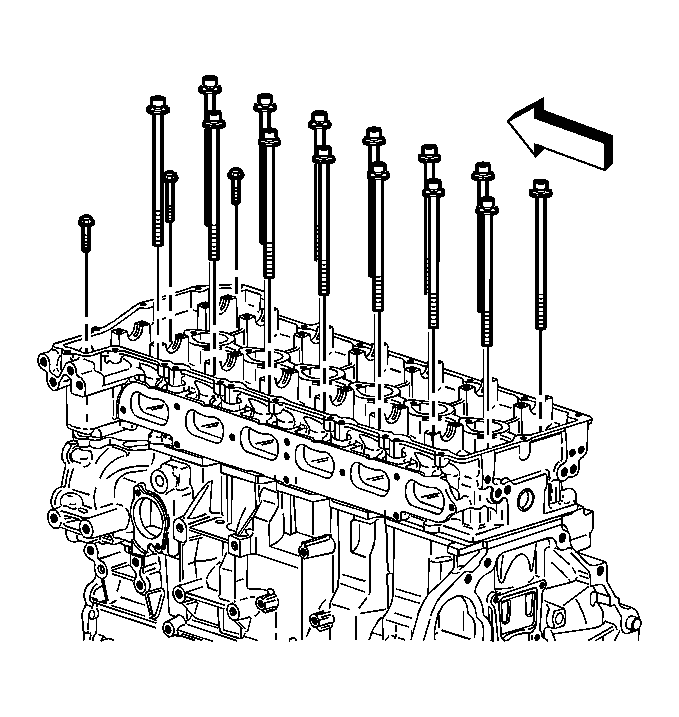

    5. Fig 3: View Of Cylinder Head Bolts
    GM637587Courtesy of GENERAL MOTORS CORP.
  5. Install new cylinder head bolts.

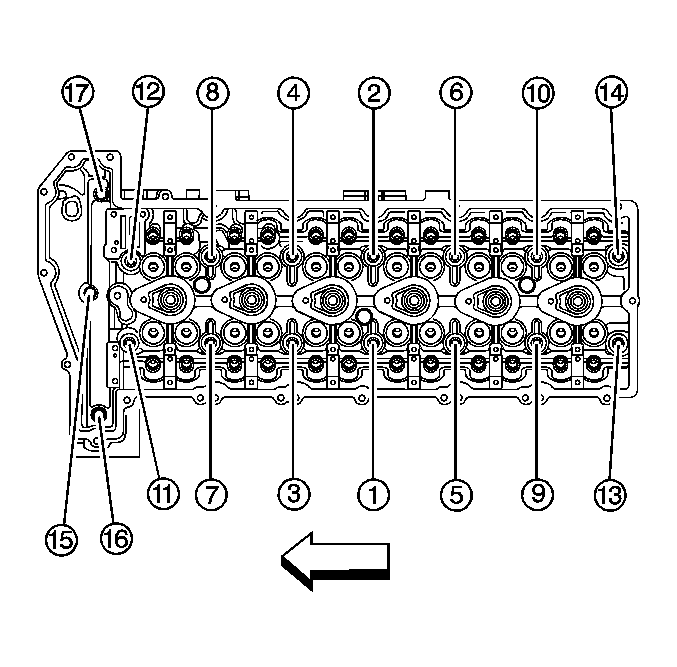

    6. Fig 4: Cylinder Head Bolt Tightening Sequence
    GM637685Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  6. Tighten the new cylinder head bolts in the following sequence:

    Tighten:

    1. Tighten the cylinder head bolts (1-14) in sequence to 30 N.m (22 lb ft).
    2. Use J 36660-A to tighten the cylinder head bolts in sequence an additional 155 degrees.
    3. Tighten the (2 Short) end bolts to 7 N.m (62 lb in).

      Use J 36660-A to tighten the short cylinder head end bolts an additional 60 degrees.

    4. Tighten the (1 Long) end bolt to 7 N.m (62 lb in).

      Use J 36660-A to tighten the long cylinder head end bolt an additional 120 degrees.

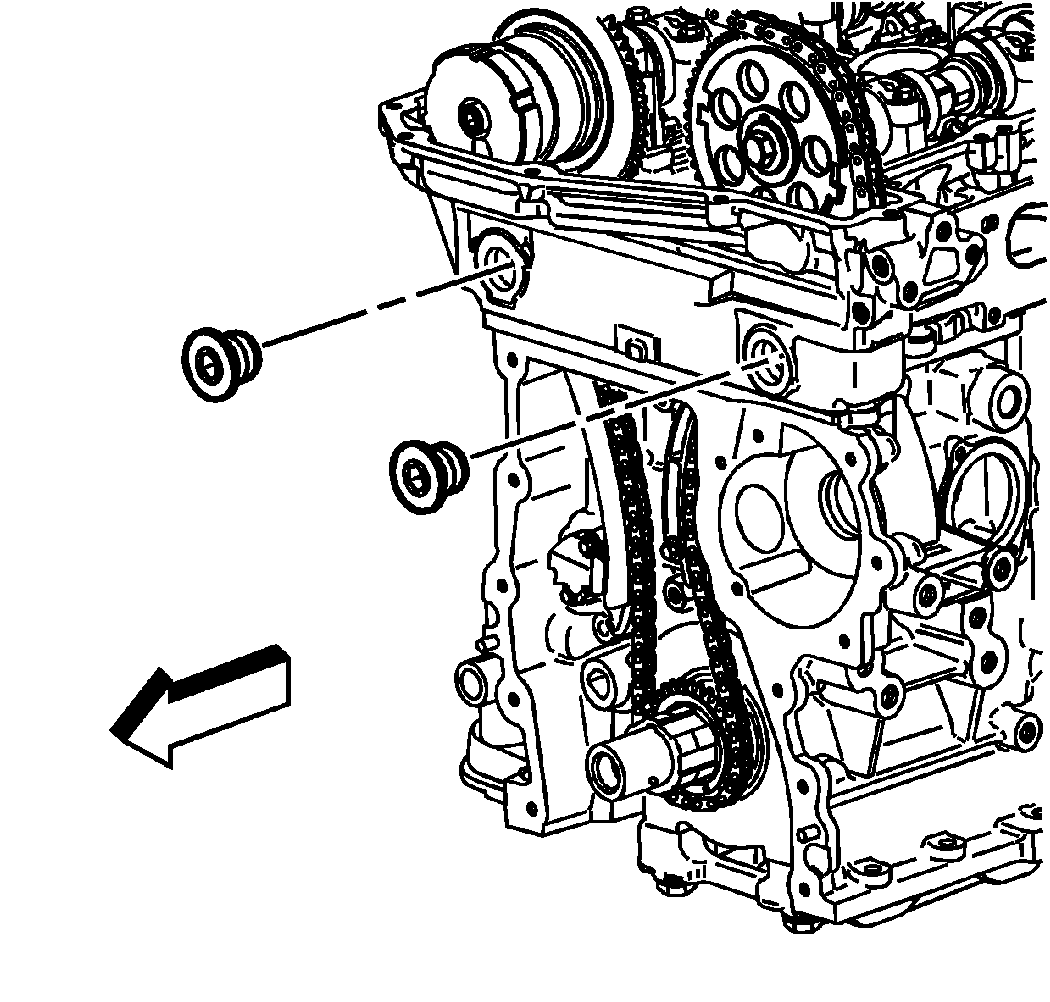

    7. Fig 5: View Of Cylinder Head Access Hole Plugs
    GM637770Courtesy of GENERAL MOTORS CORP.
  7. Install the cylinder head access hole plugs.

    Tighten:  Tighten the plugs to 5 N.m (44 lb in).

  8. Install the timing chain and sprockets. Refer to Timing Chain, Sprockets, and/or Tensioner Replacement  .
  9. Install the front cover. Refer to Engine Front Cover Replacement  .
  10. Install the camshaft cover. Refer to Camshaft Cover Replacement  .
  11. Install the exhaust manifold. Refer to Exhaust Manifold Replacement (4.2L Engine) .
