Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the J 44227  to install the crankshaft rear oil seal. See Special Tools and Equipment .
  2. Remove the J 44227  . See Special Tools and Equipment .
    3. Fig 1: Applying Sealer To Rear Oil Seal Housing
    GM637714Courtesy of GENERAL MOTORS CORP.
  3. Apply a 3 mm (0.12 in) bead of GM P/N 12378521 to the rear oil seal housing (1).

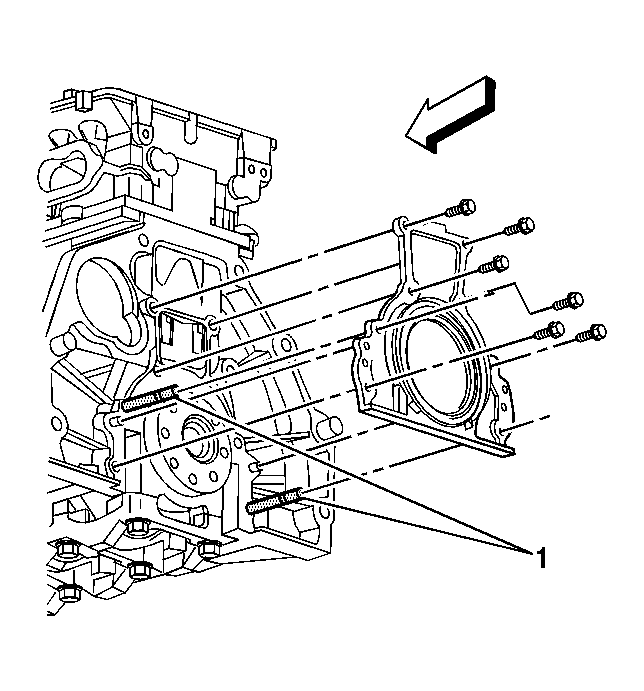

    4. Fig 2: Installing J 44219 Guide Pins Into Block
    GM1377394Courtesy of GENERAL MOTORS CORP.
  4. Install the J 44219  guide pins (1) into the block. See Special Tools and Equipment .
    5. IMPORTANT:
    • When installing a new seal, use the plastic installation sleeve supplied with the new seal.
    • The seal installation sleeve should come off after the seal is installed. Discard the sleeve.
  5. Slide the crankshaft rear oil seal housing over the alignment pins J 44219  and crankshaft. See Special Tools and Equipment .
  6. Install the crankshaft rear oil seal housing bolts, except the 2 in place of the guide pins.
  7. Remove the J 44219  guide pins. See Special Tools and Equipment .
    8. NOTE: Refer to Fastener Notice in Cautions and Notices.
  8. Install the remaining 2 crankshaft rear oil seal housing bolts.

    Tighten:  Tighten all the oil seal housing bolts to 10 N.m (89 lb in).

    9. Fig 3: Removing Excess Sealer From Oil Pan Area
    GM1377395Courtesy of GENERAL MOTORS CORP.
  9. Wipe off any excess material from the bottom of the oil pan sealing area (1).
    10. Fig 4: Installing Flywheel
    GM637686Courtesy of GENERAL MOTORS CORP.
  10. Install the flywheel and secure with the bolts.

    Tighten:  Tighten the flywheel bolts in sequence to 25 N.m (18 lb ft).

  11. Use the J 36660-A to tighten the bolts an additional 50 degrees.
  12. Install the transmission. Refer to Transmission Replacement (LL8) in Automatic Transmission - 4L60-E/4L65-E.
