Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

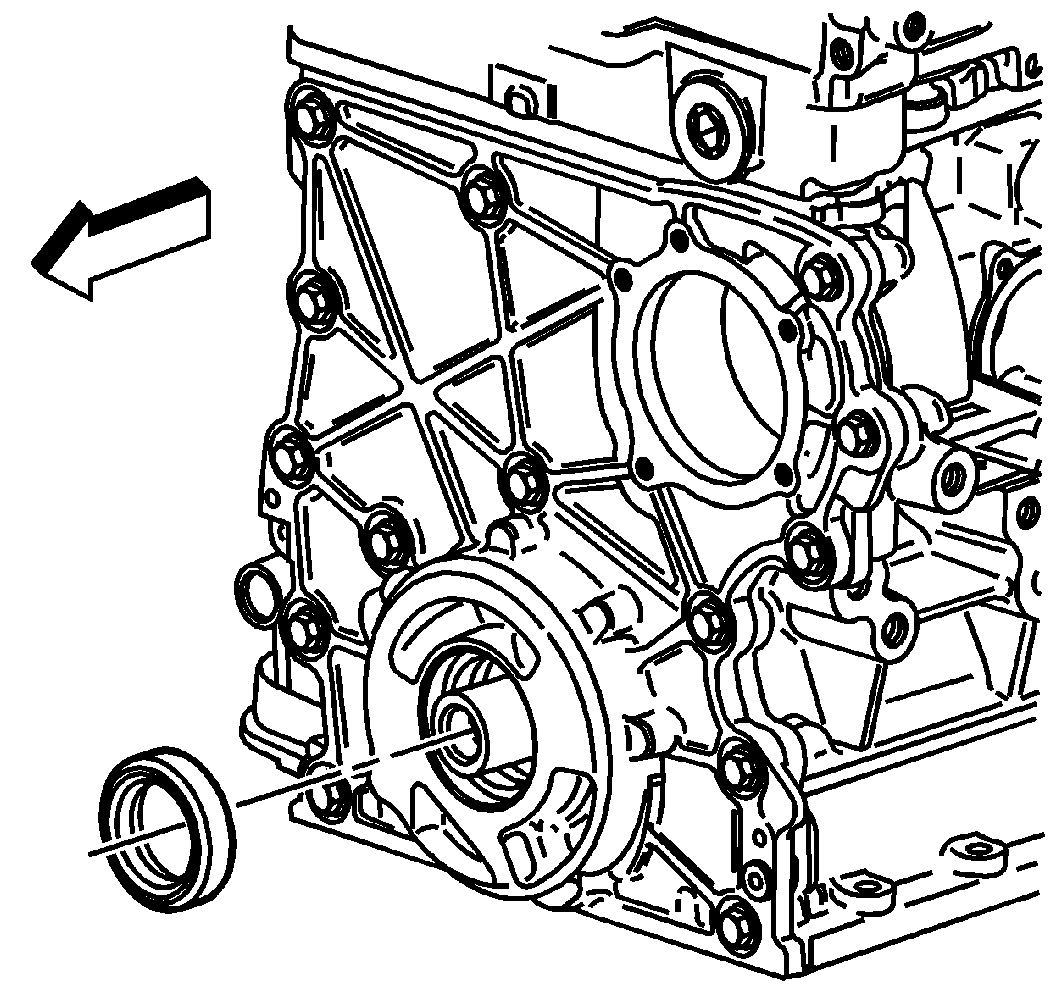

    Fig 1: View Of Crankshaft Front Oil Seal
    GM637775Courtesy of GENERAL MOTORS CORP.
  1. Apply the engine oil to the outside diameter of the crankshaft front oil seal.
    2. Fig 2: Installing Front Oil Seal
    GM748330Courtesy of GENERAL MOTORS CORP.
  2. Use the J 44218  to install the front oil seal. See Special Tools and Equipment .
  3. Remove the J 44218  . See Special Tools and Equipment .
  4. Install the crank balancer shaft. Refer to Crankshaft Balancer Replacement  .
