Tool Required

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

J 41240 Fan Clutch Remover and Installer. See Special Tools and Equipment .

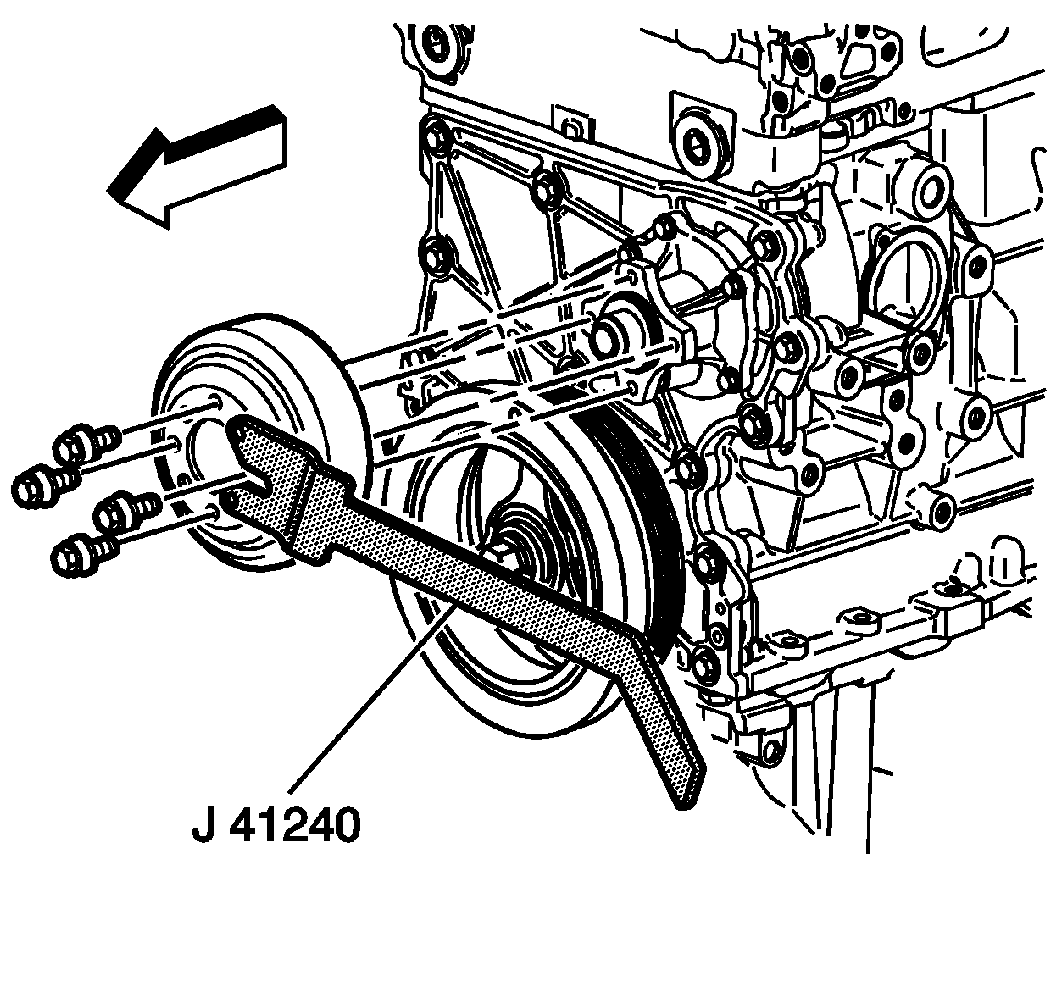

Fig 1: Removing Water Pump Pull

Courtesy of GENERAL MOTORS CORP.

Install J 41240 to hold the pulley. See Special Tools and Equipment .
Remove the water pump pulley bolts.
Remove J 41240 . See Special Tools and Equipment .
Remove the water pump pulley

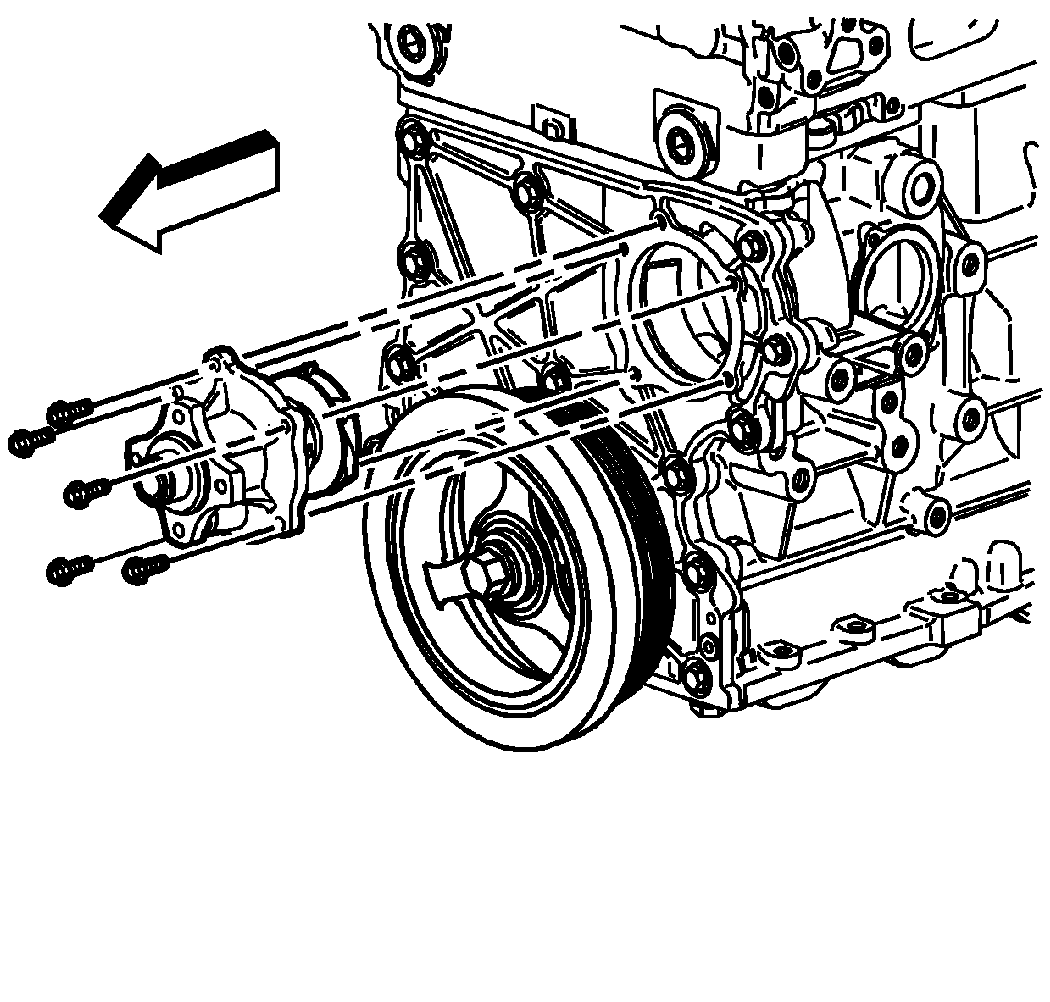

Fig 2: Removing Water Pump

Courtesy of GENERAL MOTORS CORP.

Remove the water pump bolts.
Remove the water pump.
Remove the water pump gasket.
