Tool Required

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

J 41240  Fan Clutch Remover and Installer. See Special Tools and Equipment .

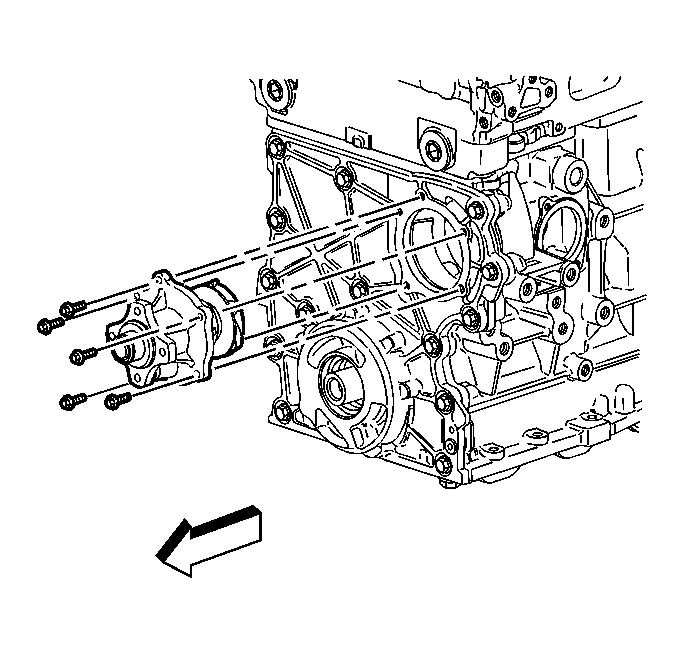

    Fig 1: Installing Water Pump
    GM869917Courtesy of GENERAL MOTORS CORP.
  1. Install the water pump gasket.
  2. Install the water pump.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the water pump bolts.

    Tighten:  Tighten the water pump bolts to 10 N.m (89 lb in).

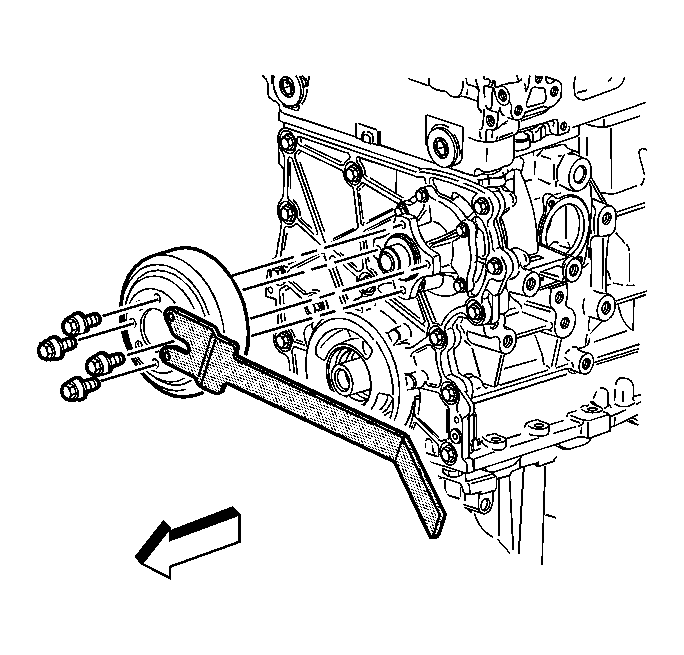

    4. Fig 2: Installing Water Pump Pulley
    GM869918Courtesy of GENERAL MOTORS CORP.
  4. Install the water pump pulley.
  5. Install the water pump pulley bolts.
  6. Install J 41240  to hold pulley. See Special Tools and Equipment .
  7. Tighten the water pump pulley bolts.

    Tighten:  Tighten the water pump pulley bolts to 25 N.m (18 lb ft).

  8. Remove J 41240  . See Special Tools and Equipment .
