Power Steering Pump Bracket Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

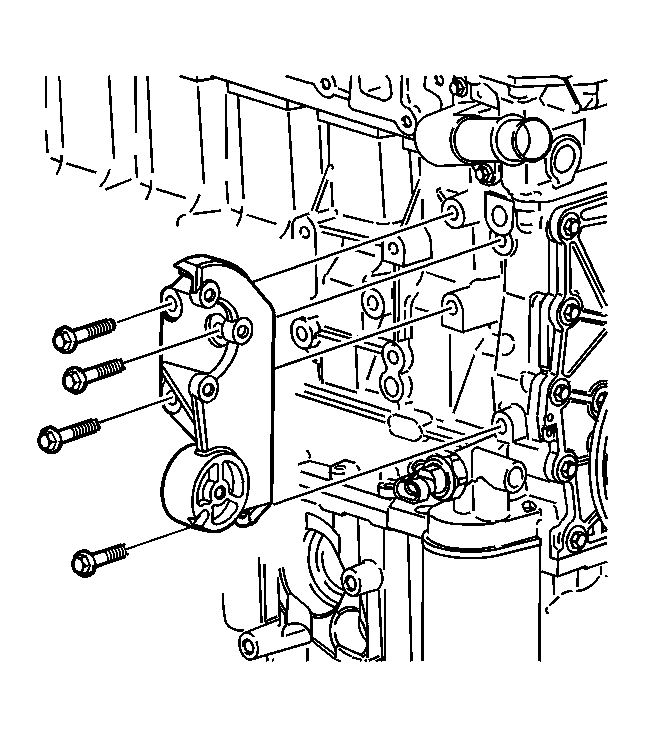

    Fig 1: View Of Power Steering Pump Bracket & Bolts
    GM637661Courtesy of GENERAL MOTORS CORP.
  1. Install the power steering pump bracket.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the power steering pump bracket bolts.

    Tighten:  Tighten the power steering pump bracket bolts to 50 N.m (37 lb ft).
