Oil Pump Pipe and Screen Assembly Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

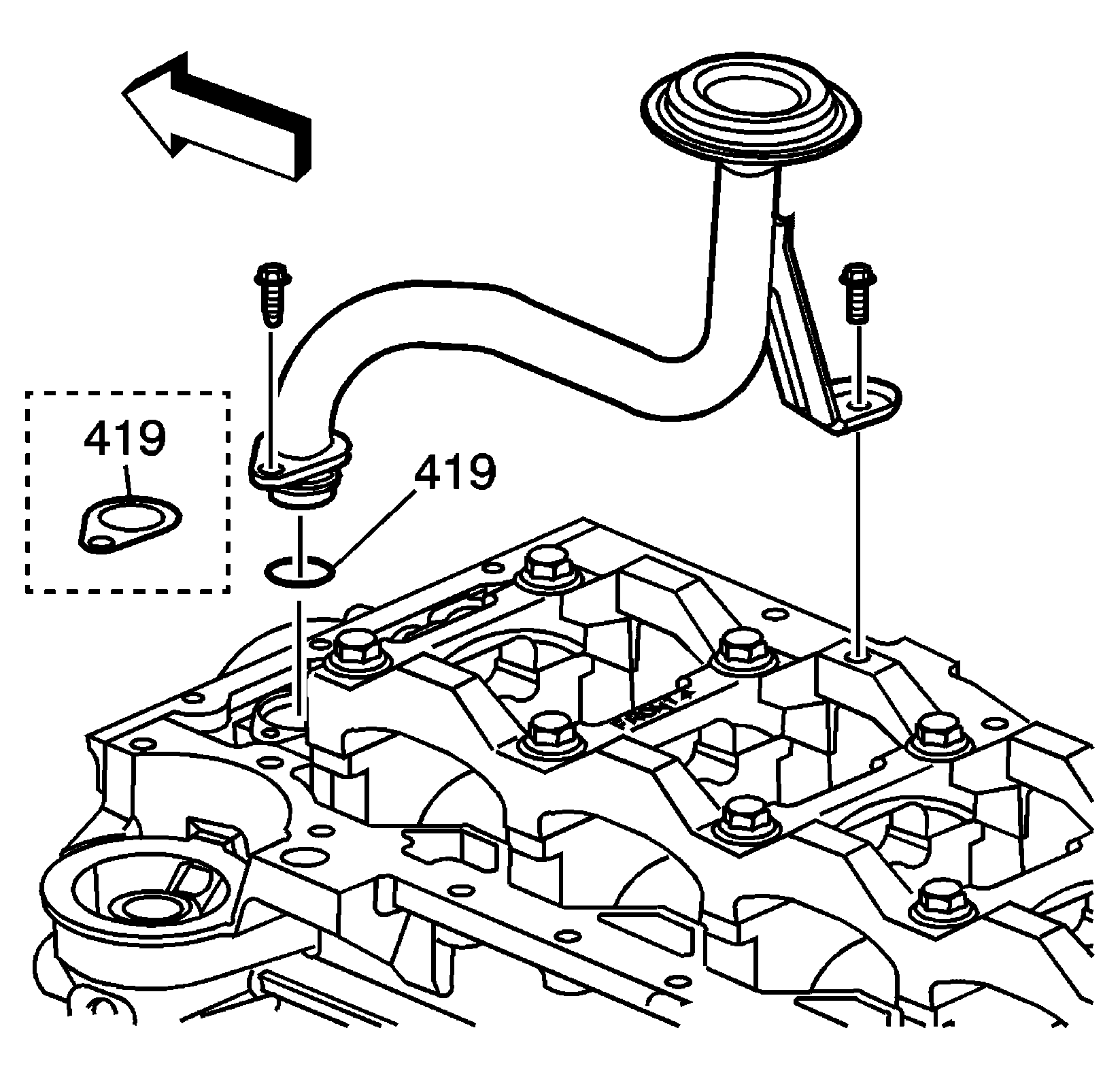

    Fig 1: View Of Oil Pump Pipe, O-Ring & Bolts
    GM1524400Courtesy of GENERAL MOTORS CORP.
  1. Install a new oil pump pipe O-ring/gasket (419) - model dependent.
  2. Install the oil pump pipe and screen assembly.
  3. Add sealant GM P/N 12346004 (Canadian P/N 10953480) to the oil pump pipe bolt threads.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the oil pump pipe and screen assembly bolts.

    Tighten:  Tighten the oil pump pipe and screen assembly bolts to 10 N.m (89 lb in).
