Oil Pan Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

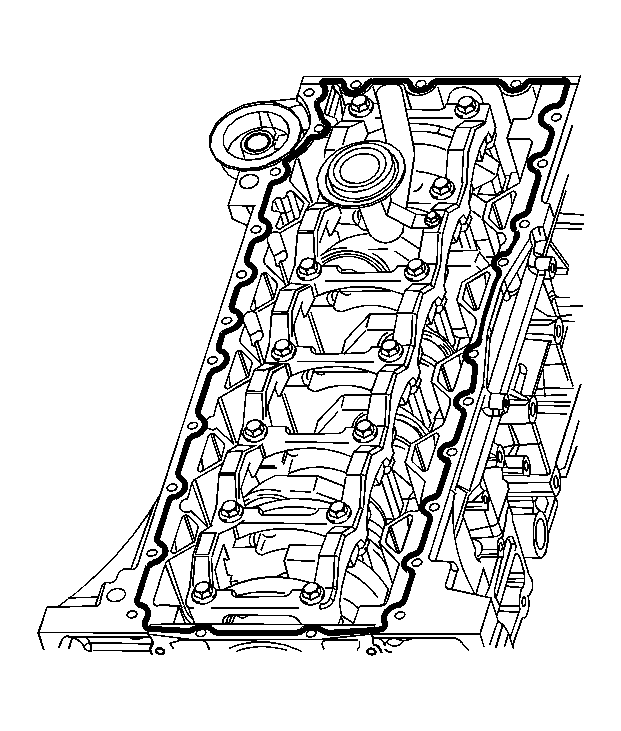

    Fig 1: Applying Sealer
    GM748332Courtesy of GENERAL MOTORS CORP.
  1. Apply a 3 mm (0.12 in) bead of sealer GM P/N United States 12378521, GM P/N Canada 88901148 to the block.

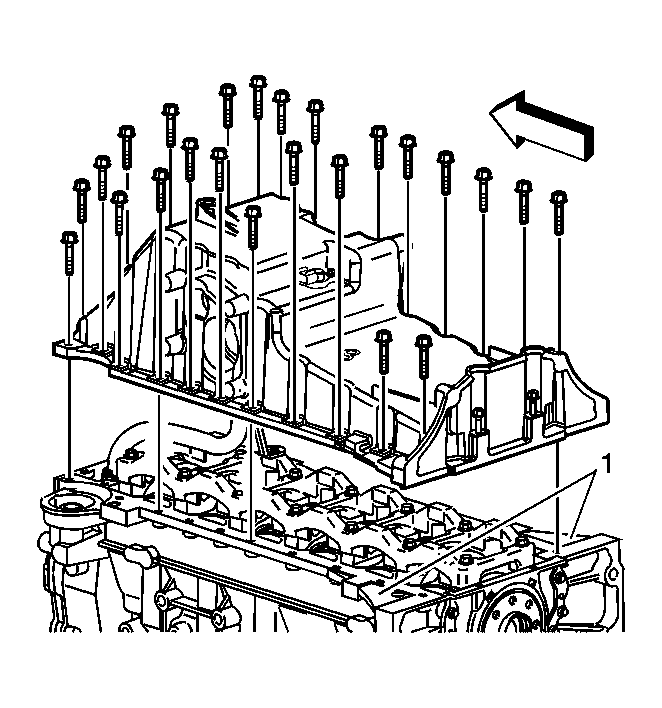

    2. Fig 2: View Of Oil Pan & Bolts
    GM637716Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The oil pan must be installed within 10 minutes from when the sealer was applied.
  2. Install the oil pan.
  3. Install the oil pan bolts.
    4. Fig 3: Aligning Oil Pan To Back Of Block
    GM715595Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: When installing the oil pan, it could be shifted front or back a little which could cause a transmission alignment problem. The back of the oil pan needs to be flush with the block.
  4. Check the oil pan alignment. Use a straight edge on the back of the block and oil pan (transmission mounting surface).
    5. NOTE: Refer to Fastener Notice in Cautions and Notices.
  5. Tighten the oil pan bolts.

    Tighten:

    • Tighten the (side) oil pan bolts to 25 N.m (1 lb ft).
    • Tighten the (end) oil pan bolts to 10 N.m (89 lb in).

  6. Install the oil level sensor.
  7. Install the oil level sensor bolt.

    Tighten:  Tighten the oil level sensor bolt to 10 N.m (89 lb in).
