Oil Level Indicator and Tube Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

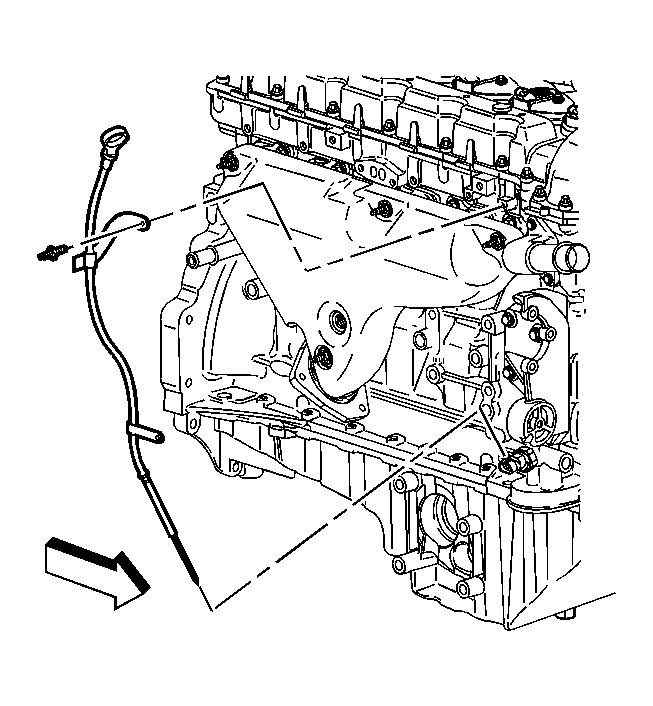

    Fig 1: View Of Oil Level Indicator Tube Stud
    GM637658Courtesy of GENERAL MOTORS CORP.
  1. Install the oil level indicator tube.
  2. Add sealant GM P/N United States 12346004, GM P/N Canada 10953480 to the oil level indicator tube stud threads.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the oil level indicator tube stud.

    Tighten:  Tighten the oil level indicator tube stud to 10 N.m (89 lb in).

  4. Install the oil level indicator.
