Engine Lift Bracket Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

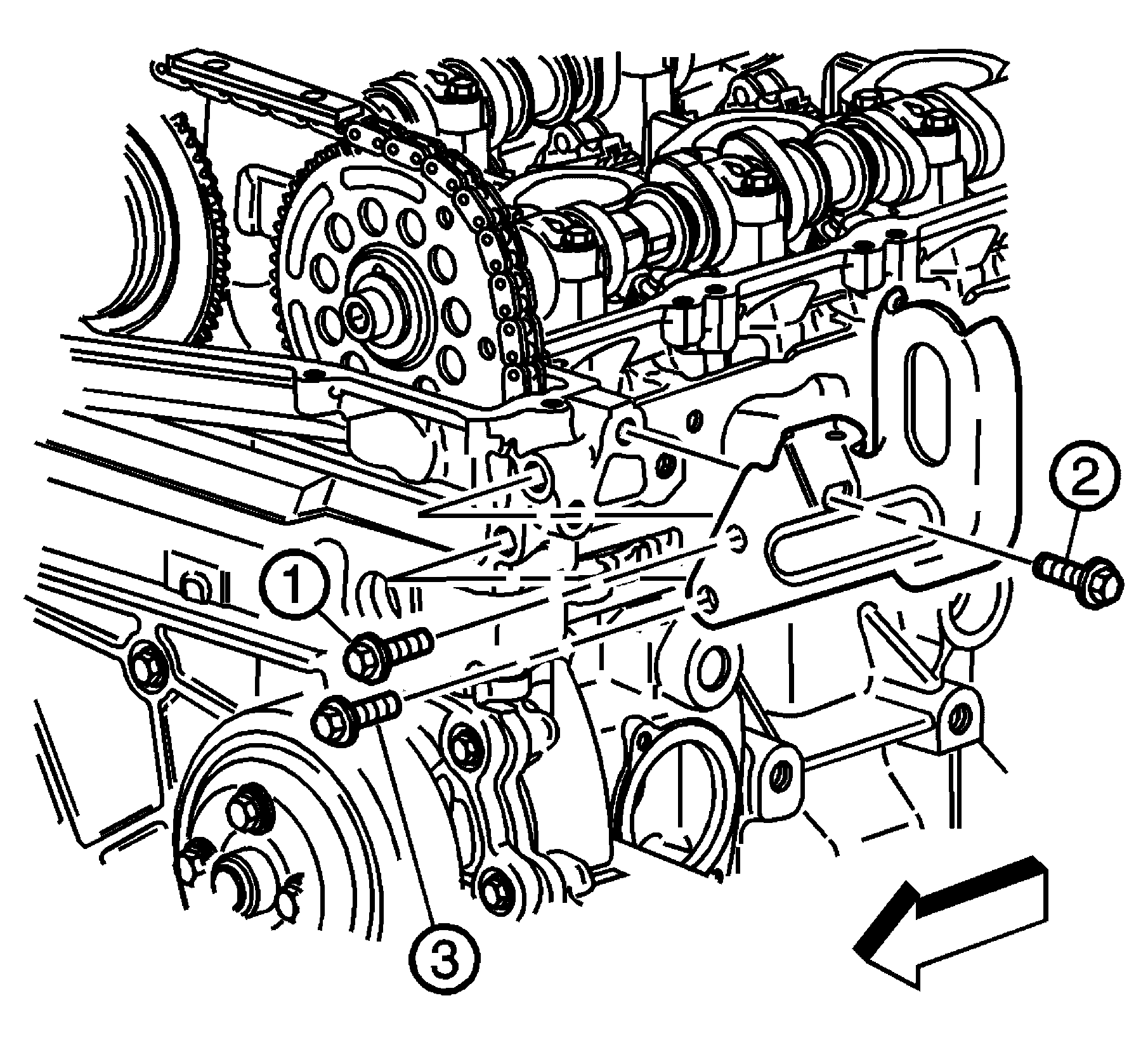

    Fig 1: Installing Engine Lift Bracket
    GM777653Courtesy of GENERAL MOTORS CORP.
  1. Install the engine lift bracket.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the engine lift bracket bolts in sequence.

    Tighten:  Tighten the engine lift bracket bolts in sequence to 50 N.m (37 lb ft)
