Engine Flywheel Installation: Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

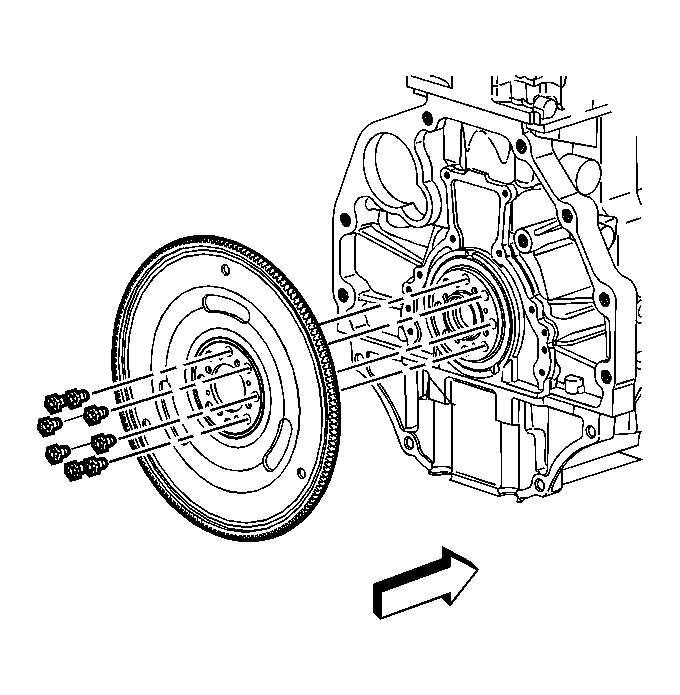

    Fig 1: View Of Flywheel & Bolts
    GM637665Courtesy of GENERAL MOTORS CORP.
  1. Install the flywheel.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install new flywheel bolts.

    Tighten:

    1. Tighten the new flywheel bolts to 25 N.m (18 lb ft).
    2. Use J 45059  to tighten the flywheel bolts an additional 50 degrees. See Special Tools and Equipment .
