Engine Block Plug Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

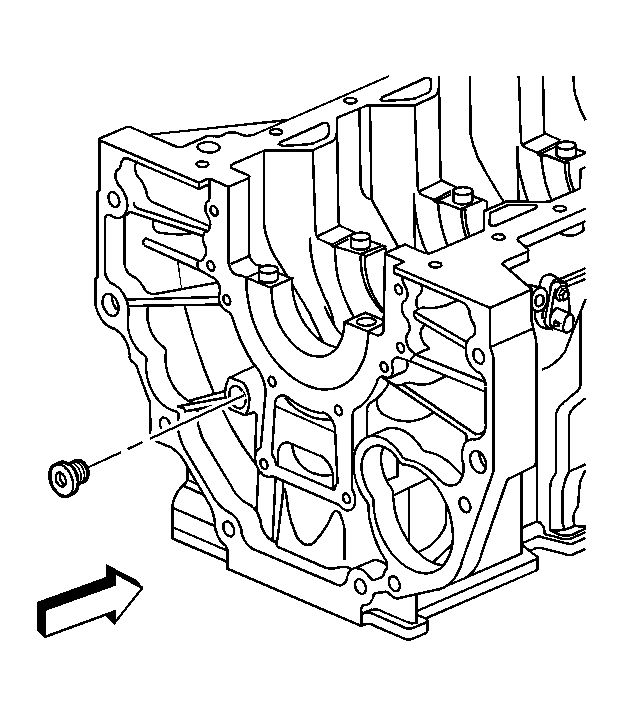

    Fig 1: View Of Oil Gallery Plug From Rear Of Block
    GM715591Courtesy of GENERAL MOTORS CORP.
  1. Add sealer GM P/N United States 12346004, GM P/N Canada 10953480 to the plug threads.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the engine block oil gallery plug to rear of block.

    Tighten:  Tighten the engine block oil gallery plug to 80 N.m (40 lb ft).

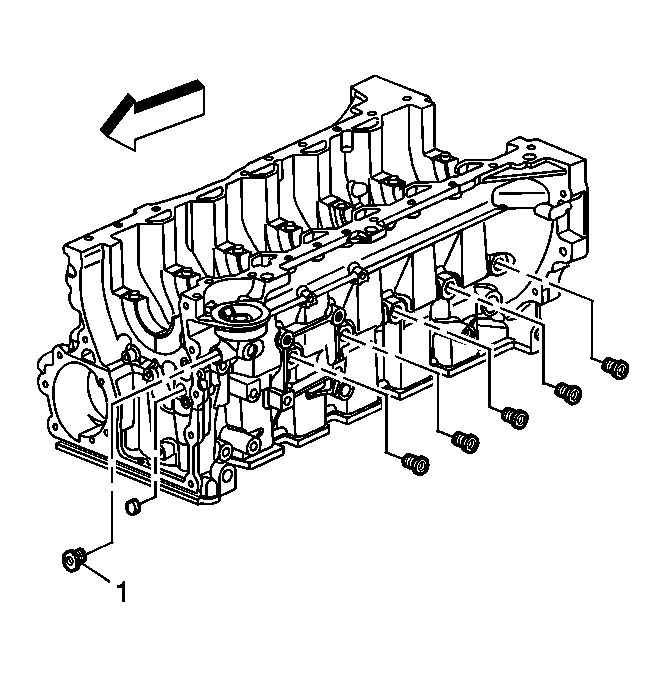

    3. Fig 2: Installing Engine Block Oil Gallery Plugs Into Front & Left Of Block
    GM764315Courtesy of GENERAL MOTORS CORP.
  3. Add sealer GM P/N United States 12346004, GM P/N Canada 10953480 to the plug threads.
  4. Install the engine block oil gallery plugs to front and left of block.

    Tighten:

    • Tighten the side engine block oil gallery plugs to 35 N.m (26 lb ft).
    • Tighten the front (1) engine block oil gallery plug to 80 N.m (40 lb ft).

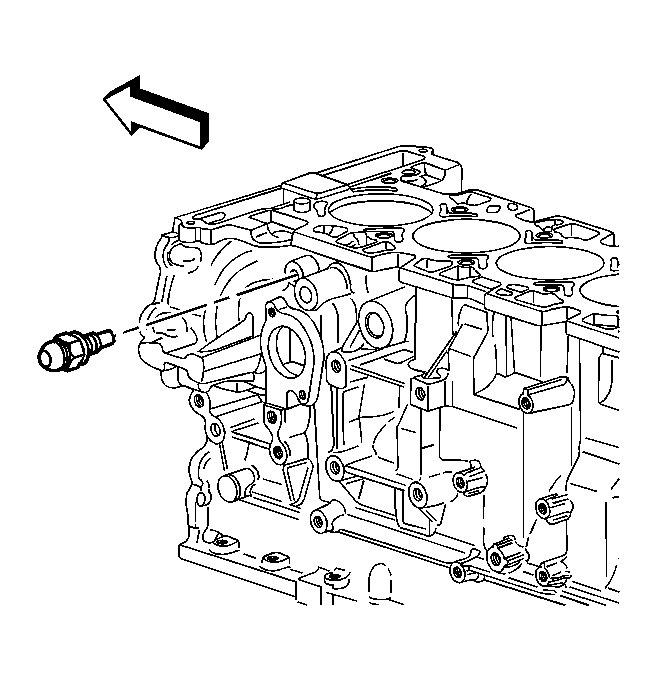

    5. Fig 3: View Of Coolant Temperature Sensor
    GM748319Courtesy of GENERAL MOTORS CORP.
  5. Add sealer GM P/N United States 12346004, GM P/N Canada 10953480 to the coolant temperature sensor threads.
  6. Install the coolant temperature sensor.

    Tighten:  Tighten the coolant temperature sensor to 20 N.m (15 lb ft).

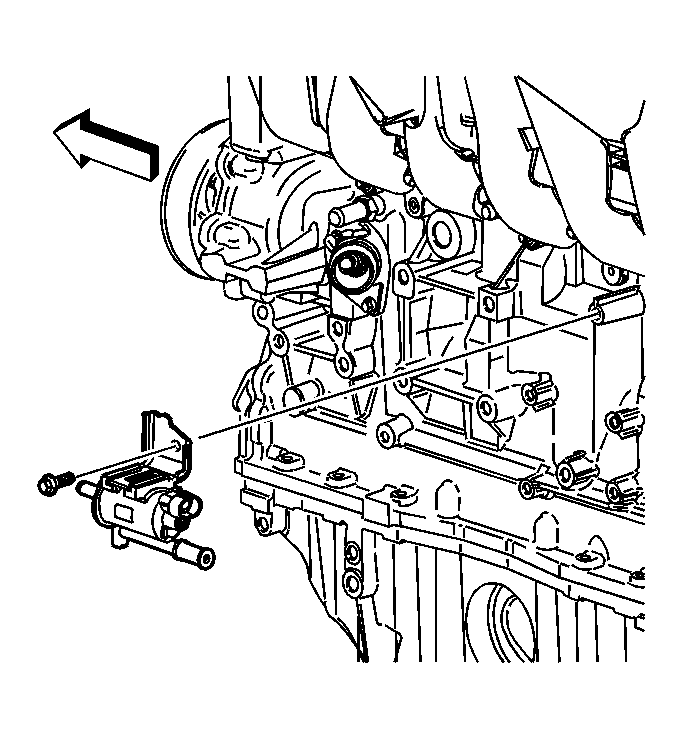

    7. Fig 4: View Of EVAP Solenoid
    GM637591Courtesy of GENERAL MOTORS CORP.
  7. Add sealer GM P/N United States 12346004, GM P/N Canada 10953480 to the EVAP solenoid bolt threads.

    Tighten:  Tighten the EVAP solenoid bolt to 10 N.m (89 lb in).

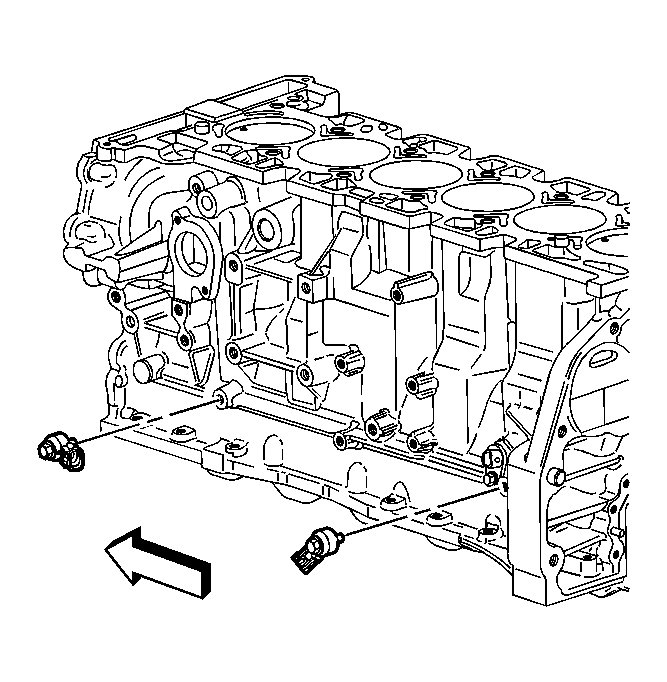

    8. Fig 5: View Of Knock Sensors
    GM637594Courtesy of GENERAL MOTORS CORP.
  8. Install the knock sensors.

    Tighten:  Tighten the knock sensors to 25 N.m (18 lb ft).

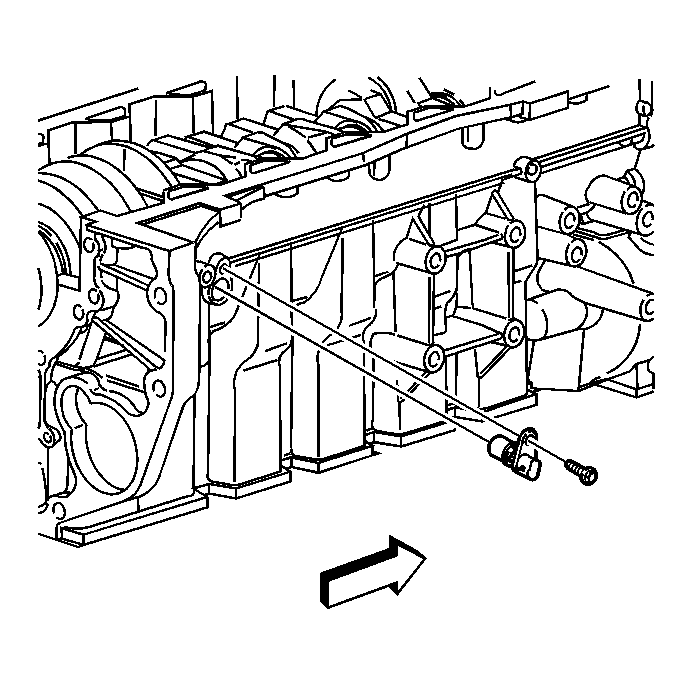

    9. Fig 6: View Of Crankshaft Position Sensor
    GM637595Courtesy of GENERAL MOTORS CORP.
  9. Add sealer GM P/N United States 12346004, GM P/N Canada 10953480 to the crankshaft position sensor bolt.
  10. Install the crankshaft position sensor and bolt.

    Tighten:  Tighten the crankshaft position sensor bolt to 10 N.m (89 lb in).
