Drive Belt Tensioner Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

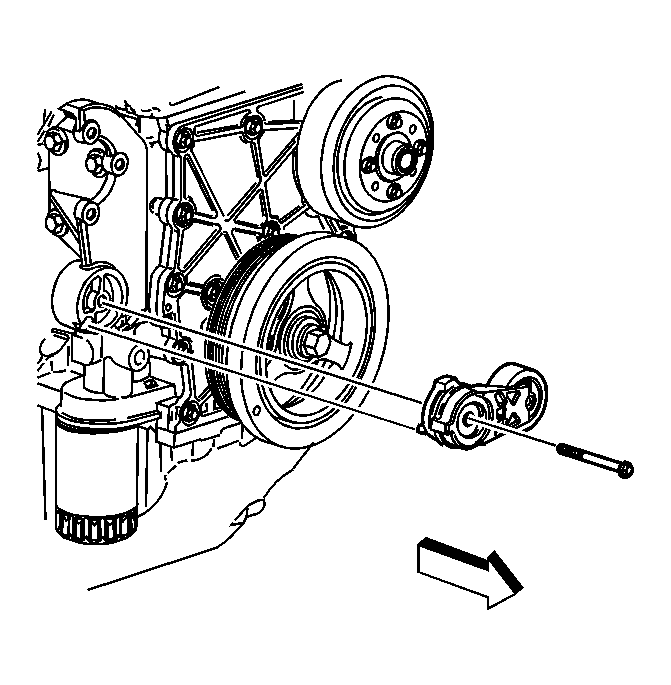

    Fig 1: View Of Drive Belt Tensioner & Bolt
    GM856221Courtesy of GENERAL MOTORS CORP.
  1. Install the drive belt tensioner.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the drive belt tensioner bolt.

    Tighten:  Tighten the drive belt tensioner bolt to 50 N.m (37 lb ft).
