Drive Belt Idler Pulley Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

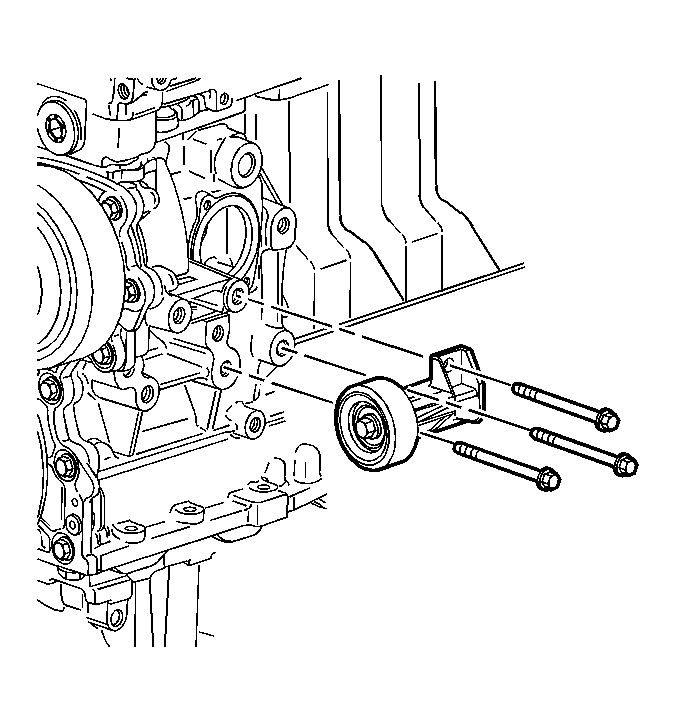

    Fig 1: View Of Drive Belt Idler Pulley & Bolts
    GM748065Courtesy of GENERAL MOTORS CORP.
  1. Install the drive belt idler pulley.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the drive belt idler pulley bolts.

    Tighten:  Tighten the drive belt idler pulley bolts to 50 N.m (37 lb ft).
