Cylinder Sleeve Trimming

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Cylinder Liner Trimming Tools View (1 Of 2)
GM1253966Courtesy of GENERAL MOTORS CORP.
Fig 2: Cylinder Liner Trimming Tools View (2 Of 2)
GM1253969Courtesy of GENERAL MOTORS CORP.
    NOTE: Do not bore or hone the cylinder bore sleeve. The cylinder bore sleeve inside diameter (I.D) is fully machined and honed to size and is optimally finished as shipped. Any attempt to modify this factory-produced sizing and finish with additional boring and honing will lead to engine damage, excessive noise or abnormal oil consumption.

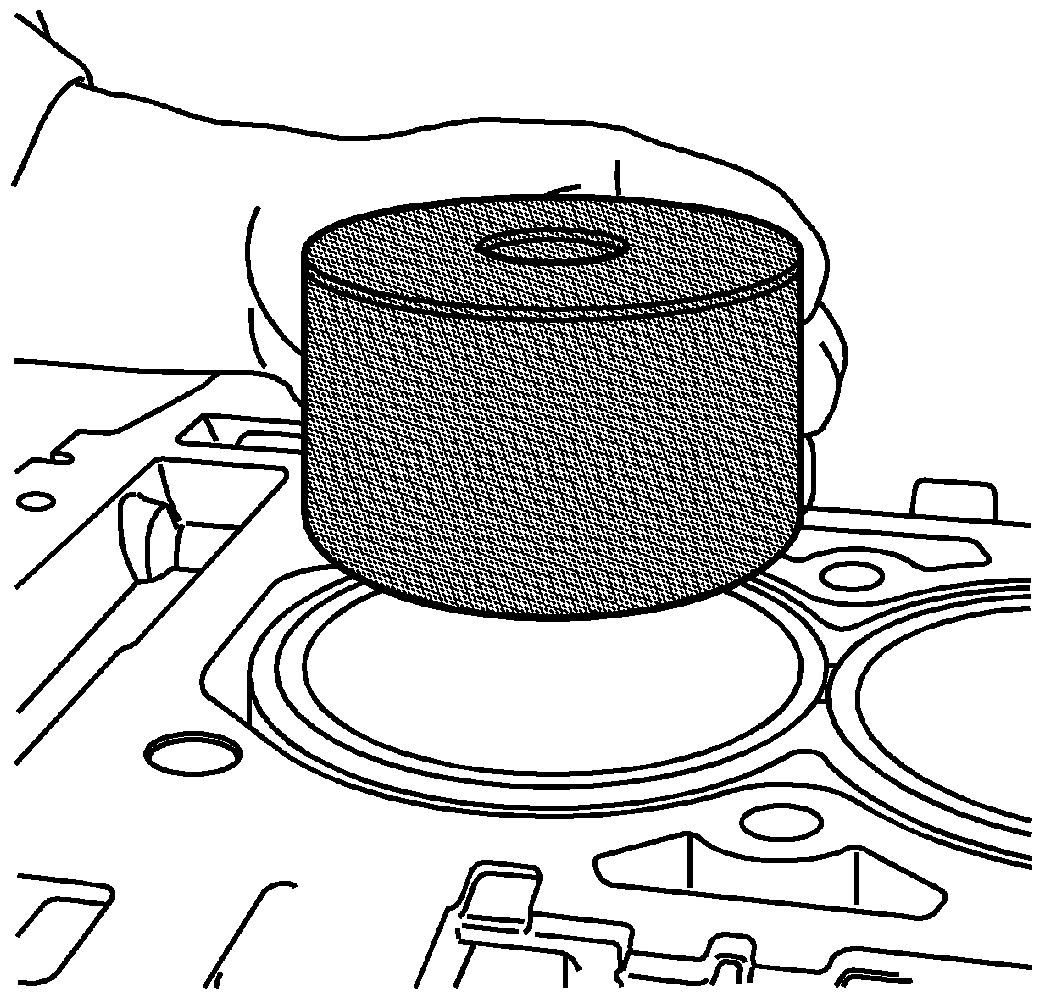

    Fig 3: Placing Metal Shaving Catch Plug Into Cylinder Bore Sleeve
    GM1253974Courtesy of GENERAL MOTORS CORP.
  1. After installing the NEW cylinder bore sleeve(s) into the engine block, trim the excess material from the cylinder bore sleeve flange.
    2. NOTE: Ensure that all the metal particles are collected in order to prevent internal damage to the transaxle or bearings.
  2. Place metal shaving catch plug EN 45680-413 into the cylinder bore sleeve to be trimmed. Position the top of the EN 45680-413 approximately 3.0 mm (0.12 in) below the top surface of the cylinder bore sleeve.
  3. Place additional metal shaving catch plugs EN 45680-413 into all remaining cylinder bore sleeves.
    4. Fig 4: Identifying Catch Plug Positioning
    GM1253978Courtesy of GENERAL MOTORS CORP.
    NOTE: Installing the metal shaving catch plug deeper than the recommended depth will create a decrease in vacuum system performance. A decrease in vacuum system performance will cause metal shavings to enter the engine and cause engine failure.
    NOTE: Installing the metal shaving catch plug above the recommended depth will cause damage to the metal shaving catch plug.
  4. Ensure that the metal shaving catch plug EN 45680-413 is 3.0 mm (0.12 in) below the top surface of the cylinder bore sleeve.
    5. Fig 5: Identifying Set Gauge Ring Groove
    GM1253982Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Before using trim tool assembly EN 45680-411, the height of the cutting blades must be set to the proper specification. The proper specification is that the cylinder bore sleeve flange must be flush to +0.02 mm (0.0008 in) above the block deck surface.
  5. The groove side of the set gage ring EN 45680-412 (1) should be positioned upward on a flat surface.
    6. Fig 6: View Of Trim Tool Assembly Components And Positioning
    GM1253983Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure that the set gage ring EN 45680-412 surfaces are clean.
  6. Carefully position trim tool assembly EN 45680-411 onto the set gage ring EN 45680-412.
  7. Loosen the shaft collar screw (2).
  8. Push the shaft collar (2) downward using the trim tool preloader (1) until the shaft collar is positioned against the top of the flange bearing (3).
    9. IMPORTANT: Once this procedure is done, it is not necessary to reset the trim tool assembly EN 45680-411 height until the blades are worn or damaged.
  9. Apply downward pressure on the collar and inner drive shaft using the trim tool preloader (1), then tighten the shaft collar screw.

    Tighten:  Tighten the shaft collar screw to 19 N.m (14 lb ft).

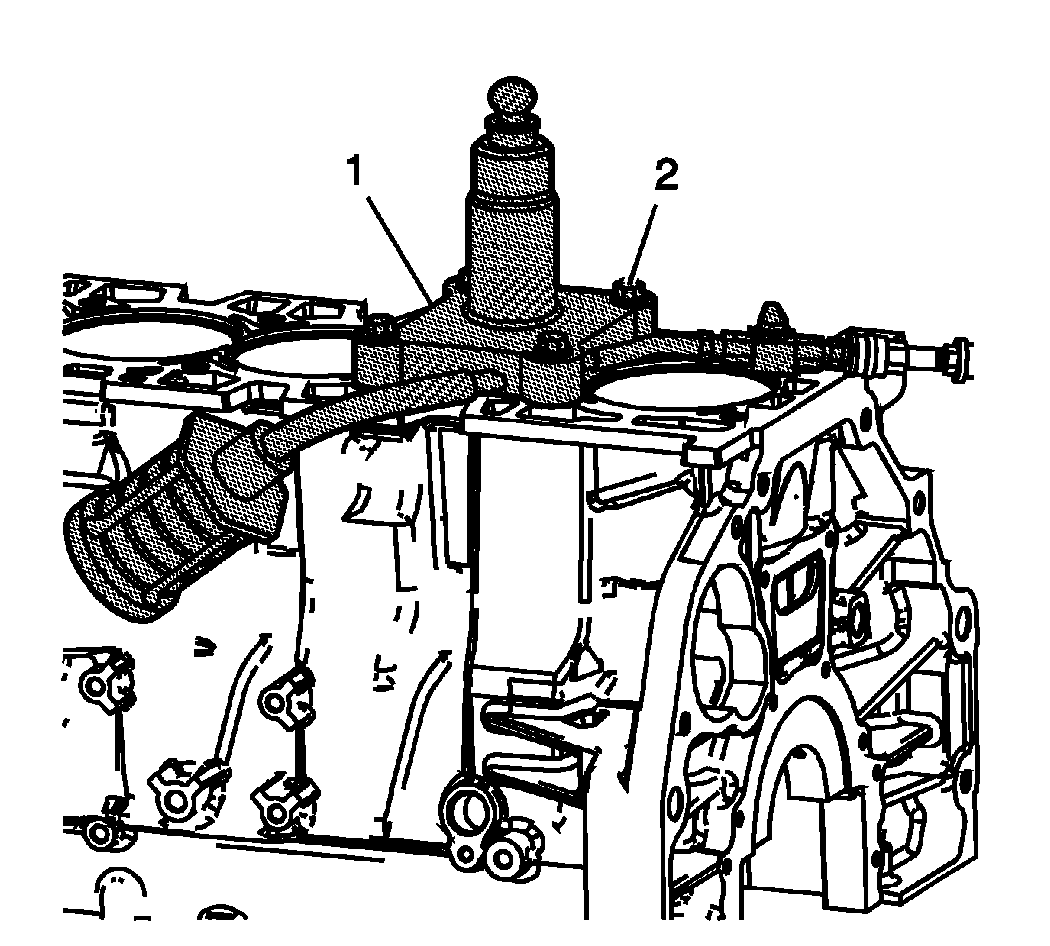

    10. Fig 7: Installing Trim Tool Assembly EN 45680-411
    GM1423192Courtesy of GENERAL MOTORS CORP.
  10. Place trim tool assembly EN 45680-411 onto the cylinder to be trimmed with the directional arrow (1) pointing in line with the crankshaft centerline and the front of the block.
  11. Install the 4 bolts EN 45680-414 (2) into the cylinder head bolt holes in the block.

    Tighten:  Tighten the bolts to 20 N.m (15 lb ft).

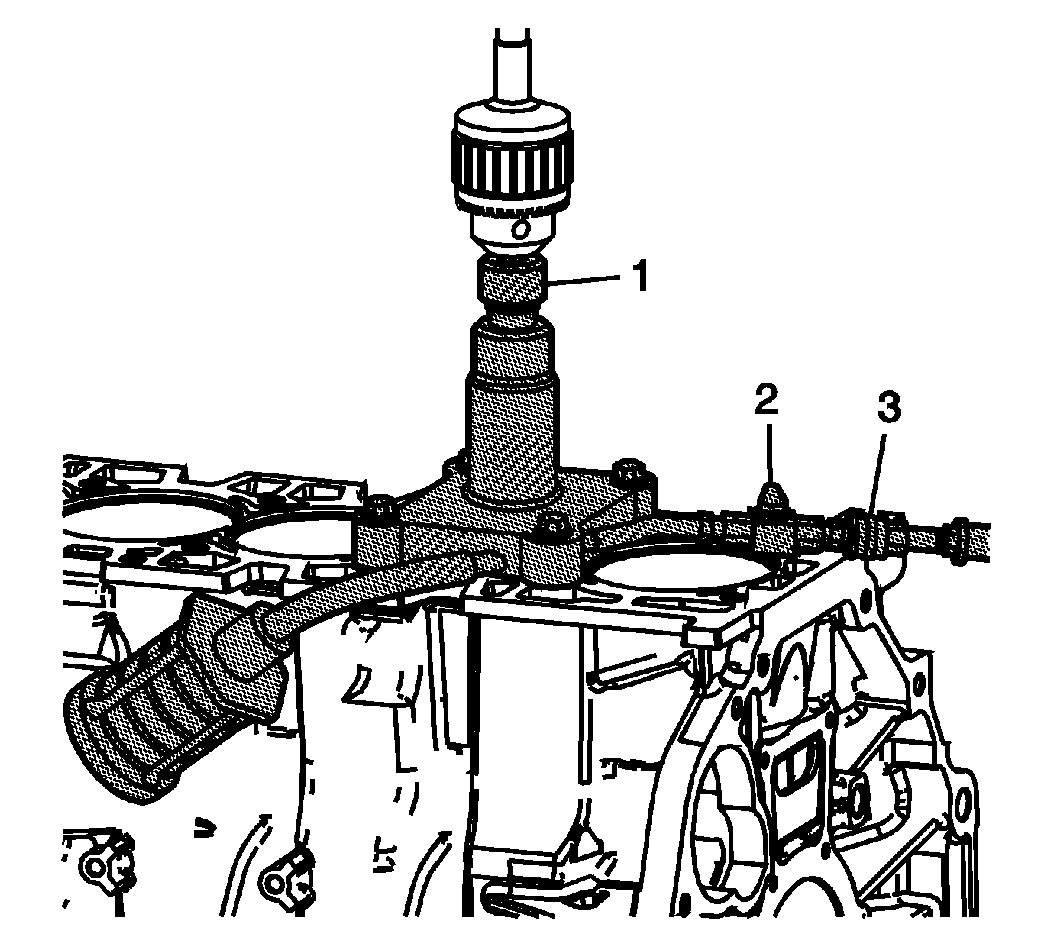

    12. Fig 8: Operating Trim Tool Assembly EN 45680-411
    GM1423193Courtesy of GENERAL MOTORS CORP.
    NOTE: For proper tool operation, a drill motor with a 1/2 inch chuck, 1 1/8 hp, 7 amps, triple gear reduction, and a 450-600 RPM rotational speed in a clockwise direction must be used. If the proper drill motor is not used, damage to the cylinder bore sleeve will occur.
  12. Fasten drive adapter EN 45680-866 (1) into the drill chuck.
    13. NOTE: Ensure that there are no crimps in the air feed hose or the vacuum hose. Crimps in the hose may cause metal shavings to exit the cutting tool in any direction, causing engine damage.
  13. Connect a compressed air supply (75-125 psi) to the male quick connect (3) located on trim tool assembly EN 45680-411. Turn the compressed air valve (2) to the open position. This starts the venturi vacuum system that will catch the metal shavings.
  14. Place drive adapter EN 45680-866 and drill assembly (1) vertically onto the drive adapter end of trim tool assembly EN 45680-411. Do not apply downward force on the drill until full rotational speed has been reached. After reaching full rotational speed, gradually apply downward force until the cutting action is complete in approximately 5 seconds.
  15. Remove drive adapter EN 45680-866 (1) and drill assembly from the trim tool assembly EN 45680-411.
  16. Turn off the compressed air valve (2).
  17. Remove trim tool assembly EN 45680-411 from the engine block.
  18. Remove any material shavings that may be found on the metal shaving catch plug EN 45680-413.
  19. Wipe the cylinder bore sleeve and surrounding areas free of any powder residue and then remove the metal shaving catch plug EN 45680-413.
    20. Fig 9: Checking Cylinder Block Deck Surface With Straight Edge
    GM1415604Courtesy of GENERAL MOTORS CORP.
  20. Install a straight edge on the cylinder block perpendicular to the crankshaft center line.
  21. Using a light, illuminate the backside of the straight edge.
    22. Fig 10: View Of Improperly Cut Cylinder Bore Sleeve
    GM1415606Courtesy of GENERAL MOTORS CORP.
  22. Looking at the front of the straight edge, check to see if light is protruding through the bottom of the straight edge and the top of the cylinder bore sleeve flange. If light is present of either side or both sides of the cylinder bore sleeve, the cylinder bore sleeve is cut incorrectly and a new cylinder bore sleeve needs to be installed.
    23. Fig 11: View Of For Properly Cut Cylinder Bore Sleeve
    GM1415607Courtesy of GENERAL MOTORS CORP.
  23. Looking at the front of the straight edge, check to see if light is protruding through the bottom of the straight edge and the top of the cylinder block deck surface. If light is present on both sides of the cylinder block, the cylinder bore sleeve is cut correctly.
  24. Proceed to the next bore sleeve to be trimmed repeating steps 10-23 if necessary.
