Crankshaft Balancer Removal: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

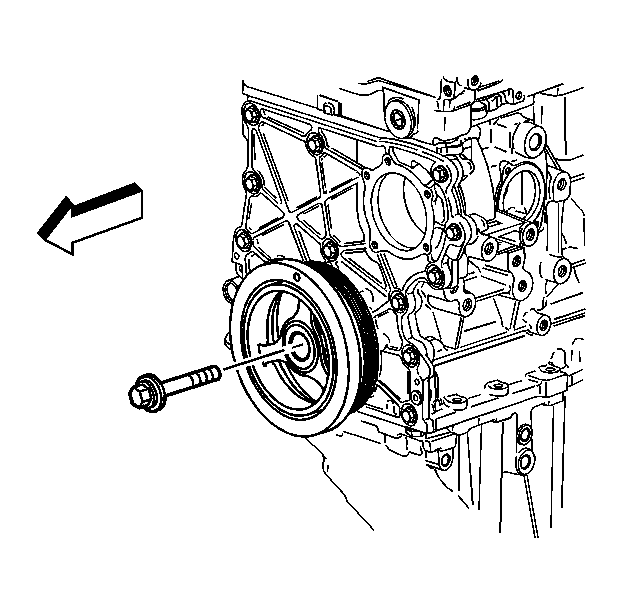

    Fig 1: Removing Crankshaft Balancer Bolt
    GM869913Courtesy of GENERAL MOTORS CORP.
  1. Remove the crankshaft balancer bolt.
    2. Fig 2: Installing J 41816-2 Onto End Of Crankshaft
    GM869916Courtesy of GENERAL MOTORS CORP.
  2. Install J 41816-2  into the end of the crankshaft. See Special Tools and Equipment .
    3. IMPORTANT: Do not pull on outer edge of the crankshaft balancer.
  3. Use a three jaw puller to remove the crankshaft balancer.
  4. Remove J 41816-2  . See Special Tools and Equipment .
