Crankshaft Balancer Cleaning and Inspection

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

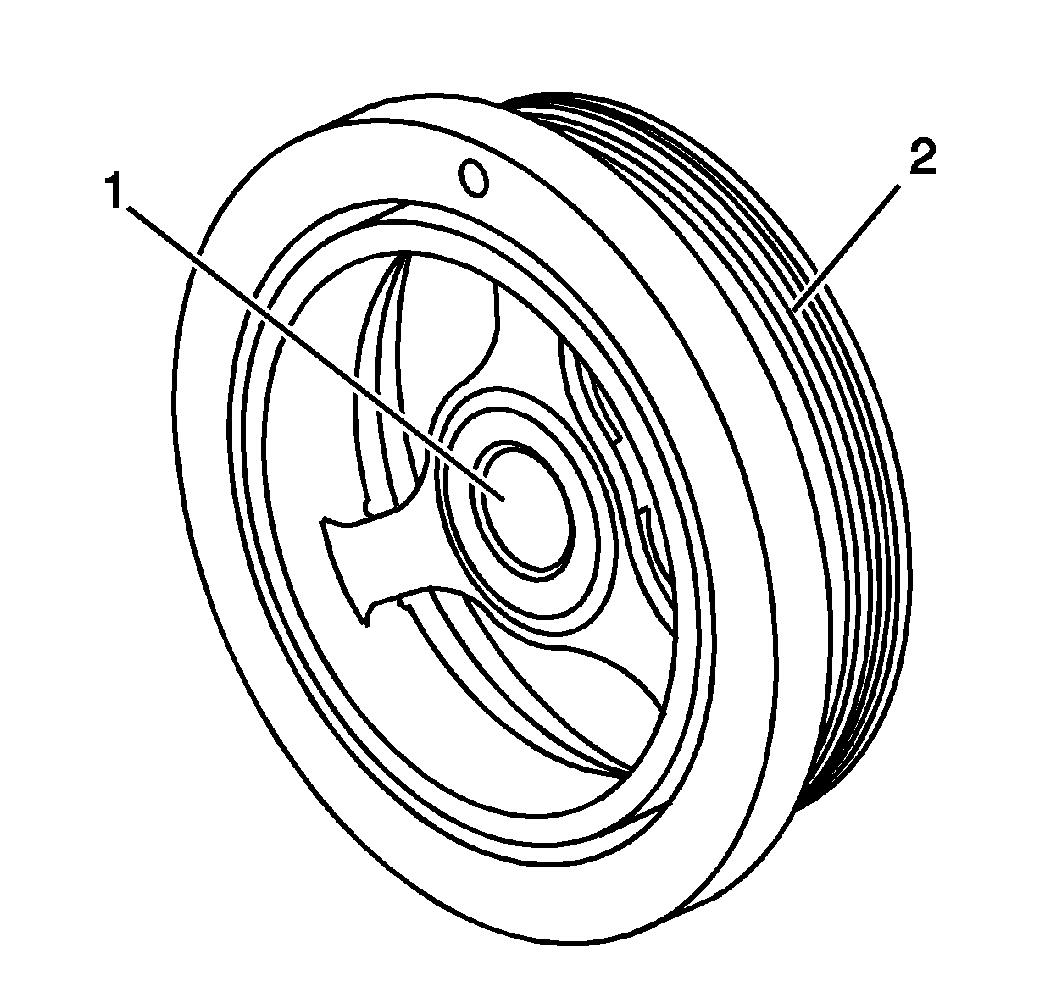

    Fig 1: Inspecting Crankshaft Balancer
    GM856228Courtesy of GENERAL MOTORS CORP.
  1. Inspect the crankshaft balancer sealing area for grooves, nicks, or burs (1).
  2. Inspect the crankshaft balancer belt ribs for dents or damage (2).
  3. Replace the crankshaft balancer if damage is present.
