Splice Pack SP201
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

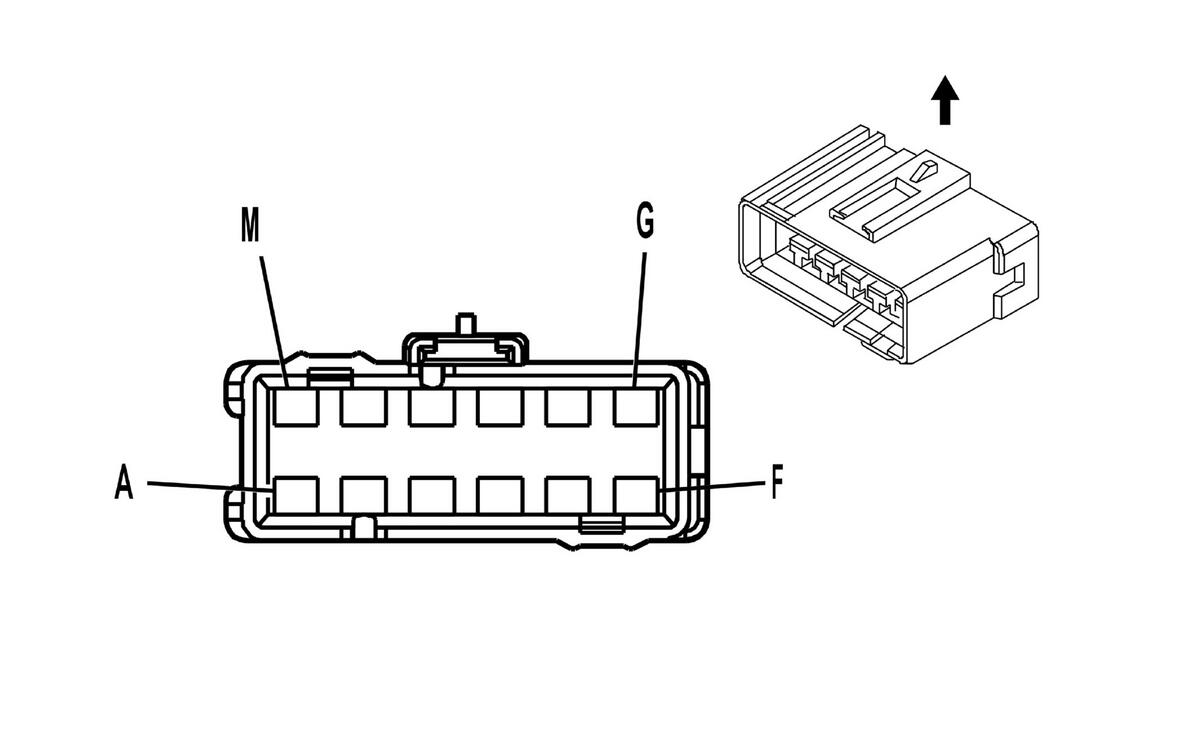

Splice Pack SP201 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BK | 2250 | Ground |
| B | BK | 2250 | Ground |
| C | BK | 2250 | Ground |
| D | - | - | Not Used |
| E | BK | 2250 | Ground |
| F | BK | 2250 | Ground |
| G | BK | 2250 | Ground |
| H | BK | 2250 | Ground |
| J | BK | 2250 | Ground |
| K | BK | 2250 | Ground |
| L | BK | 2250 | Ground |
| M | BK | 2250 | Ground |
