C313 (A50) Seat Motor Harness to Seat Harness - Driver

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

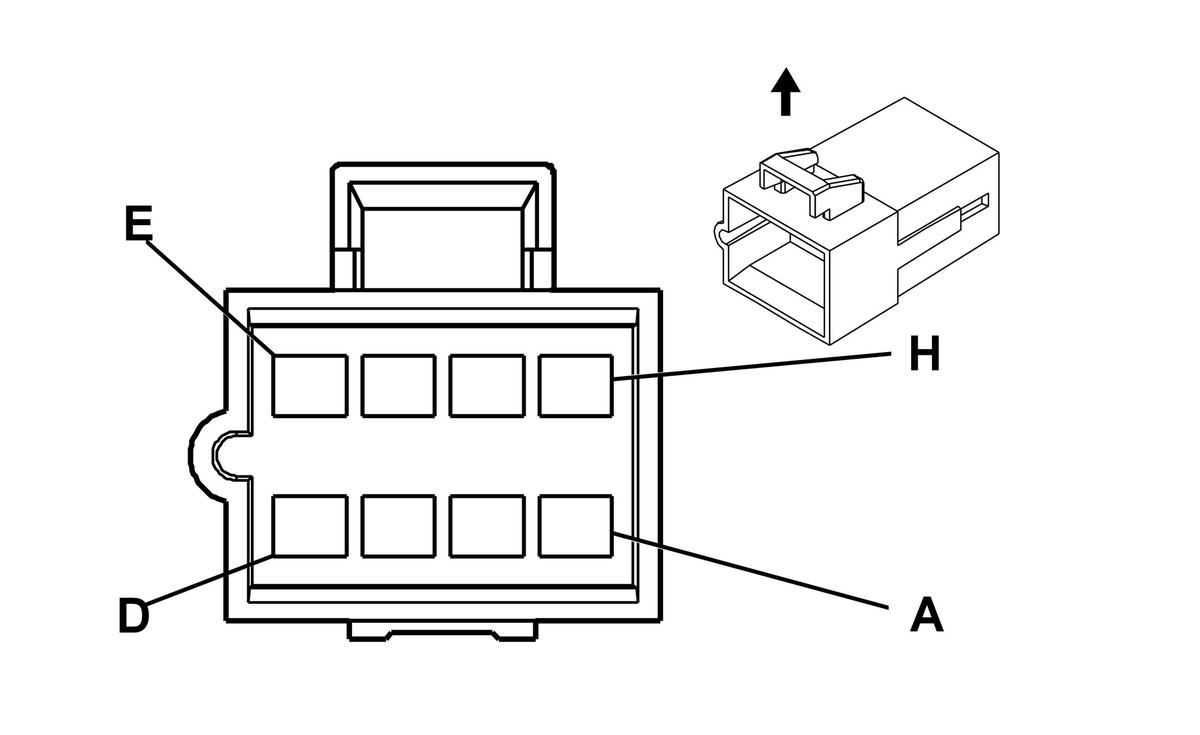

C313 (A50) Seat Motor Harness to Seat Harness - Driver - Connector End View

Courtesy of GENERAL MOTORS CORP.				Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12064998 8-Way F Metri-Pack 280 Series (BK)		Connector Part Information		12066195 8-Way M Metri-Pack 280 Series (BK)
Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	D-GN	286	Driver Seat Front Vertical Motor Up Control	A	D-GN	286	Driver Seat Front Vertical Motor Up Control
B	D-BU	287	Driver Seat Front Vertical Motor Down Control	B	D-BU	287	Driver Seat Front Vertical Motor Down Control
C	L-BU	283	Driver Seat Rear Vertical Motor Down Control	C	L-BU	283	Driver Seat Rear Vertical Motor Down Control
D	YE	282	Driver Seat Rear Vertical Motor Up Control	D	YE	282	Driver Seat Rear Vertical Motor Up Control
E	L-GN	284	Driver Seat Horizontal Motor Rearward Control	E	L-GN	284	Driver Seat Horizontal Motor Rearward Control
F	TN	285	Driver Seat Horizontal Motor Forward Control	F	TN	285	Driver Seat Horizontal Motor Forward Control
G	L-BU	277	Driver Seat Recline Motor Rearward Control	G	L-BU	277	Driver Seat Recline Motor Rearward Control
H	L-GN	276	Driver Seat Recline Motor Forward Control	H	L-GN	276	Driver Seat Recline Motor Forward Control
