Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

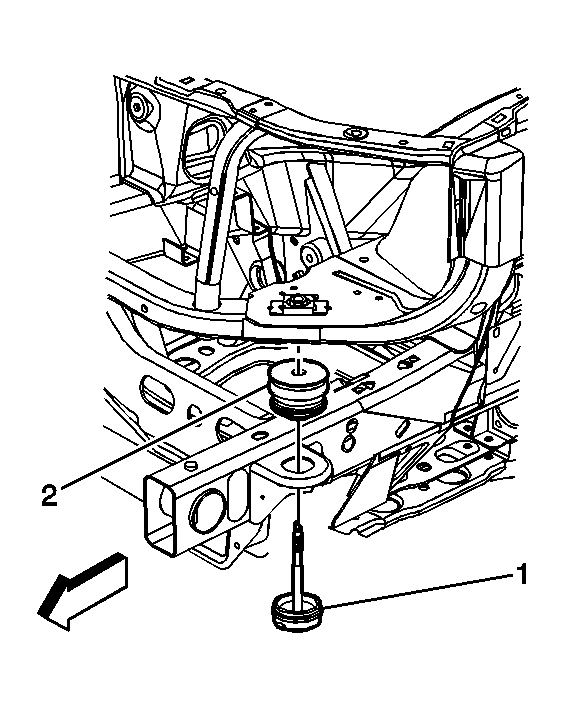

Fig 1: Installing Frame Lower Cushions

Courtesy of GENERAL MOTORS CORP.

Install the upper cushions (2) to the vehicle.
Raise the frame slightly on the hoist.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the lower cushions, retainers, and bolts to the 5 body mount locations.
Tighten: Tighten the bolts to 80 N.m (59 lb ft).

Fig 2: Installing Radiator Support Lower Cushion

Courtesy of GENERAL MOTORS CORP.

Install the lower cushion, retainer, and bolt to the radiator support.
Tighten: Tighten the bolts to 80 N.m (59 lb ft).
