Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
Remove the engine shield mounting bolts.

Fig 1: Removing/Installing Engine Shield
Courtesy of GENERAL MOTORS CORP.
Remove the engine shield.

Fig 2: Removing Rear Lower Control Arm Bracket To Frame Mounting Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the rear lower control arm bracket to frame mounting bolts.

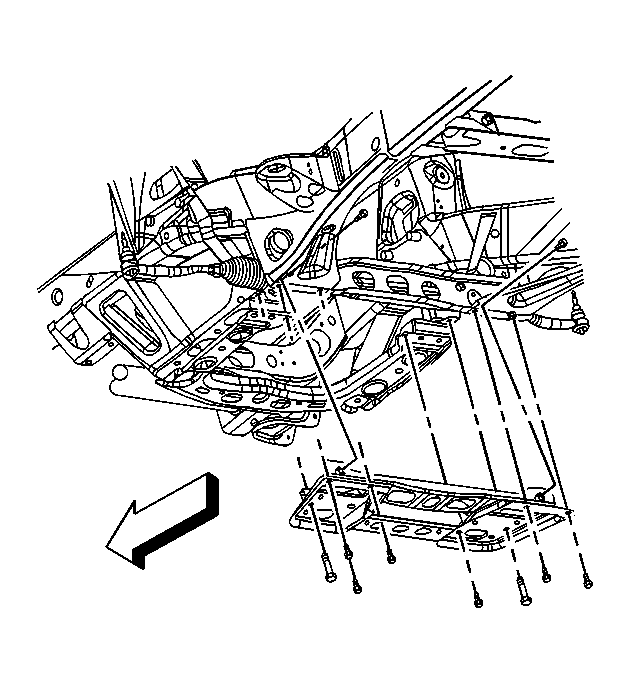

Fig 3: Removing Steering Gear Crossmember Mounting Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the steering gear crossmember mounting bolts.
Remove the steering gear crossmember.
