Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying Console Assembly
    GM741613Courtesy of GENERAL MOTORS CORP.
  1. Remove the floor console. Refer to Console Replacement in Instrument Panel, Gages, and Console.

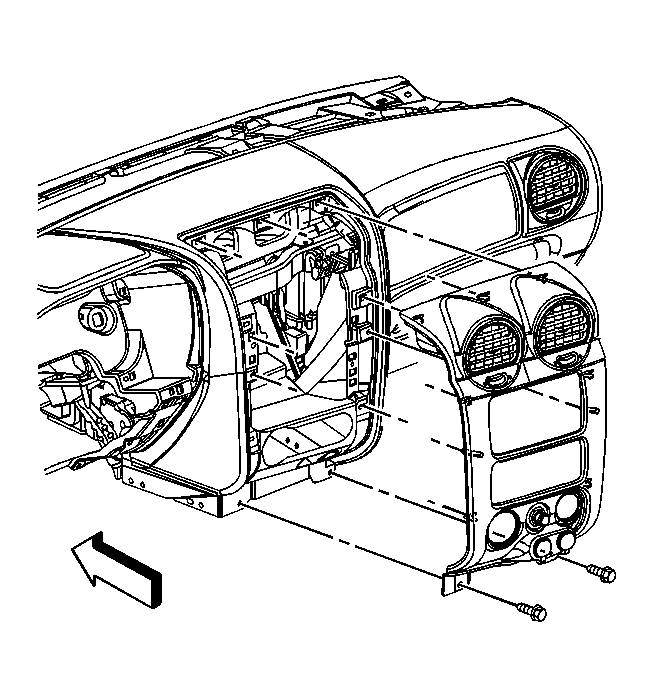

    2. Fig 2: Trim Plate - Instrument Panel (I/P) Accessory
    GM712822Courtesy of GENERAL MOTORS CORP.
  2. Remove the trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory (GMC) or Trim Plate Replacement - Instrument Panel (I/P) Accessory (Oldsmobile/Buick) in Instrument Panel, Gages, and Console.
  3. Push in on the two tabs securing the control switch to the trim plate.
  4. Move the control switch toward the front of the trim plate.
  5. Remove the control switch.
    6. Fig 3: Disconnecting/Connecting Control Switch Electrical Connector
    GM651279Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the electrical connector from the control switch.
