Transfer Case Control Component Views

WARNING: This page is about a different car, the 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

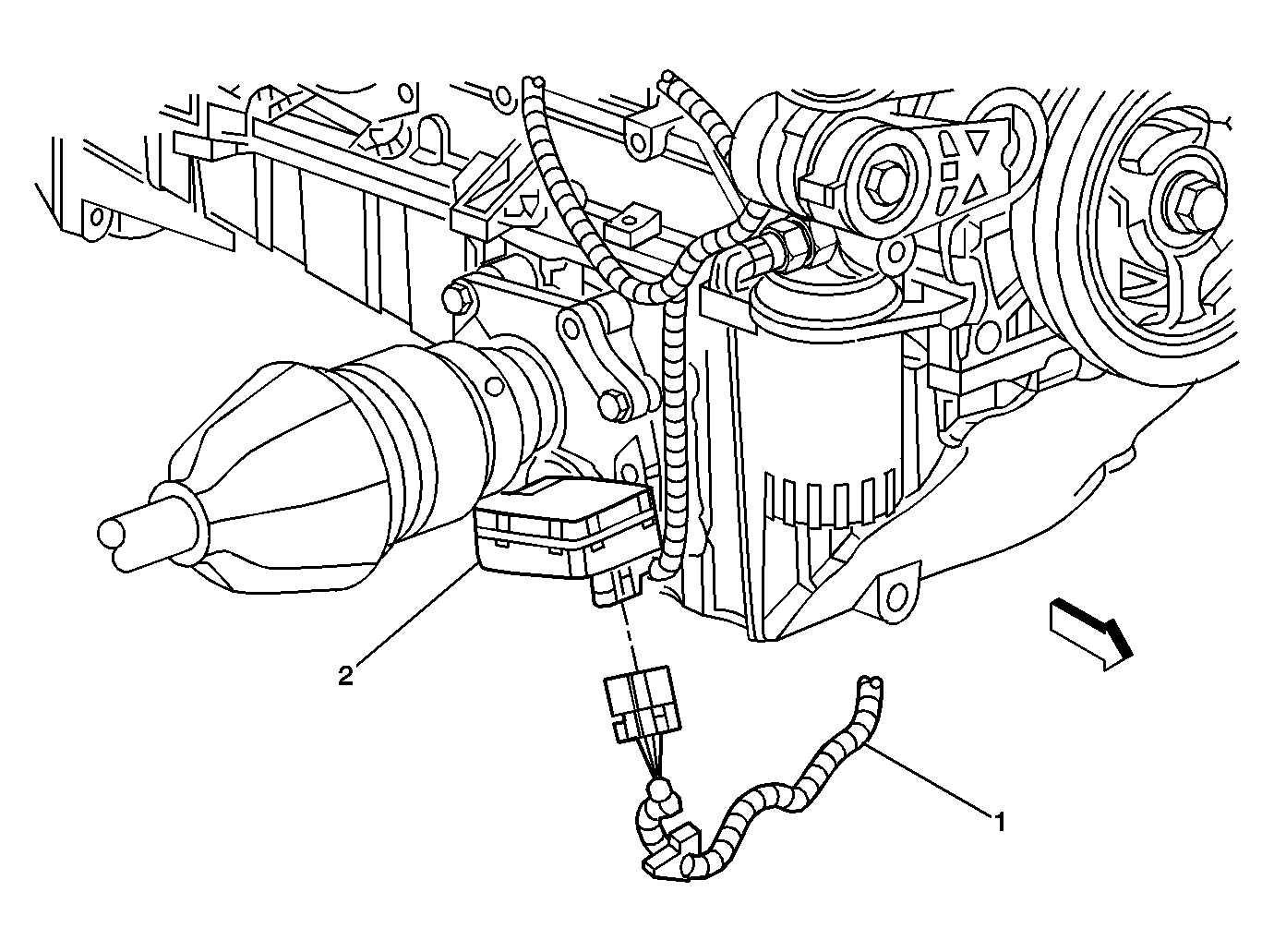

Fig 1: Engine, Lower Right

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Chassis Harness
2	Front Axle Actuator

Fig 2: Instrument Carrier Support, Lower Left

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transfer Case Shift Control Module
2	Instrument Carrier Support, Left Side

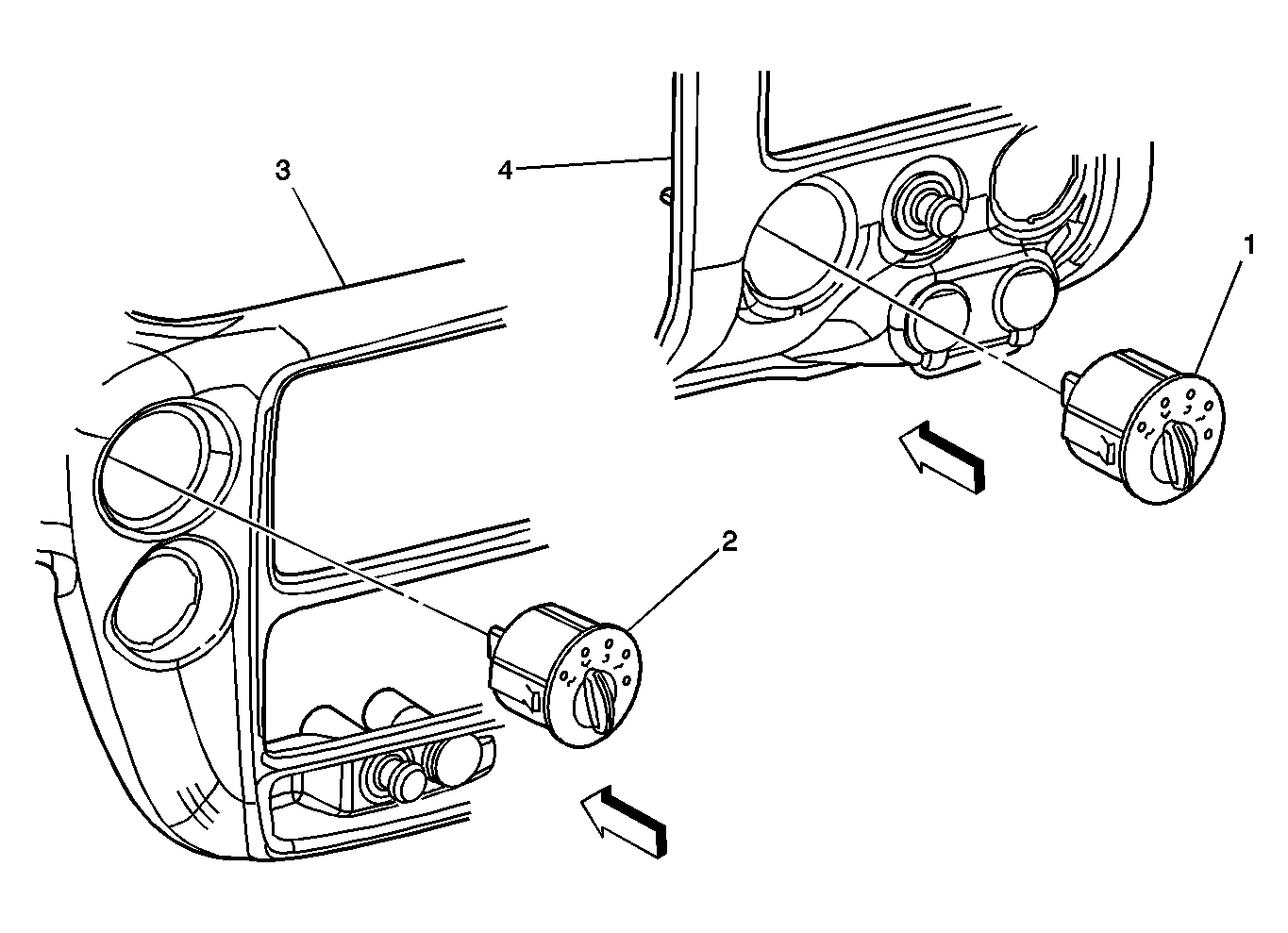

Fig 3: Transfer Case Select Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	GMC Transfer Case Select Switch, Oldsmobile similar
2	Chevrolet Transfer Case Select Switch
3	IP trim plate
4	IP trim plate

Fig 4: Engine Harness, Transfer Case

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transfer Case Motor Encoder Connector
2	C310, Engine to Chassis Harness
3	Engine Harness
4	Chassis Harness
