Transfer Case Control Component Views
WARNING: This page is about a different car, the 2004 Oldsmobile Bravada and 2004 Buick Rainier. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Transfer Case Shift Control Module |
| 2 |
Instrument Carrier Support, Left Side |

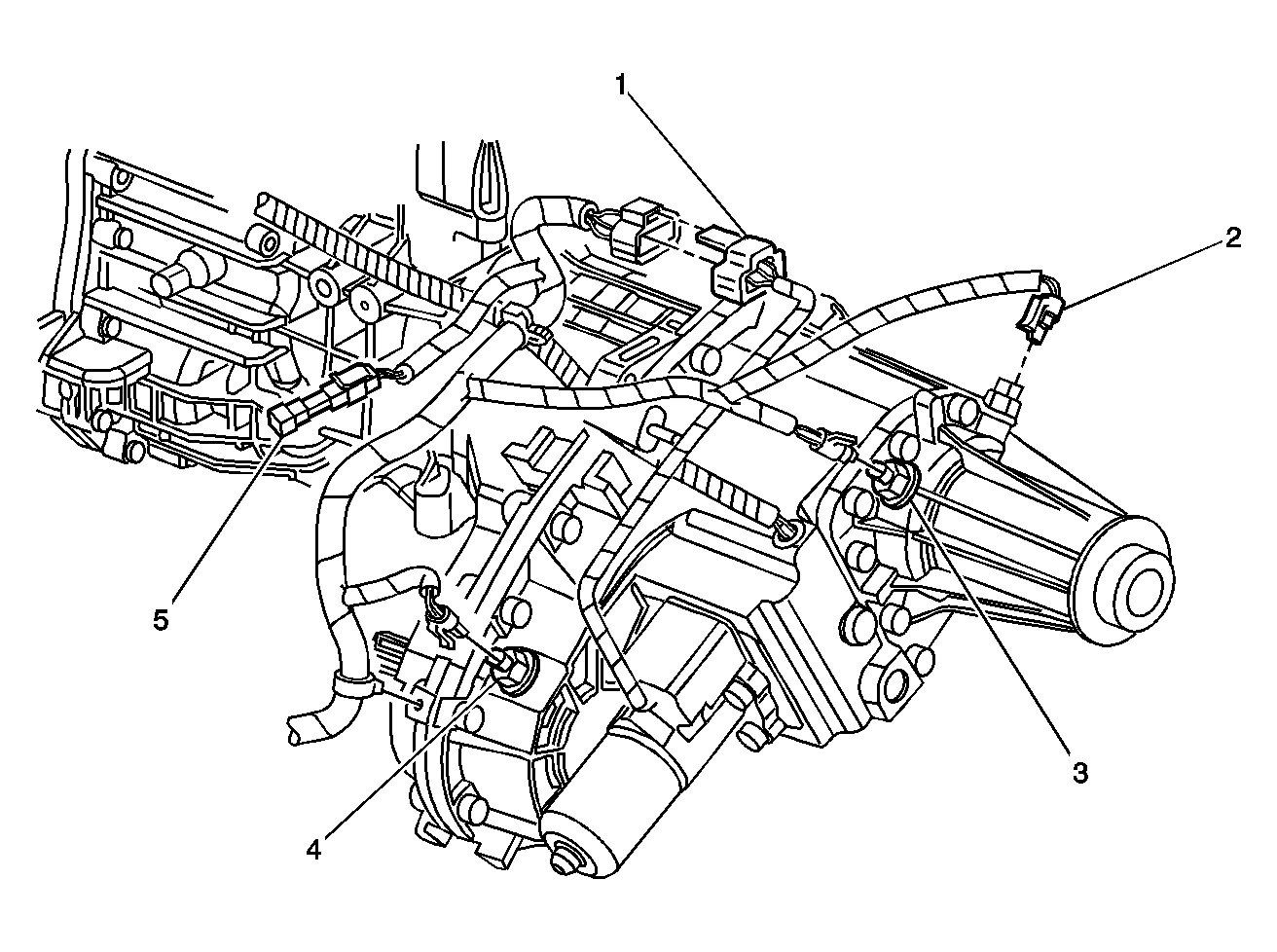

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Motor Encoder Connector |
| 2 |
Propshaft Speed Sensor (VSS)-RR |
| 3 |
Vehicle Speed Sensor (VSS) |
| 4 |
Propshaft Speed Sensor (VSS)-LF |
| 5 |
C310 |
