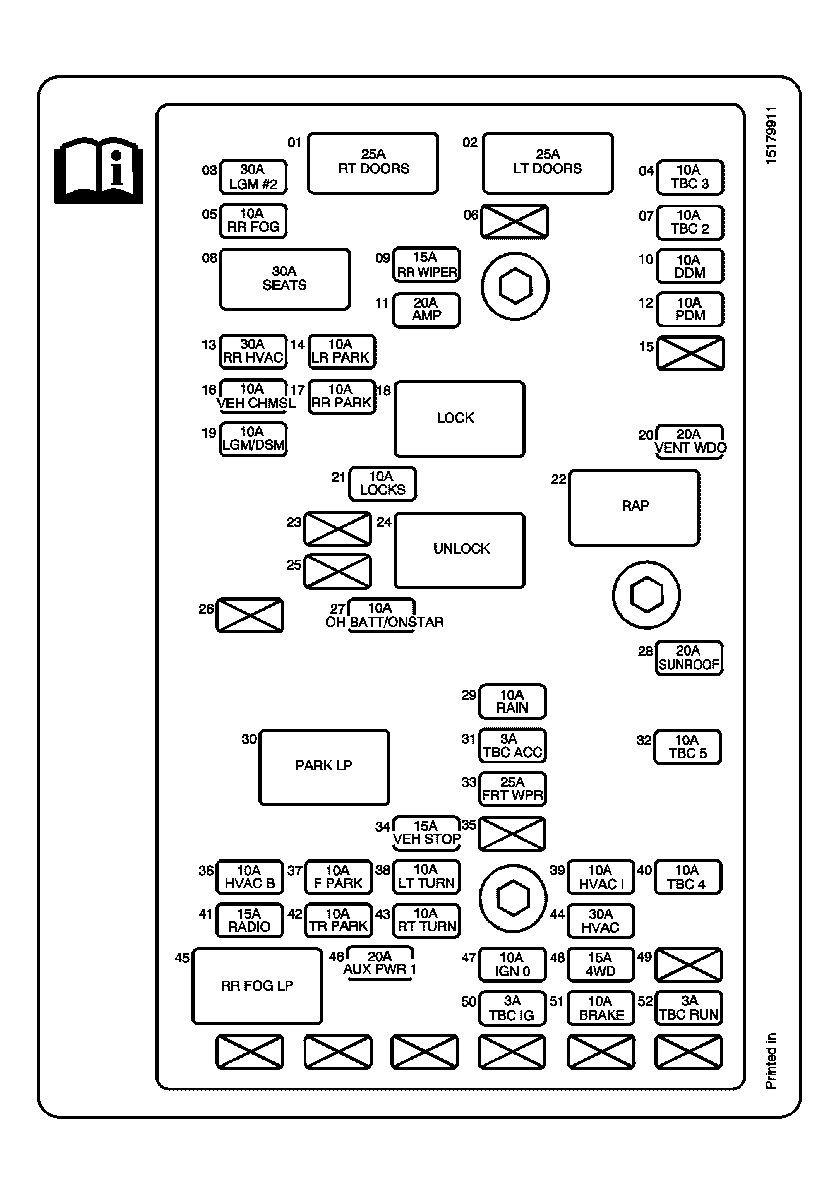

Fuse Block - Rear (LWB, Except XUV), Label
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
Fuse Block - Rear (LWB, Except XUV), Label Usage
| No. | Device | Rating | Description |
|---|---|---|---|
| 1 | RT DOORS Circuit Breaker | 25A | Front Passenger Door Module (FPDM), Right Rear Window Switch |
| 2 | LT DOORS Circuit Breaker | 25A | Driver Door Module (DDM), Left Rear Window Switch |
| 3 | LGM #2 Fuse | 30A | Liftgate Module |
| 4 | TBC 3 Fuse | 10A | Body Control Module (BCM) |
| 5 | RR FOG Fuse | 10A | Rear Fog Lamp |
| 6 | - | - | Not Used |
| 7 | TBC 2 Fuse | 10A | Body Control Module (BCM) |
| 8 | SEATS Circuit Breaker | 30A | Memory Seat Module - Driver, Memory Seat Module - Front Passenger |
| 9 | RR WIPER | 15A | Rear Window Wiper Motor |
| 10 | DDM Fuse | 10A | Driver Door Module (DDM) |
| 11 | AMP Fuse | 20A | Audio Amplifier |
| 12 | PDM Fuse | 10A | Front Passenger Door Module (FPDM) |
| 13 | RR HVAC Fuse | 30A | Blower Motor - Auxiliary, Blower Motor Control Processor - Auxiliary |
| 14 | LR PARK Fuse | 10A | License Lamps and Left Tail Lamp |
| 15 | - | - | Not Used |
| 16 | VEH CHMSL Fuse | 10A | Center High-Mounted Stop Lamp (CHMSL) |
| 17 | RR PARK Fuse | 10A | Right Tail Lamp Assembly |
| 18 | LOCK Relay | - | Rear Door Lock Actuators |
| 19 | LGM/DSM Fuse | 10A | Memory Seat Module - Driver, Liftgate Module, and (Export Only with BAE) Cobra Intrusion Sensor and Inclination Sensor |
| 20 | VENT WDO Fuse | 20A | Retained Accessory Power (RAP) Relay |
| 21 | LOCKS Fuse | 10A | LOCK Relay and UNLOCK Relay |
| 22 | RAP Relay | - | Quarter-Glass Switches and Actuators, Sunroof Module |
| 23 | - | - | Not Used |
| 24 | UNLOCK Relay | - | Rear Door Lock Actuators |
| 25-26 | - | - | Not Used |
| 27 | OH BATT/ONSTAR Fuse | 10A | Garage Door Opener, Voice Recorder, Digital Video Disc (DVD) Player |
| 28 | SUNROOF | 20A | Sunroof Module |
| 29 | RAIN Fuse | 10A | Outside Moisture Sensor, Digital Video Disc (DVD) Player |
| 30 | PARK LP Relay | - | LR PARK, RR PARK, F PARK, and TR PARK Fuses |
| 31 | TBC ACC Fuse | 3A | Body Control Module (BCM) |
| 32 | TBC 5 Fuse | 10A | Body Control Module (BCM) |
| 33 | FRT WPR Fuse | 25A | Windshield Wiper Motor |
| 34 | VEH STOP Fuse | 15A | Tail Lamps, Powertrain Control Module (PCM), Throttle Actuator Control (TAC) Module |
| 35 | - | - | Not Used |
| 36 | HVAC B Fuse | 10A | HVAC Control Module, HVAC Control Module - Auxiliary |
| 37 | F PARK Fuse | 10A | Turn Signal/Multifunction Switch, Marker Lamps, Front Park and Turn Signal Lamps |
| 38 | LT TURN Fuse | 10A | Instrument Panel Cluster, Driver Door Module (DDM), Tail Lamp Assembly - Left, Marker Lamp - Left, Park/Turn Signal Lamp - LF |
| 39 | HVAC I Fuse | 10A | HVAC Control Module, Turn Signal/Multifunction Switch, Air Temperature Actuator - Right, Defrost Actuator, Recirculation Actuator, Mode Actuator, Console Mode Actuator, Air Temperature Actuator - Left, Traction Control Switch, and (Olds Only) Electronic Brake Control Module (EBCM) |
| 40 | TBC 4 | 10A | Body Control Module (BCM) |
| 41 | RADIO | 15A | Radio |
| 42 | TR PARK | 10A | Trailer Connector |
| 43 | RT TURN | 10A | Instrument Panel Cluster, Front Passenger Door Module (FPDM), Tail Lamp Assembly - Right, Marker Lamp - Right, Park/Turn Signal Lamp - RF |
| 44 | HVAC | 30A | HVAC Control Module |
| 45 | RR FOG LP Relay | - | RR FOG LP Fuse |
| 46 | AUX PWR 1 Fuse | 20A | Auxiliary Power Outlet - Front, Auxiliary Power Outlet - Console |
| 47 | IGN 0 Fuse | 10A | Automatic Transmission, A/T Shift Lock Actuator, Powertrain Control Module (PCM), and (Export Only with BAE) Theft Deterrent Control Module |
| 48 | 4WD Fuse | 15A | Transfer Case Shift Control Switch, Automatic Level Control (ALC) Compressor, Front Axle Actuator |
| 50 | TBC IG Fuse | 3A | Body Control Module (BCM) |
| 51 | BRAKE Fuse | 10A | Electronic Brake Control Module (EBCM) |
| 52 | TBC RUN Fuse | 3A | Body Control Module (BCM) |
