Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Locating Rear Washer Hose Connection - Liftgate (XUV)

Courtesy of GENERAL MOTORS CORP.

Remove the wiper arm (3). Refer toWiper Arm Replacement - Rear (TrailBlazer, Envoy) or Wiper Arm Replacement - Rear (XUV) .

Fig 2: Removing/Installing Weather Strip At Wiper Motor Pivot Shaft

Courtesy of GENERAL MOTORS CORP.

Remove the weather strip (2) from the wiper motor pivot shaft (3).
Remove the interior trim panel from the endgate. Refer to Trim Panel Replacement - Endgate (Envoy XUV) in Body Rear End.
Remove the rear endgate window. Refer to Window Replacement - Endgate in Body Rear End.
Disconnect the wiper motor electrical connector.

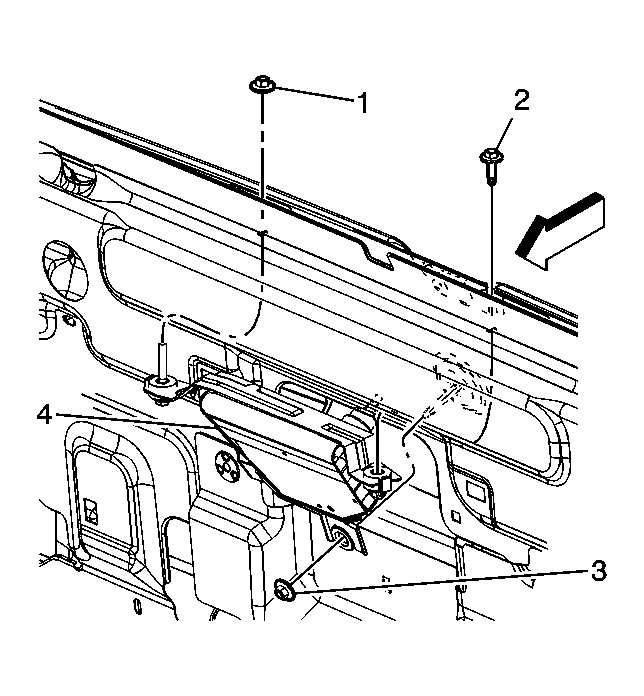

Remove the bolts (2) and the nuts (1, 3) retaining the wiper motor (4) to the endgate.

Fig 3: Identifying Rear Wiper Motor Fasteners (XUV)
Courtesy of GENERAL MOTORS CORP.
Remove the wiper motor assembly (5) from the endgate.

Fig 4: Removing/Installing Rear Wiper Motor (XUV)
Courtesy of GENERAL MOTORS CORP.

Fig 5: View Of Rear Wiper Motor (XUV)
Courtesy of GENERAL MOTORS CORP.
