Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Locating Rear Washer Hose Connection - Liftgate (XUV)

Courtesy of GENERAL MOTORS CORP.

Disconnect the rear wiper hose connection (6) at the end gate outer panel.

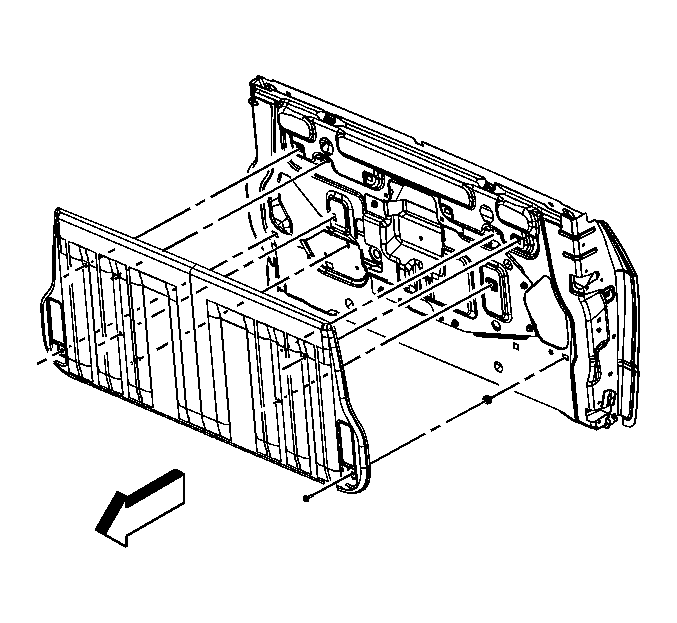

Fig 2: Removing/Installing End Gate Interior Trim Panel

Courtesy of GENERAL MOTORS CORP.

Remove the end gate interior trim panel. Refer to Trim Panel Replacement - Endgate (Envoy XUV) in Body Rear End.

Fig 3: Locating Rear Washer Hose Connection (TrailBlazer, Envoy)

Courtesy of GENERAL MOTORS CORP.

Remove the washer hose and grommet from the end gate outer panel.
Remove the end gate wiring harness from the end gate. Refer to Wiring Harness Replacement - Endgate in Body Rear End.
Cut the rear washer hose ends where the hose ends break out of the harness.
