Seat Belt Component Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

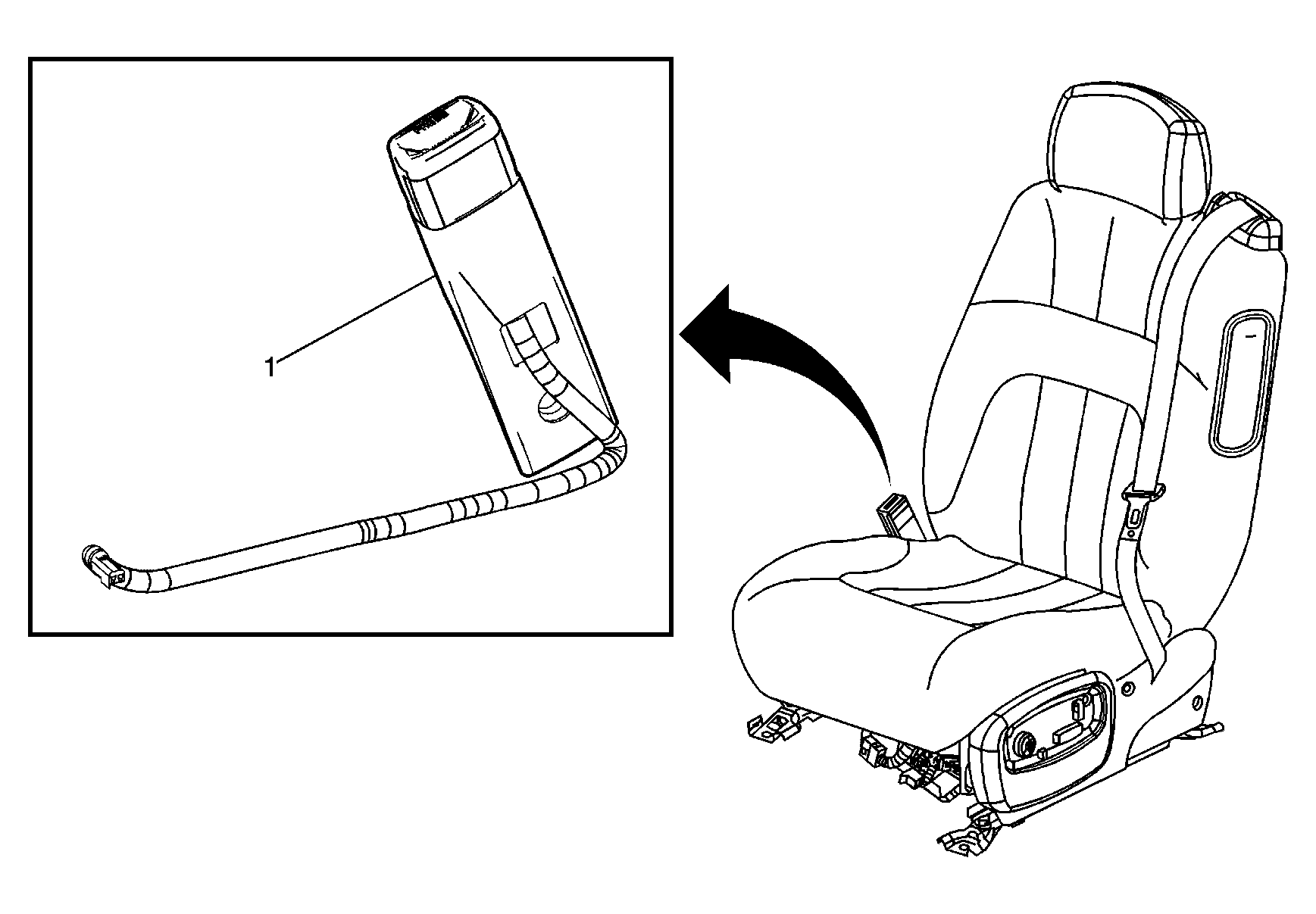

Fig 1: Seat Belt Buckle
GM1228684Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Belt Switch
