Transmission ID and VIN Derivative Location
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

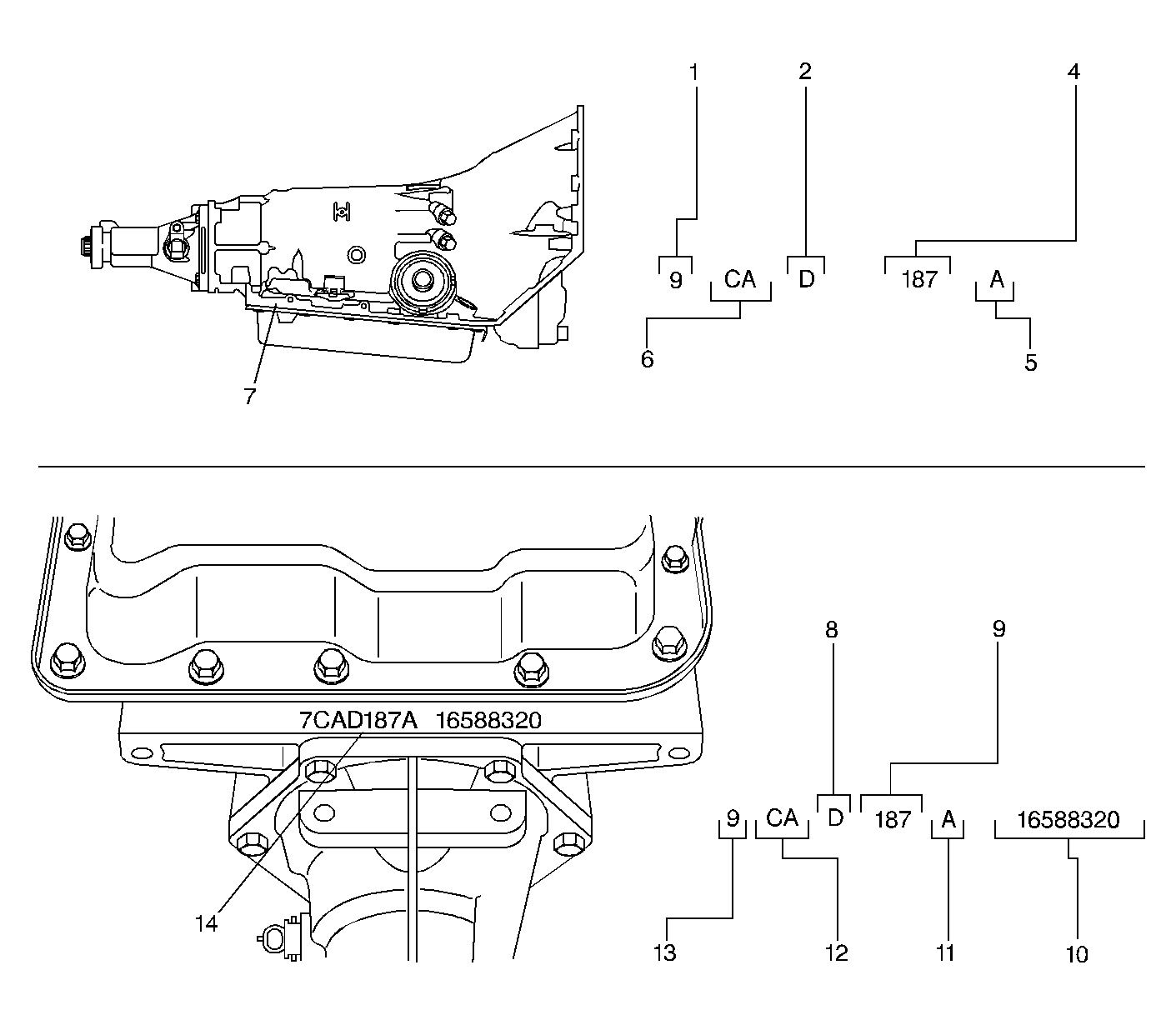

| Callout | Component Name |
|---|---|
| 1 | (0 = 2000) |
| 2 | Hydra-Matic 4L60-E |
| 4 | Julian Date (or Day of the Year) |
| 5 | Shift Built (A, B, J = First Shift; C, H, W = Second Shift) |
| 6 | Model |
| 7 | Transmission ID Location |
| 8 | Hydra-Matic 4L60-E |
| 9 | Julian Date (or Day of the Year) |
| 10 | Serial No. |
| 11 | Shift Built (A, B, J = First Shift; C, H, W = Second Shift) |
| 12 | Model |
| 13 | (0 = 2000) |
| 14 | Transmission ID Location |
