Body Rear End Schematics

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

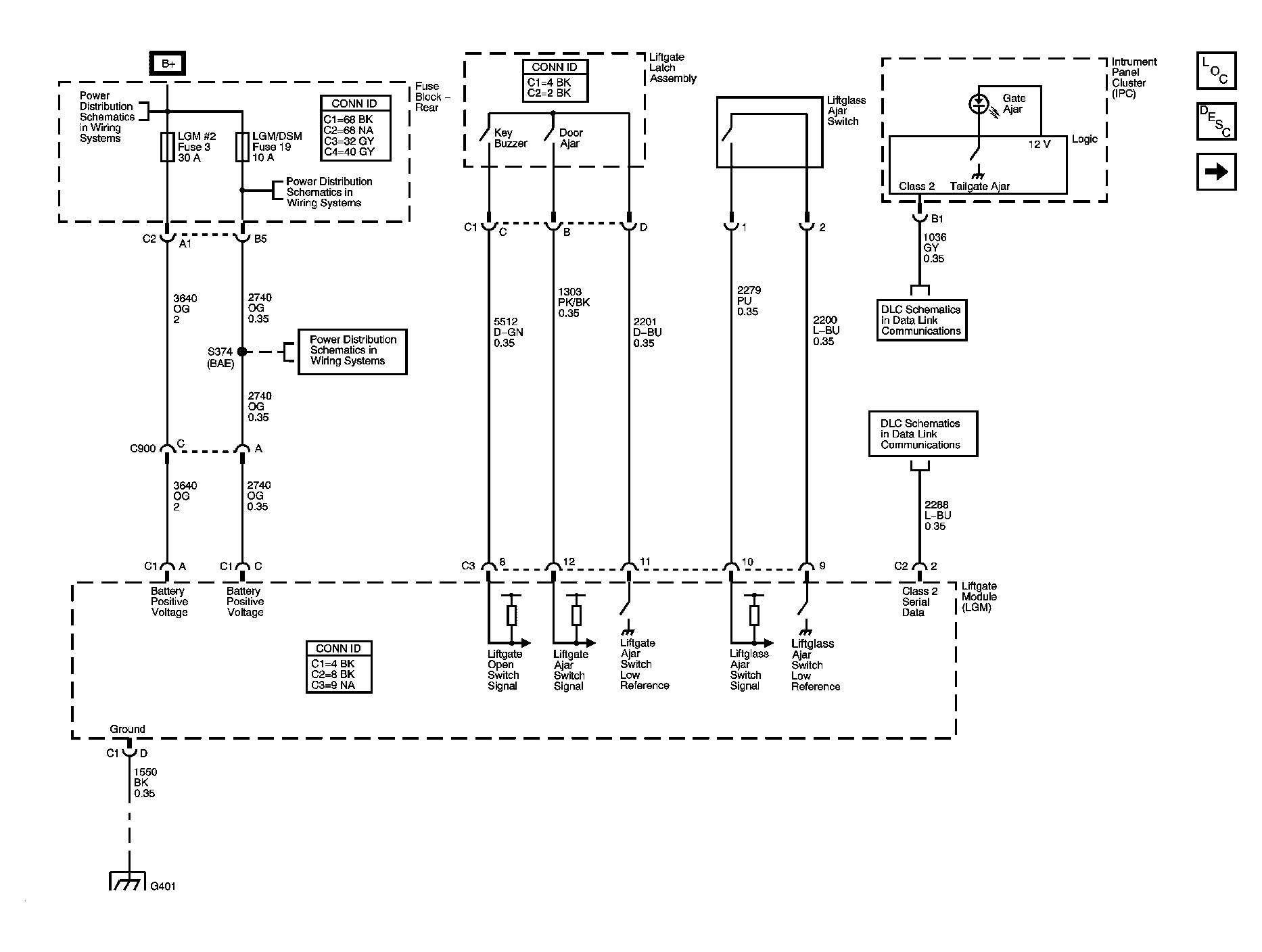

Fig 1: Liftgate Schematic - Except XUV

Courtesy of GENERAL MOTORS CORP.

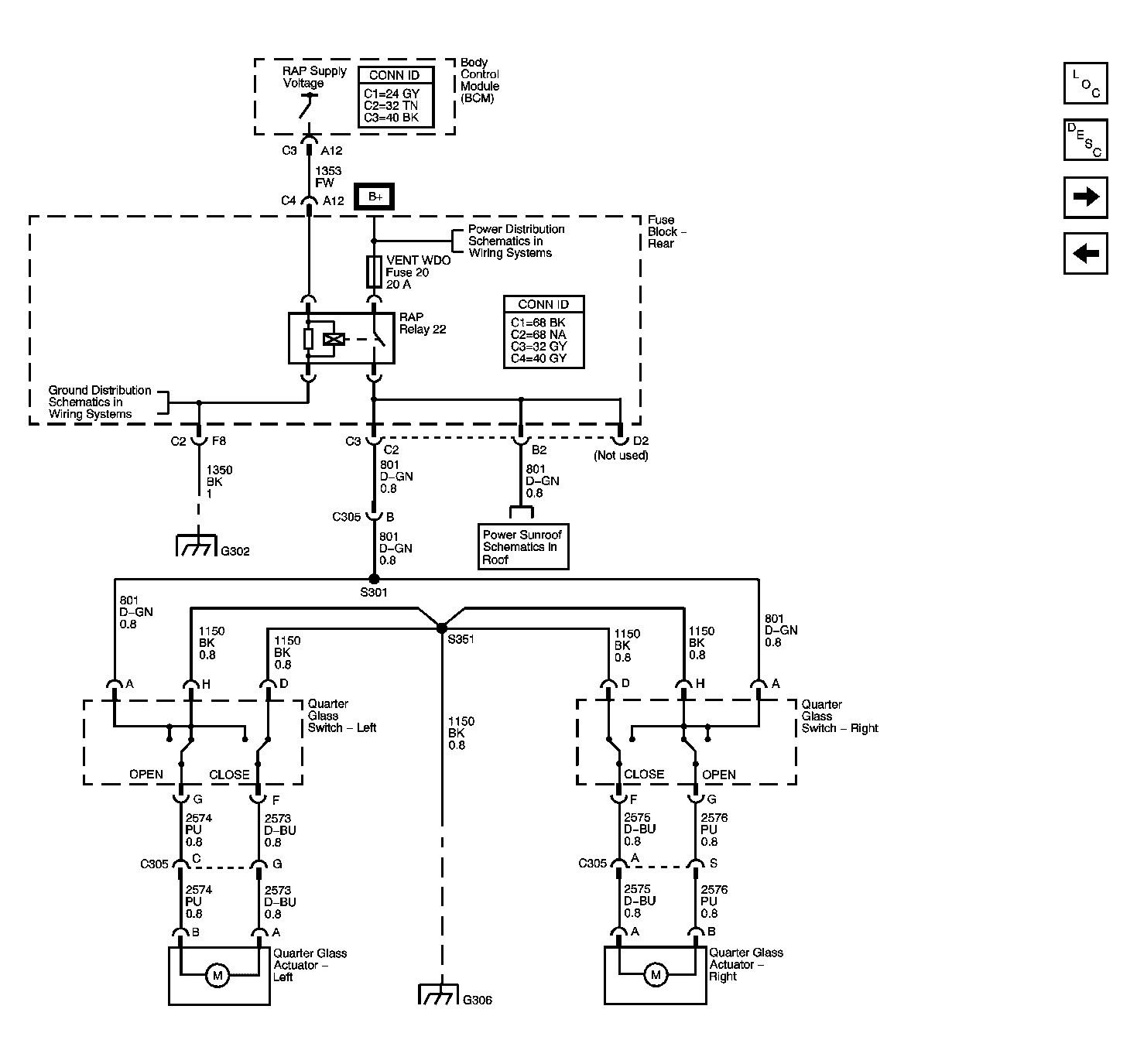

Fig 2: Quarter Glass Windows Schematic - Long Wheelbase (LWB) Except XUV

Courtesy of GENERAL MOTORS CORP.

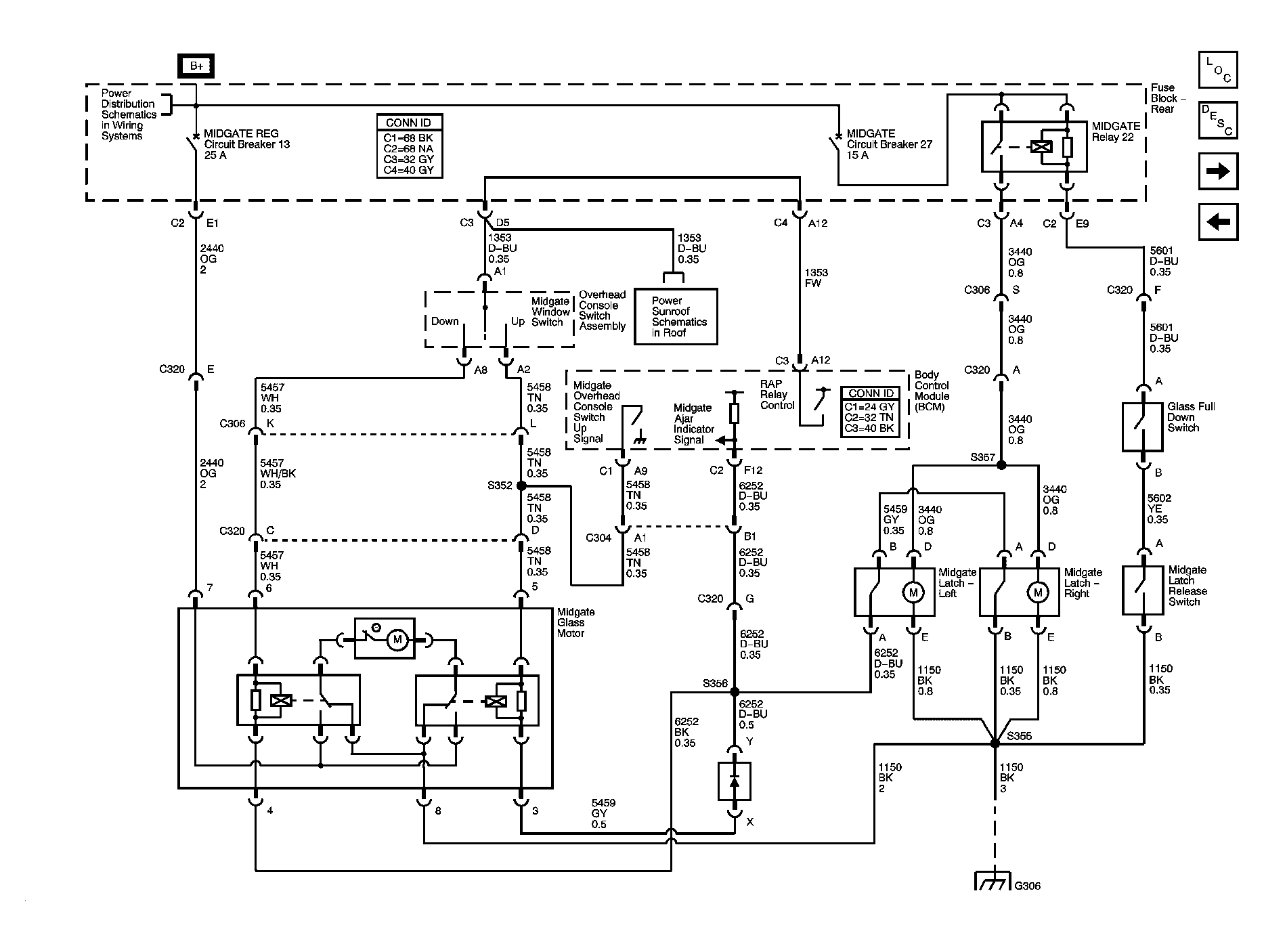

Fig 3: Midgate Schematic - XUV Only

Courtesy of GENERAL MOTORS CORP.

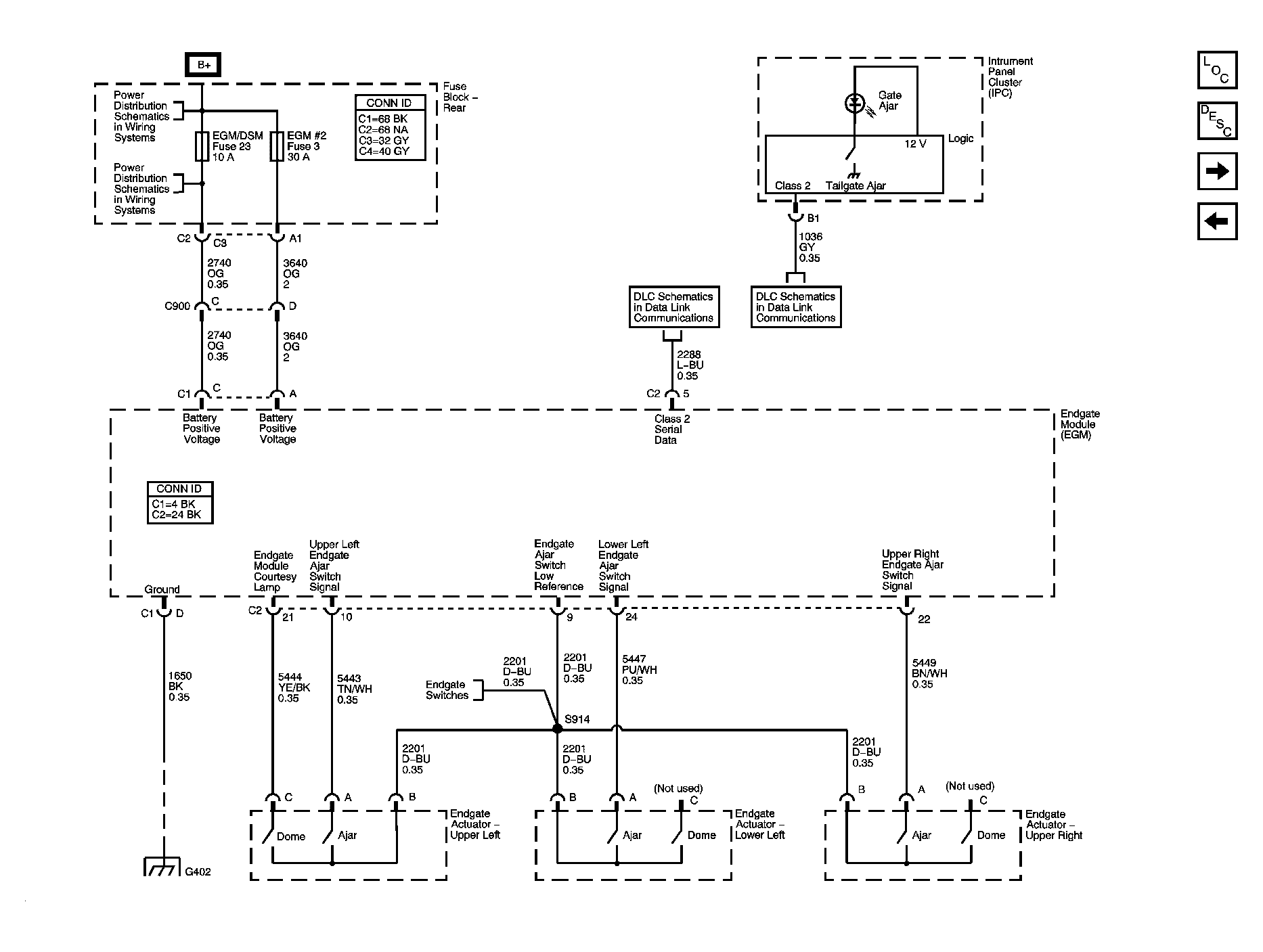

Fig 4: Endgate Power, Ground, and Gate Ajar Schematic - XUV Only

Courtesy of GENERAL MOTORS CORP.

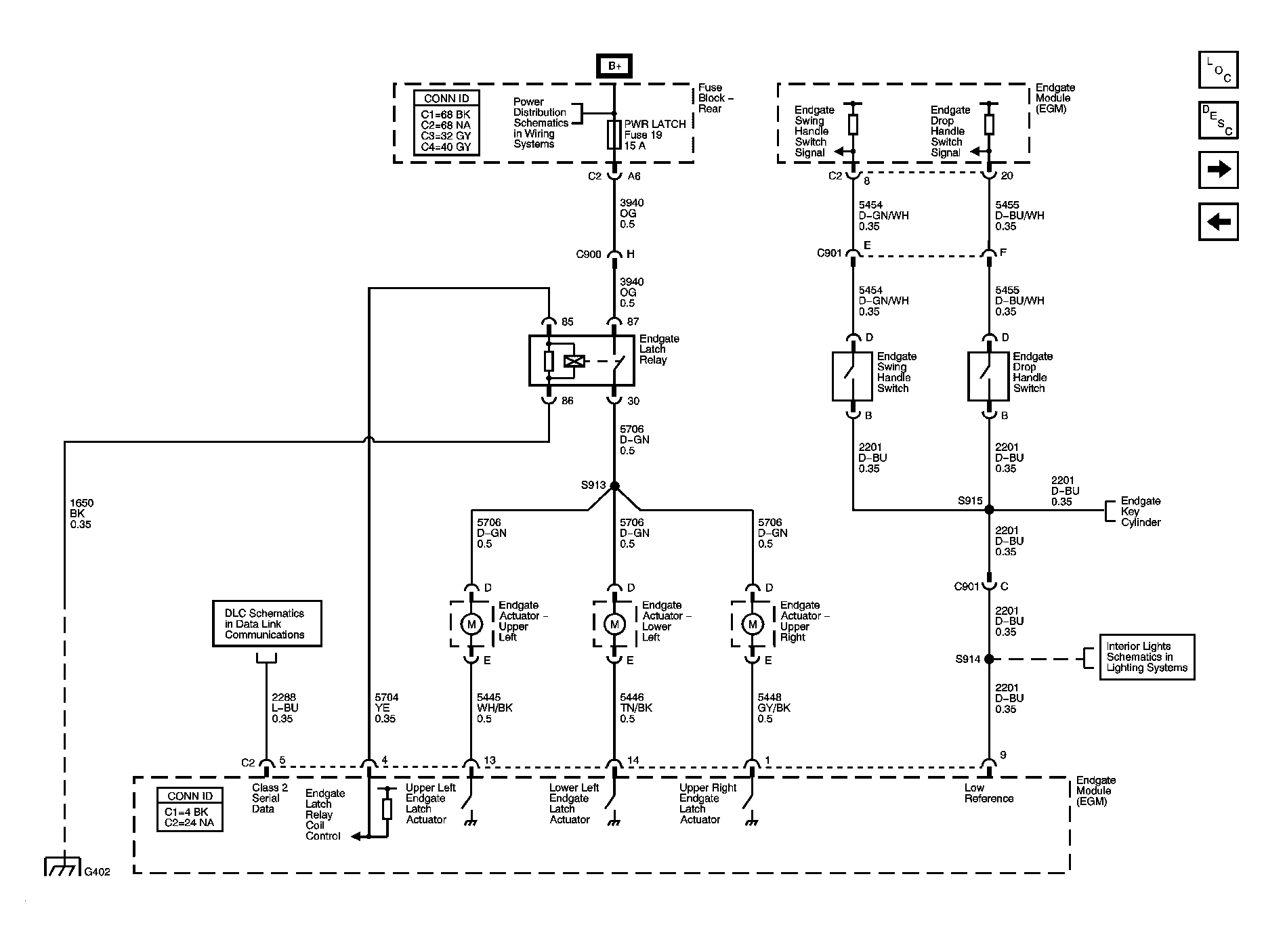

Fig 5: Endgate Release Schematic - XUV Only

Courtesy of GENERAL MOTORS CORP.

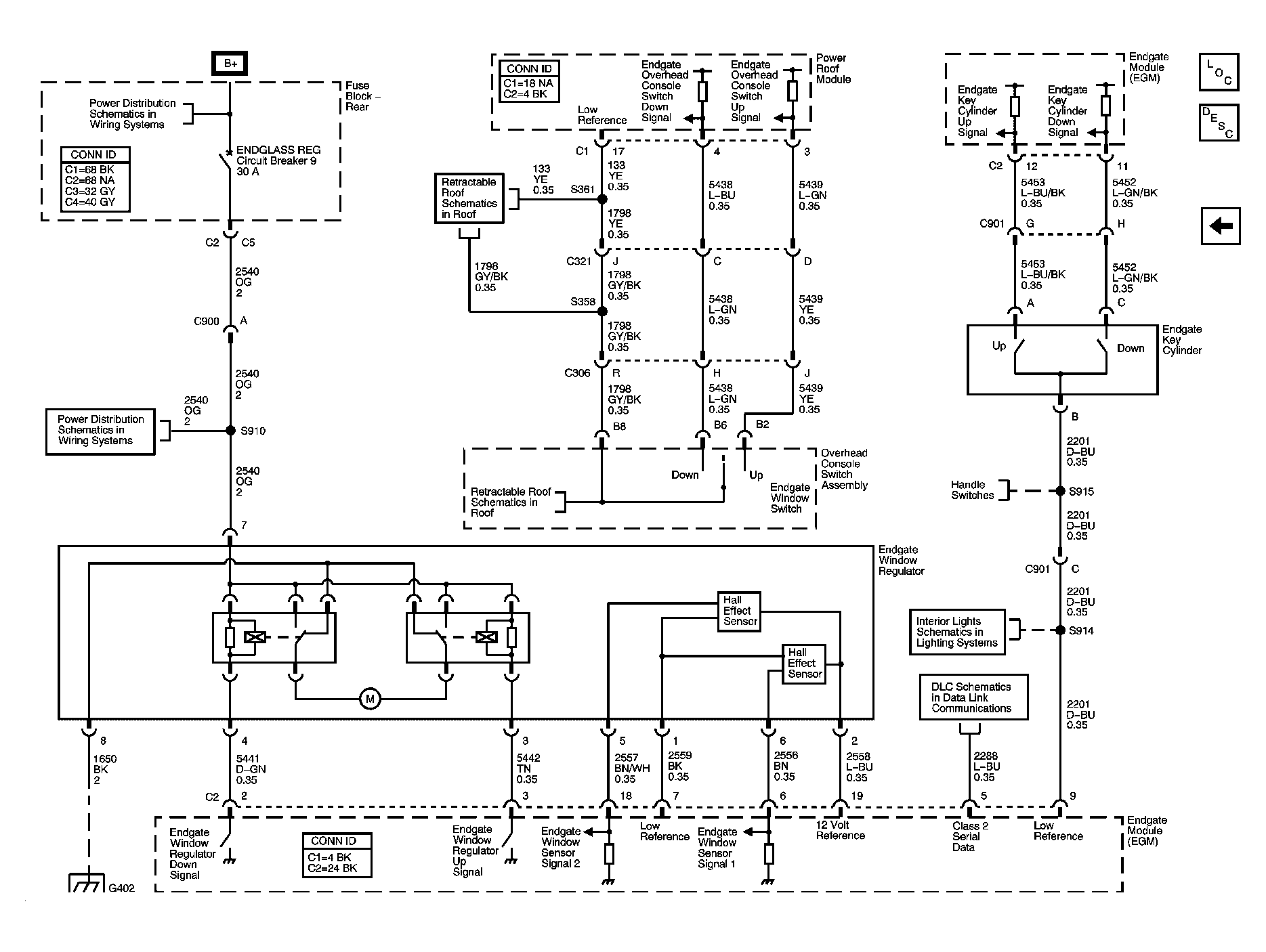

Fig 6: Endgate Window Controls Schematic - XUV Only

Courtesy of GENERAL MOTORS CORP.
