Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

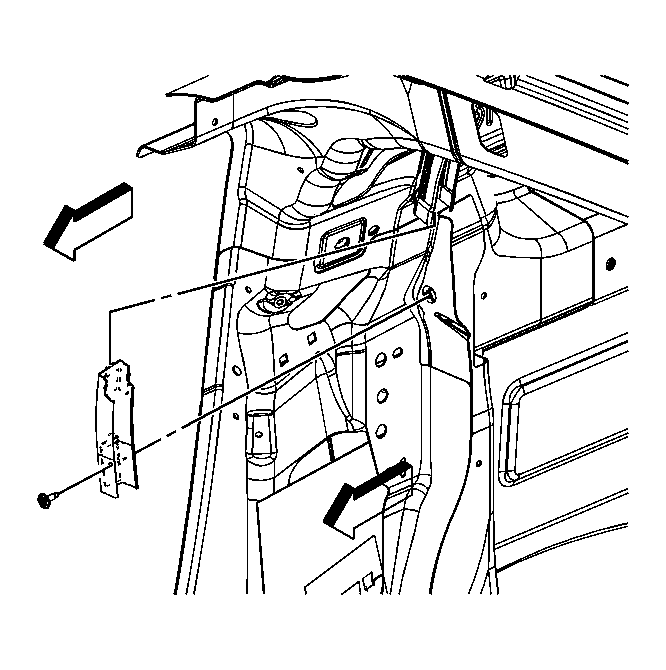

    Fig 1: Removing Midgate Window Channel Brackets
    GM1204238Courtesy of GENERAL MOTORS CORP.
  1. Open the midgate.
  2. Remove the midgate weather strip. Refer to Weatherstrip Replacement - Midgate .
  3. Remove the screw retaining the midgate window channel brackets to the body.
  4. Remove the midgate window channel brackets from the vehicle.
