Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the trim panel to the liftgate.

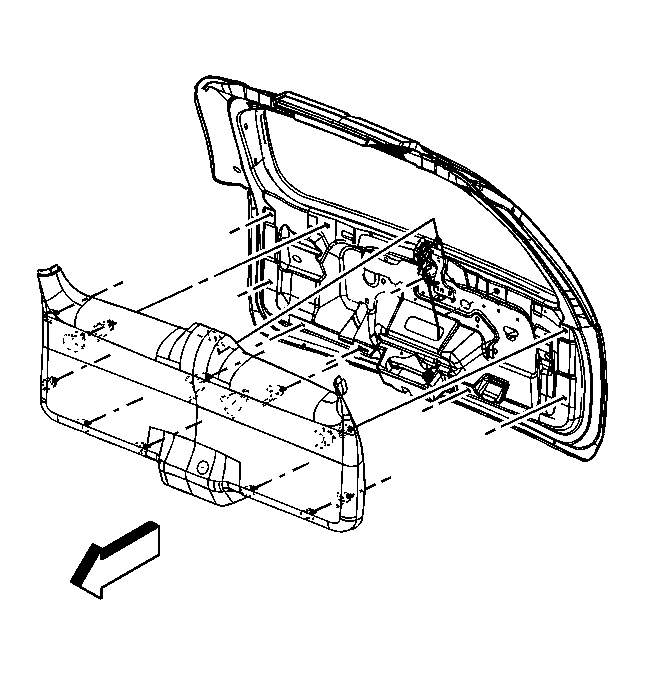

    2. Fig 1: Installing Liftgate Trim Panel
    GM1363306Courtesy of GENERAL MOTORS CORP.
  2. Ensure that the trim panel retainers are fully seated.
  3. Close the liftgate.
  4. Open the liftgate window.
  5. Install the push-pin retainer in the upper trim panel.
  6. Close the liftgate window.
  7. Install the upper liftgate garnish molding. Refer to Garnish Molding Replacement - Liftgate .
