Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

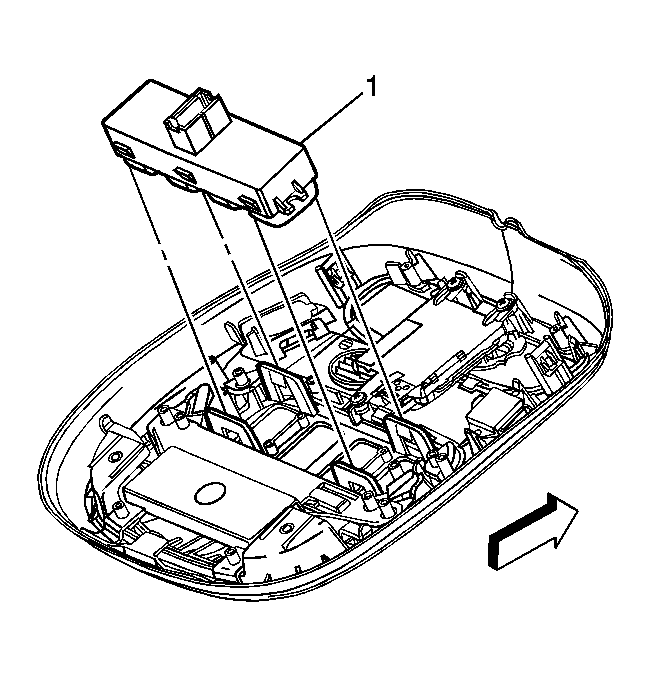

    Fig 1: Installing Switch To Console
    GM1199037Courtesy of GENERAL MOTORS CORP.
  1. Position and index the switch (1) to the console.
  2. Install the switch to the console ensuring the 4 retaining tabs are fully seated.

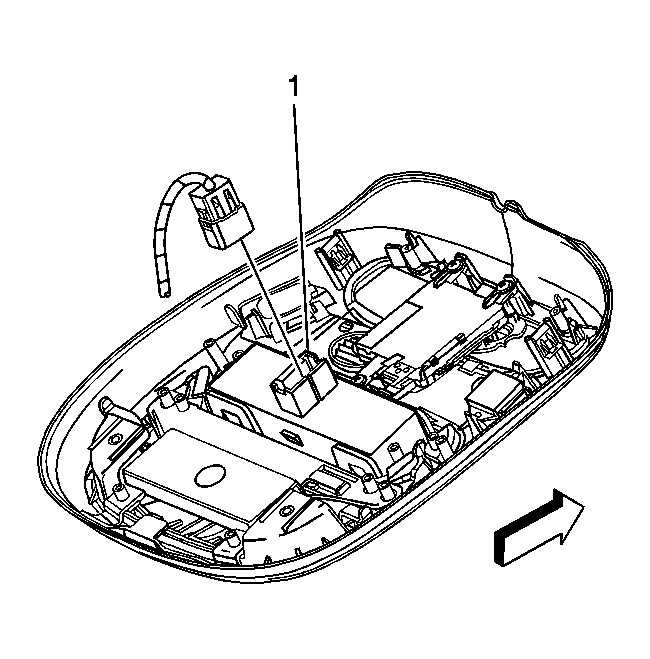

    3. Fig 2: Connecting Switch Electrical Connector
    GM1199035Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the switch (1).
  4. Install the overhead console. Refer to Console Replacement - Overhead (TrailBlazer, Envoy, Bravada) or Console Replacement - Overhead (Envoy XUV) .
