Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

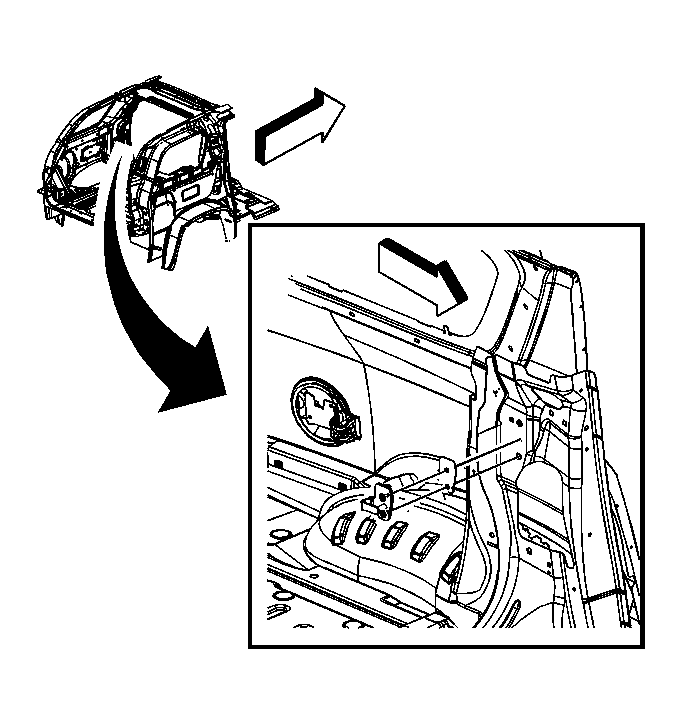

    Fig 1: Removing Midgate Latch Striker
    GM1204235Courtesy of GENERAL MOTORS CORP.
  1. Open the midgate.
  2. Remove the screws retaining the midgate latch striker to the body.
  3. Remove the midgate latch striker and shim (if equipped) from the vehicle.
