Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

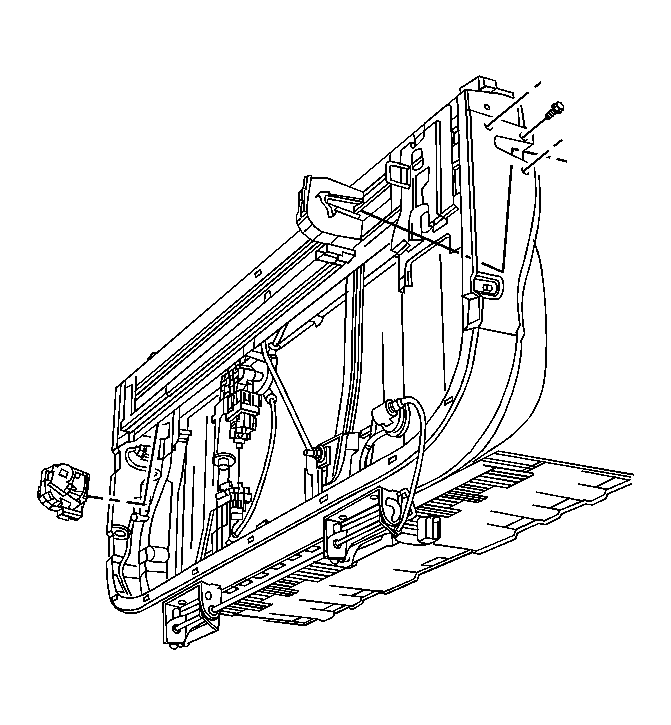

    Fig 1: Removing Midgate Latch
    GM1243188Courtesy of GENERAL MOTORS CORP.
  1. Lower the midgate window.
  2. Remove the midgate inner panel. Refer to Midgate Panel Replacement - Inner .
  3. Open the midgate. If the latches will not operate using the midgate latch release switch, then release the midgate latches manually. Refer to Opening the Midgate When There Is an Electrical Failure .
  4. Remove the midgate window. Refer to Window Replacement - Midgate .
  5. Remove the midgate window run channel(s). Refer to Window Channel Replacement - Midgate .
  6. Remove the screws retaining the latch to the midgate.
  7. Disconnect the electrical connector from the midgate latch.
  8. Remove the latch from the midgate.
