Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

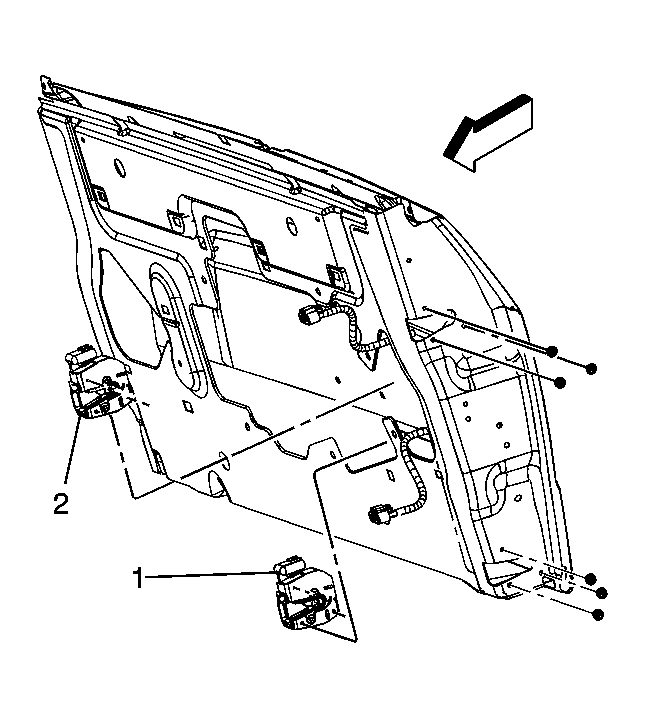

    Fig 1: Installing Endgate Lower Latch
    GM902561Courtesy of GENERAL MOTORS CORP.
  1. Install the latch (1) to the endgate.
  2. Connect the electrical connector to the latch assembly.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the screws retaining the latch assembly to the endgate.

    Tighten:  Tighten the latch screws to 10 N.m (89 lb in).

  4. Install the endgate inner reinforcement panel. Refer to Reinforcement Inner Panel Replacement - Endgate .
  5. Install the endgate trim panel. Refer to Trim Panel Replacement - Endgate (Envoy XUV) .
