Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

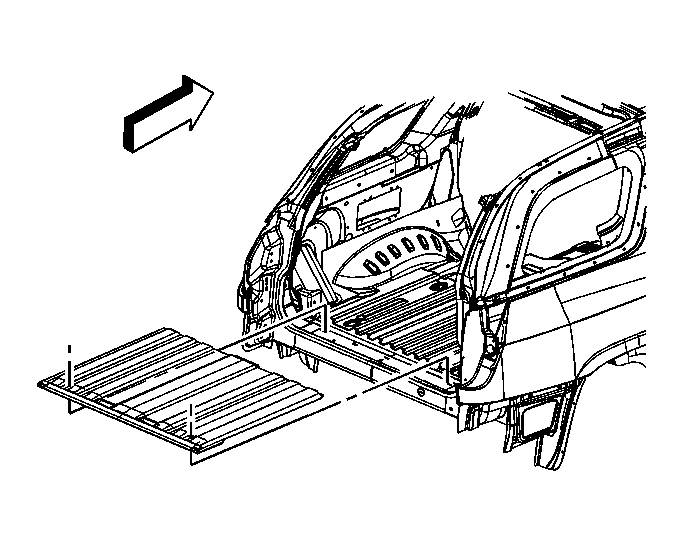

    Fig 1: Installing Cargo Mat
    GM1236757Courtesy of GENERAL MOTORS CORP.
  1. Position the cargo mat on the rear floor of the vehicle.
  2. Install the 2 fasteners by pressing them into place.
