Body Rear End Connectors

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
Endgate Actuator Connector End View - Lower Left (XUV Only)

GM647974Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326822
  • 5-Way F GT 150 Sealed 4.0 (BK)
Pin Wire Color Circuit No. Function
A PU/WH 5447 Lower Left Endgate Ajar Switch Signal
B D-BU 2201 Endgate Ajar Switch Low Reference
C - - Not Used
D D-GN 5706 Endgate Latch Control
E TN/BK 5446 Lower Left Endgate Latch Actuator
Endgate Actuator Connector End View - Upper Left (XUV Only)

GM647974Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326822
  • 5-Way F GT 150 Sealed 4.0 (BK)
Pin Wire Color Circuit No. Function
A TN/WH 5444 Endgate Module Courtesy Lamp
B D-BU 2201 Endgate Ajar Switch Low Reference
C YE/BK 5444 Endgate Module Courtesy Lamp
D D-GN 5706 Endgate Latch Control
E WH/BK 5445 Upper Left Endgate Latch Actuator
Endgate Actuator Connector End View - Upper Right (XUV Only)

GM647974Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326822
  • 5-Way F GT 150 Sealed 4.0 (BK)
Pin Wire Color Circuit No. Function
A BN/WH 5449 Upper Right Endgate Ajar Switch Signal
B D-BU 2201 Endgate Ajar Switch Low Reference
C - - Not Used
D D-GN 5706 Endgate Latch Control
E GY/BK 5448 Upper Right Endgate Latch Actuator
Endgate Drop Handle Switch Connector End View (XUV Only)

GM684972Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15366025
  • 2-Way F GT 150 Sealed 3.2 X 4.0 (GY)
Pin Wire Color Circuit No. Function
A - - Unavailable
B D-BU 2201 Endgate Ajar Switch Low Reference
C - - Unavailable
D D-BU/WH 5455 Endgate Drop Handle Switch Signal
Endgate Key Cylinder Connector End View (XUV Only)

GM646415Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326808
  • 3-Way F GT 150 Sealed 4.5 (BK)
Pin Wire Color Circuit No. Function
A L-BU/BK 5453 Endgate Key Cylinder Up Signal
B D-BU 2201 Endgate Ajar Switch Low Reference
C L-GN/BK 5452 Endgate Key Cylinder Down Signal
Endgate Latch Relay Connector End View (XUV Only)

GM535912Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129716
  • 4-Way F Metri-Pack 280 Series, Flexlock (GY)
Pin Wire Color Circuit No. Function
30 D-GN 5706 Endgate Latch Control
85 YE 5704 Endgate Latch Relay Coil Control
86 BK 1650 Ground
87 OG 3940 Battery Positive Voltage
Endgate Module (EGM) C1 Connector End View (XUV Only)

GM684908Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326631
  • 4-Way F Metri-Pack 280 Sealed 5.8 (BK)
Pin Wire Color Circuit No. Function
A OG 3640 Battery Positive Voltage
B PU 293 Rear Defog Element Supply Voltage
C OG/WH 2740 Battery Positive Voltage
D BK 1650 Ground
Endgate Module (EGM) C2 Connector End View (XUV Only)

GM39784Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129225
  • 24-Way F Micro-Pack 100 Series Sealed (NA)
Pin Wire Color Circuit No. Function
1 GY/BK 5488 Upper Right Endgate Latch Actuator
2 D-GN 5441 Endgate Window Regulator Down Signal
3 TN 5442 Endgate Window Regulator Up Signal
4 YE 5704 Endgate Latch Relay Coil Control
5 L-BU 2288 Class 2 Serial Data
6 BN 2556 Endgate Window Sensor Signal 1
7 BK 2559 Low Reference
8 D-GN/WH 5454 Endgate Swing Handle Switch Signal
9 D-BU 2201 Endgate Ajar Switch Low Reference
10 TN/WH 5443 Upper Left Endgate Ajar Switch Signal
11 L-GN/BK 5452 Endgate Key Cylinder Down Signal
12 L-BU/BK 5453 Endgate Key Cylinder Up Signal
13 WH/BK 5445 Upper Left Endgate Latch Actuator
14 TN/BK 5446 Lower Left Endgate Latch Actuator
15 - - Not Used
16 D-GN 2269 Rear Window Motor Speed Signal
17 - - Not Used
18 BN/WH 2557 Endgate Window Regulator Up Signal
19 L-BU 2558 12-Volt Reference
20 D-BU/WH 5455 Endgate Drop Handle Switch Signal
21 YE/BK 5444 Endgate Module Courtesy Lamp
22 BN/WH 5449 Upper Right Endgate Ajar Switch Signal
23 YE 5456 Rear Window Motor Park Signal
24 PU/WH 5447 Lower Left Endgate Ajar Switch Signal
Endgate Swing Handle Switch Connector End View (XUV Only)

GM684972Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15366025
  • 2-Way F GT 150 Sealed 3.2 X 4.0 (GY)
Pin Wire Color Circuit No. Function
A - - Unavailable
B D-BU 2201 Endgate Ajar Switch Low Reference
C - - Unavailable
D D-GN/WH 5454 Endgate Swing Handle Switch Signal

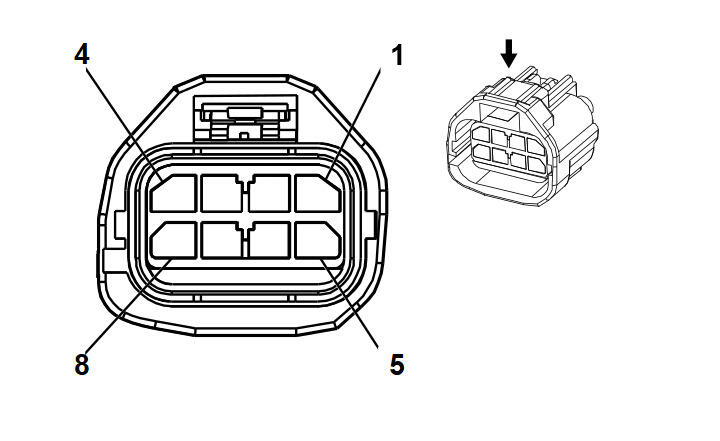

Endgate Window Regulator Connector End View (XUV Only)

GM1401778Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15401338
  • 8-Way F 2.8 Sealed (D-GY)
Pin Wire Color Circuit No. Function
1 BK 2559 Low Reference
2 L-BU 2558 12-Volt Reference
3 TN 5442 Endgate Window Regulator Up Signal
4 D-GN 5441 Endgate Window Regulator Down Signal
5 BN/WH 2557 Endgate Window Regulator Up Signal
6 BN 2556 Endgate Window Sensor Signal 1
7 OG 2540 Battery Positive Voltage
8 BK 1650 Ground
Glass Full Down Switch Connector End View (XUV Only)

GM635009Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • Part 12052641
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A D-BU 5601 Midgate Relay Coil Control
B YE 5602 Midgate Glass Position Switch
Liftgate Module (LGM) C1 Connector End View (Except XUV)

GM62450Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052856
  • 4-Way F Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A OG 3640 Battery Positive Voltage
B PU 293 Rear Defog Element Supply Voltage
C OG 2740 Battery Positive Voltage
D BK 1550 Ground
Liftgate Module (LGM) C2 Connector End View (Except XUV)

GM280793Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052444
  • 8-Way F Micro-Pack 100 Series (BK)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 L-BU 2288 Class 2 Serial Data
3 D-GN 2269 Rear Window Motor Speed Signal
4-5 - - Not Used
6 TN 294 Door Lock Actuator Unlock Control
7 - - Not Used
8 GY 295 Door Lock Actuator Lock Control
Liftgate Module (LGM) C3 Connector End View (Except XUV)

GM62467Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12066130
  • 9-Way F Micro-Pack 100 Series (WH)
Pin Wire Color Circuit No. Function
7 - - Not Used
8 D-GN 5512 Liftgate Open Switch Signal
9 L-BU 2200 Lift Glass Ajar Switch Low Reference
10 PU 2279 Lift Glass Ajar Switch Signal
11 D-BU 2201 Liftgate Ajar Switch Low Reference
12 PK/BK 1303 Liftgate Ajar Switch Signal
13-15 - - Not Used
Liftgate Latch Assembly C1 Connector End View (Except XUV)

GM684948Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15354716
  • 4-Way F GT 150 Sealed 3.2 x 4.0 (BK)
Pin Wire Color Circuit No. Function
A - - Not Used
B PK/BK 1303 Liftgate Ajar Switch Signal
C D-GN 5512 Liftgate Open Switch Signal
D D-BU 2201 Liftgate Ajar Switch Low Reference
Liftgate Latch Assembly C2 Connector End View (Except XUV)

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15300027
  • 2-Way F Metri-Pack 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A TN 294 Door Lock Actuator Unlock Control
B GY 295 Door Lock Actuator Lock Control
Lift Glass Ajar Switch Connector End View (Except XUV)

GM666646Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336024
  • 2-Way F GT 150 Sealed (BK)
Pin Wire Color Circuit No. Function
1 PU 2279 Lift Glass Ajar Switch Signal
2 L-BU 2200 Lift Glass Ajar Switch Low Reference
Midgate Glass Motor Connector End View (XUV Only)

GM1401778Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7283-5574-10
  • 8-Way F 2.8 SLD (D-GY)
Pin Wire Color Circuit No. Function
1 - - Not used
2 - - Not used
3 GY 5459 Midgate Ajar Switch Signal
4 BK 6252 Midgate Ajar Indicator Signal
5 TN 5458 Midgate Overhead Console Switch Up Signal
6 WH 5457 Midgate Overhead Console Switch Down Signal
7 OG 2440 Battery Positive Voltage
8 BK 1150 Ground
Midgate Latch Connector End View - Left (XUV Only)

GM647974Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326822
  • 5-Way F GT 150 Sealed 4.0 (BK)
Pin Wire Color Circuit No. Function
A D-BU 6252 Midgate Ajar Indicator Signal
B GY 5459 Midgate Ajar Switch Signal
C - - Not Used
D OG 3440 Battery Positive Voltage
E BK 1150 Ground
Midgate Latch Connector End View - Right (XUV Only)

GM647974Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326822
  • 5-Way F GT 150 Sealed 4.0 (BK)
Pin Wire Color Circuit No. Function
A GY 5459 Midgate Ajar Switch Signal
B BK 1150 Ground
C - - Not Used
D OG 3440 Battery Positive Voltage
E BK 1150 Ground
Midgate Latch Release Switch Connector End View (XUV Only)

GM1401780Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • Part 15324742
  • 2-Way F M/P 280 (GY)
Pin Wire Color Circuit No. Function
A YE 5602 Midgate Glass Position Switch
B BK 1150 Ground
Overhead Console Switch Assembly Connector End View (XUV Only)

GM744295Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12084944
  • 16-Way F Micro-Pack 100 Series (BK)
Pin Wire Color Circuit No. Function
A1 D-BU 1353 RAP Relay Control
A2 TN 5458 Midgate Overhead Console Switch Up Signal
A3 BN 100 Sunroof Switch Open Signal (CF5)
A4 BK 1350 Ground
A5 BN/WH 230 Instrument Panel Lamps Dimming Control
A6 D-BU 128 Sunroof Switch Low Reference (CF5)
A7 OG 110 Sunroof Switch Close Signal (CF5)
A8 WH 5457 Midgate Overhead Console Switch Down Signal
B1 L-BU 5436 Rear Moveable Roof Switch Close Signal
B2 YE 5439 Endgate Overhead Console Switch Up Signal
B3-B5 - - Not Used
B6 L-GN   Endgate Overhead Console Switch Up Signal
B7 D-BU 5435 Rear Moveable Roof Switch Open Signal
B8 GY/BK 1798 Low Reference
Quarterglass Actuator Connector End View - Left (Long Wheelbase Except XUV)

GM280768Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052832
  • 2-Way F GT 150 Sealed (BK)
Pin Wire Color Circuit No. Function
A D-BU 2573 Close Signal
B PU 2574 Open Signal
Quarterglass Actuator Connector End View - Right (Long Wheelbase Except XUV)

GM280768Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052832
  • 2-Way F GT 150 Sealed (BK)
Pin Wire Color Circuit No. Function
A D-BU 2575 Close Signal
B PU 2576 Open Signal
Quarterglass Switch Connector End View - Left (Long Wheelbase Except XUV)

GM333036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12191825
  • 8-Way F MP 280 Sealed (BN)
Pin Wire Color Circuit No. Function
A D-GN 801 RAP Fuse Supply Voltage
B BN/WH 230 Instrument Panel Lamps Dimming Control
C BK 1350 Ground
D BK 1150 Ground
E - - Not Used
F D-BU 2573 Close Signal
G PU 2574 Open Signal
H BLK 1150 Ground
Quarterglass Switch Connector End View - Right (Long Wheelbase Except XUV)

GM333036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12191825
  • 8-Way F MP 280 Sealed (BN)
Pin Wire Color Circuit No. Function
A D-GN 801 RAP Fuse Supply Voltage
B BN/WH 230 Instrument Panel Lamps Dimming Control
C BK 1350 Ground
D BK 1150 Ground
E - - Not Used
F D-BU 2575 Close Signal
G PU 2576 Open Signal
H BK 1150 Ground
